Assembly & Installation Instructions
A235
For Axis Pendant 13-6403 & 13-6403F Page 2 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 24159
8. Push the aircraft cable (I) through the bottom of the cable gripper (K). Do not pull the aircraft cable completely
through at this point.
9. Slip canopy pipe assembly (E) up to desired height while pulling the aircraft cable (I) through the cable gripper (K).
Measurement equals from ceiling to desired location of fixture bottom subtract 5 1/8”. (If total length equals 40”
subtract 5 1/8” from 40” and this is the measurement to set the canopy pipe assembly to).
10. Attach cable gripper assembly (G) to canopy pipe assembly (E) using 8-32 screw (F).
11. Pull excess aircraft cable (I) through cable gripper (K) until snug.
(continued)

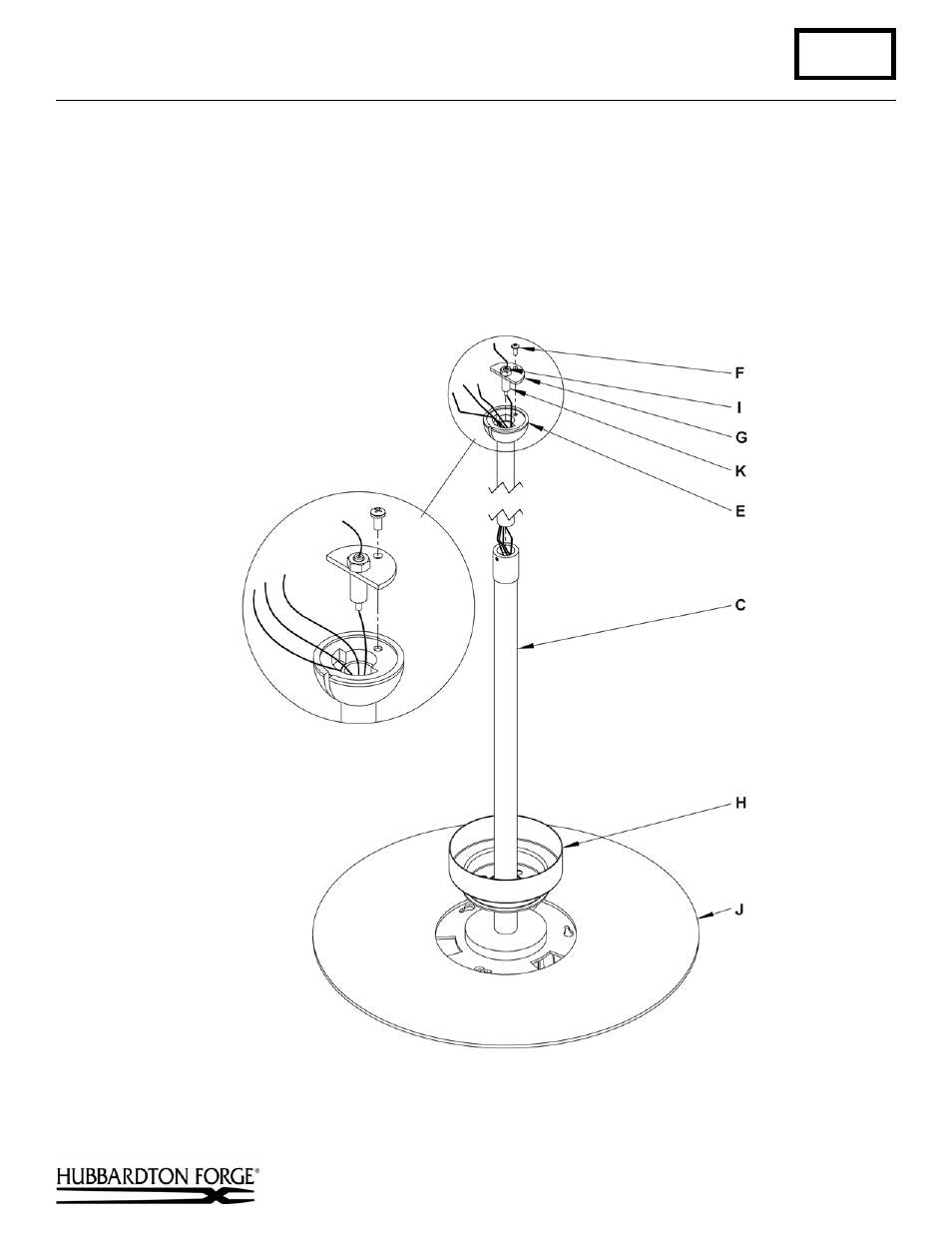

(Figure 3)
