Assembly & Installation Instructions
A250
Staccato Six Light Pendant 13-4901 Page 3 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 21041 Rev A

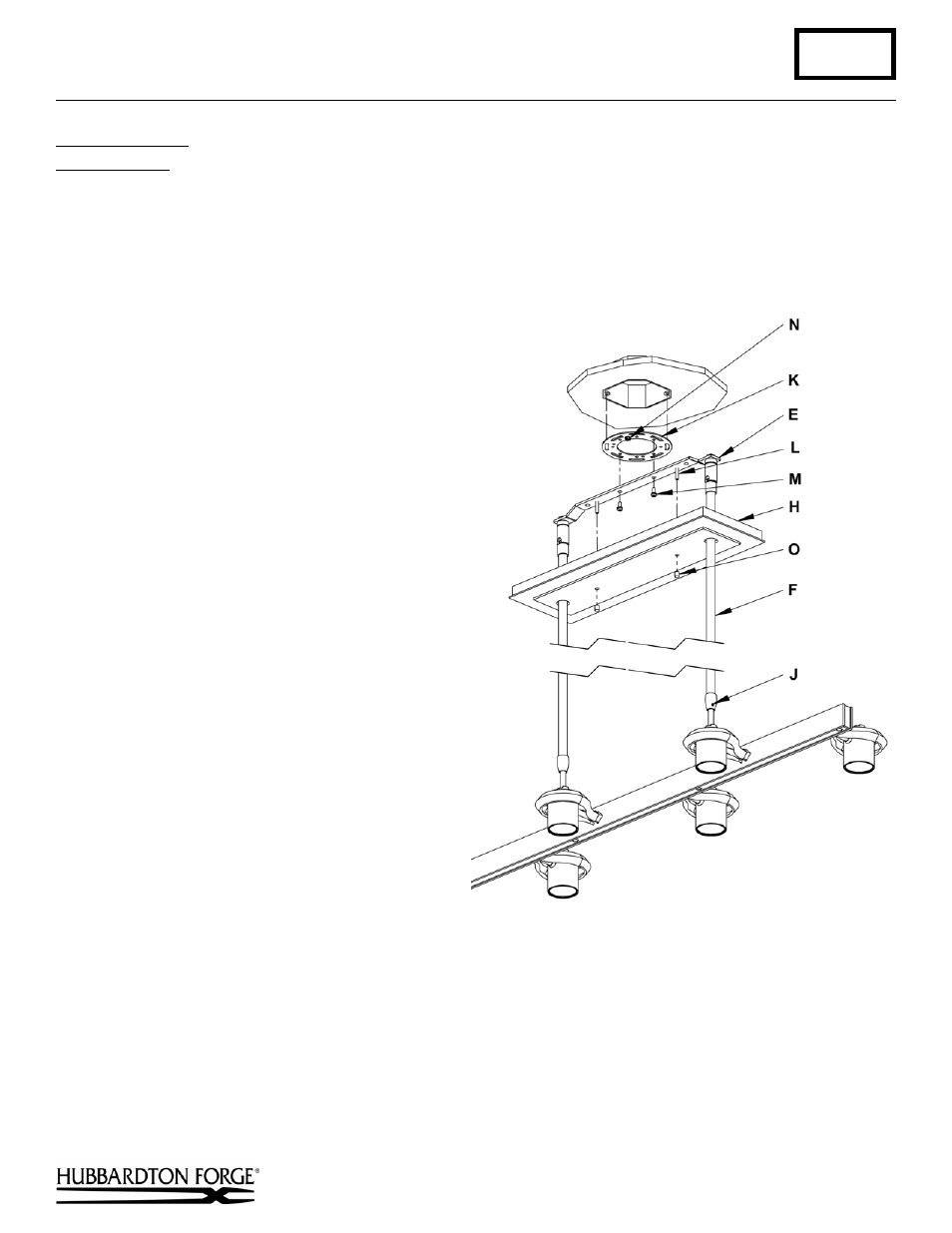

Install to Ceiling
(Figure 5)
Component Part
E Ceiling Bracket
H Canopy
J Set Screw (2)
K Crossbar
L Threaded Stud (2)
M 8-32 X 3/8” Screw (2)
N Ground
Screw
O Threaded Knobs
1. Using two machine screws (not provided)
fasten cross bar (K) to the electric box using
outer oval holes to orient fixture to desired
hanging position.
Note: A new electric box comes with screws.
When replacing an existing fixture, retain the
screws for use with the new fixture.
2. Raise fixture to ceiling aligning center holes in
ceiling bracket (E) with threaded holes in
crossbar (K) install two 8-32 x 3/8” screws
(M).
3. Using suitable wire connectors (not provided)
connect fixture wires to supply (white to white
and black to black).
4. Run a pigtail lead from crossbar ground screw
(N) to the junction box. Raise canopy and
connect all ground wires (bare copper or green
to bare copper or green).Push wires back into
outlet box.
Caution: Make sure wire
connectors are twisted on securely, and no
bare wire is exposed.
5. Slide fixture canopy (G) over threaded studs
(L) and push firmly to ceiling, making sure
that no wires are pinched between fixture
canopy and ceiling. Fasten with barrel knobs
(O). Be sure studs (L) are fully seated in barrel
knobs (O).
6. Once the fixture is fastened to the ceiling,
tighten the set screw (J) firmly with hex
wrench provided. Only after the set screw (J)
is tight should you install the glass. Be sure to
tighten set screws in both clutches.
7. Refer to instructions following to install glass.
(continued)
(Figure 5)
