Hubbardton Forge 134901 - Manual

Assembly & Installation Instructions
A250
Staccato Six Light Pendant 13-4901 Page 1 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 21041 Rev A
Attach Fixture Pipes (Figure 1)
Component Parts
A Fixture Pipe (2)
B Fixture Coupling (2)
1. Carefully unpack the fixture from the carton.
2. Carefully thread fixture pipes (A), threaded end first,
over fixture wires.
3. Apply a drop of the supplied thread locking
compound to the internal threads of the fixture
couplings (B) and screw fixture pipes (A) into
fixture, being careful not to twist the wires.
Note: Application of the thread locking compound is
necessary to prevent the stem from loosening during
regular maintenance and cleaning of the fixture. Be
certain to apply the compound.
4. See instructions below to complete the installation.
Assemble Canopy Pipes to Ceiling Bracket (Figure 2)
Component Parts
C Hex Nipple (2)
D Lock
Washer (2)
E Ceiling Bracket
F Canopy Pipes (2)
1. Insert threaded end of hex nipple (C) down through lock
washer (D), ceiling bracket (E) and into swivel at the end of
canopy pipe (F).
2. Tighten securely being sure the notches in the swivels are
aligned.
Note: If installing on a sloped ceiling, make certain that the
notches in the swivel portion of the stems are oriented toward
the lower side of the slope.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

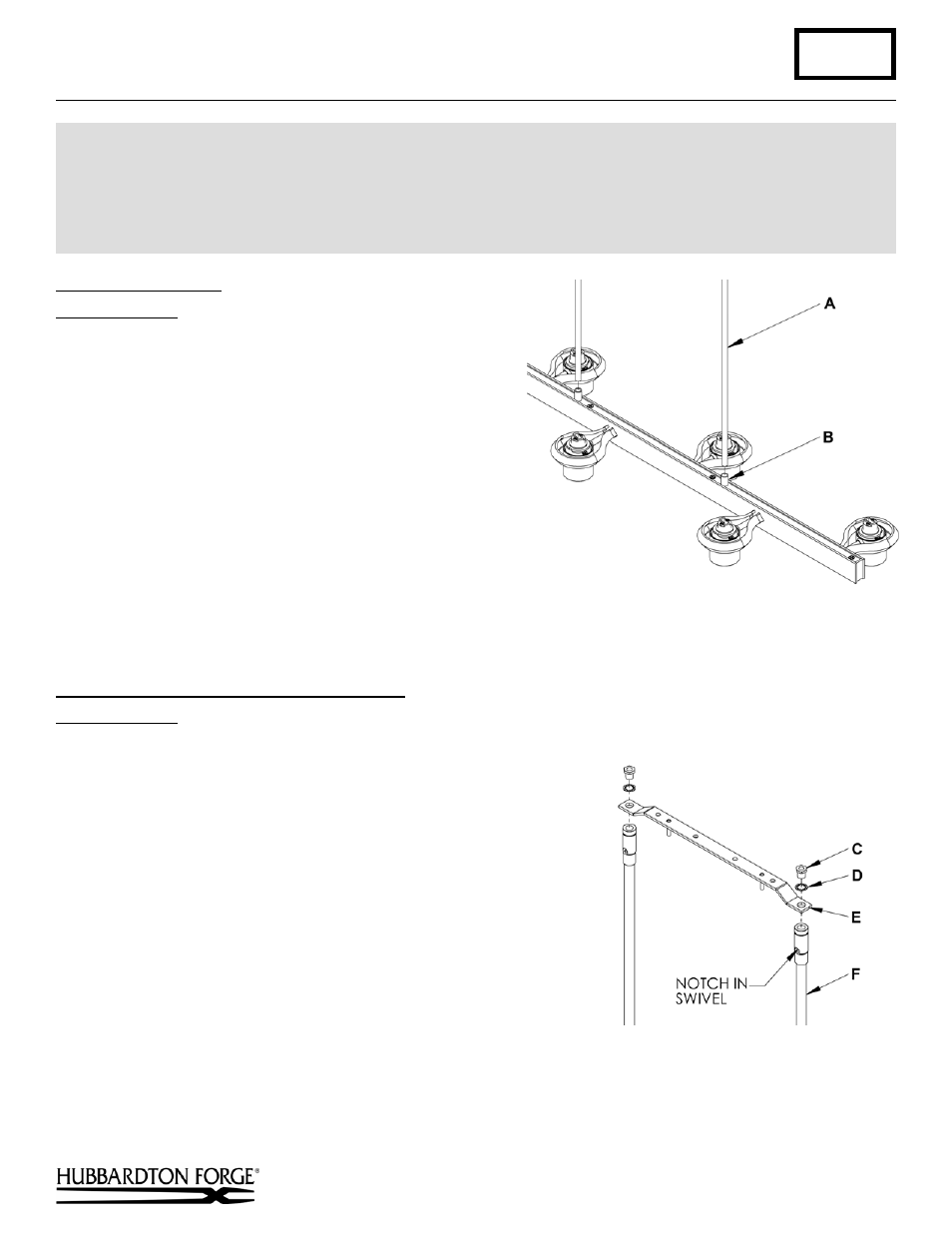

(Figure 1)
(Figure 2)
