Assembly & Installation Instructions
A250
Staccato Six Light Pendant 13-4901 Page 2 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 21041 Rev A

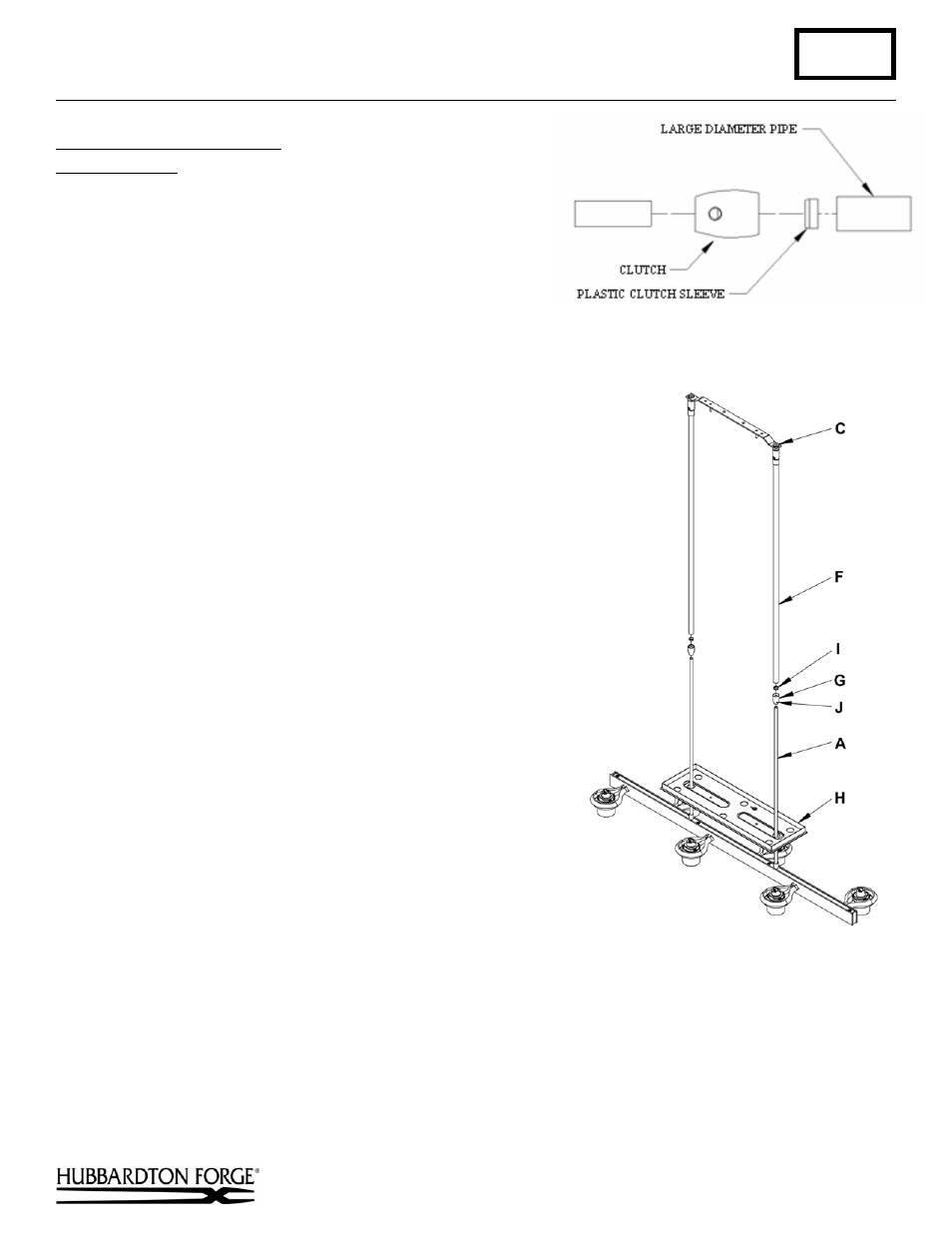

Complete Fixture Assembly (Figures 3 & 4)
Component Parts
A Fixture Pipe (2)
C Hex
Nipple
F Canopy Pipe (2)
G Clutch
(2)
H Canopy
I
Plastic Clutch Sleeve (2)
J Set Screw (2)
Caution: Be sure power is off at the main breaker box prior to
installation.
1. Thread wires from the fixture pipes (A) through canopy (H).
Slide canopy (H) down fixture pipes (A) until it rests on top
of fixture.
2. Thread the wires from the fixture pipe (A) into and through
the canopy pipe (F) up through the hex nipple (C).
3. Unscrew the clutch (G) from the canopy pipe (F); slide it
across the wires and onto the fixture pipe (A). Follow this
with the plastic clutch sleeve (I), oriented so the tapered end
of the clutch sleeve nests in the clutch. Repeat for both pipes.
(Figure 3).
4. Slide the canopy pipe (F) as far as necessary to give you the
total length of the fixture which you desire. Be careful not to
scratch the pipe surfaces and to pull excess wire up through
the canopy pipe (F). Screw clutch (G) onto canopy pipe (F).
There must be a minimum 1-1/2" of inner pipe inside the
outer pipe. Hand-tighten the clutch to temporarily hold this
adjustment. The clutch is not securely fastened at this point;
do not depend on it to hold the fixture. Repeat for both pipes.
Important: To ensure full connection strength, be sure the
tapered end of the plastic clutch sleeve is oriented toward the
clutch when assembled and securely tighten set screw
(Figure 3).
5. Continue with Ceiling Installation.
(continued)
(Figure 4)
(Figure 3)
