Chapter 3: Microsoft Windows 2000, 2003, and XP

88

3. Select Device Manager.

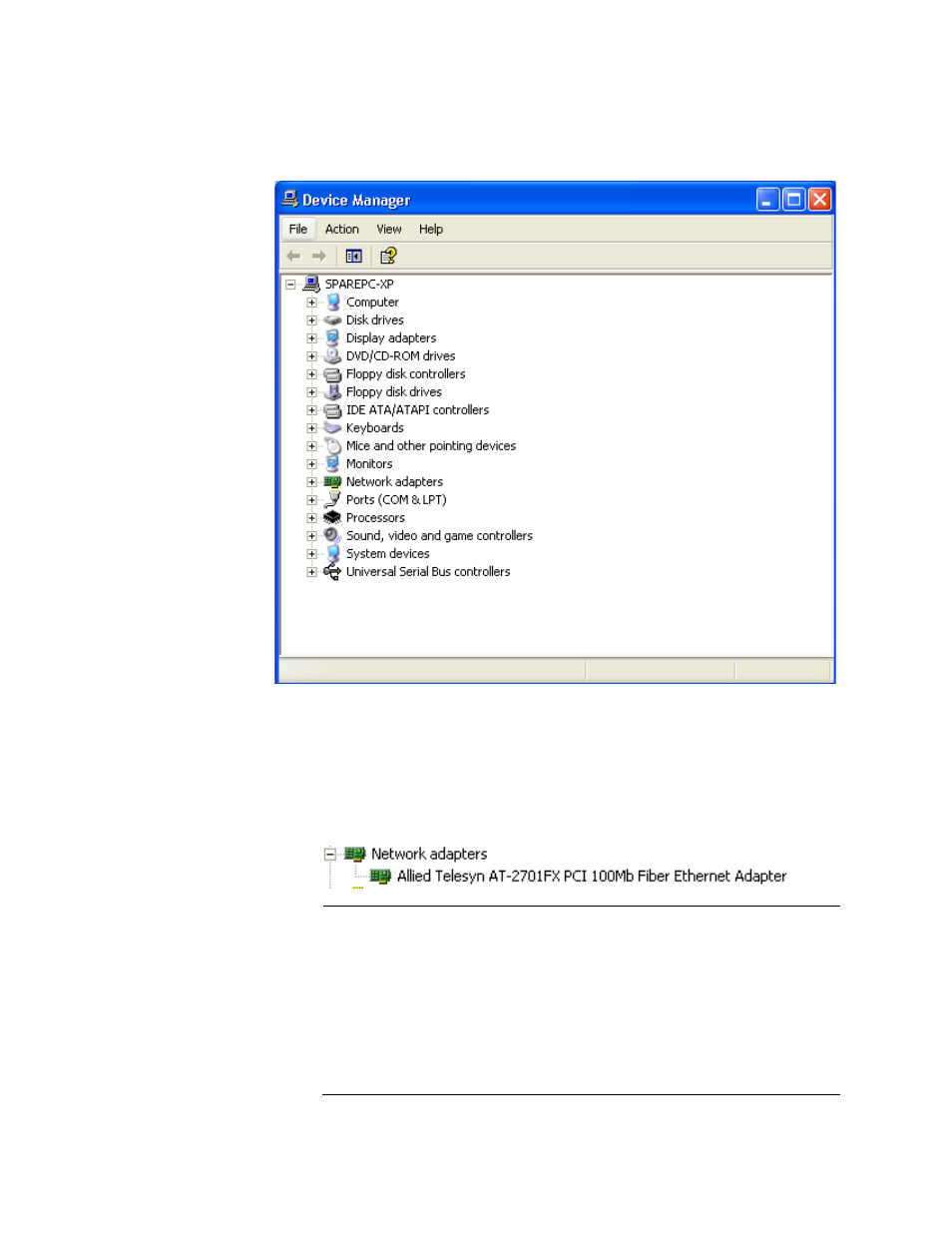

The Device Manager window is shown in Figure 48.

Figure 48. Device Manager Window

4. Expand Network adapters by either double-clicking on it or by clicking

once on the expansion box next to it. The adapter drivers installed on
the switch are listed under Network adapters. An example is shown
here.

Note

The branch under Network Adapters will include VLANs if VIDs were
added to the adapter with the AT-MUX protocol. The VLANs are
labelled “Allied Telesyn VLAN-Tagging miniport Driver.” In the next
step you must choose the selection for the network adapter card and
not one of the VLANs. The adapter card selection has the adapter’s
model number in the label. For instructions on how to remove a VID
from the card, refer to “Adding, Changing, or Deleting VIDs” on
page 168.
