Network Adapter Card Installation Guide

53

5. To use the Wake on LAN feature in a PCI 2.1-compatible system,

connect one end of the Wake on LAN cable included with the network
adapter card to the Wake on LAN connector on the card, as shown in
Figure 7. If you are installing the card in a PCI 2.2-compliant system or
do not intend to use this feature, skip this step. For background
information on this feature, refer to “Wake on LAN” on page 35.

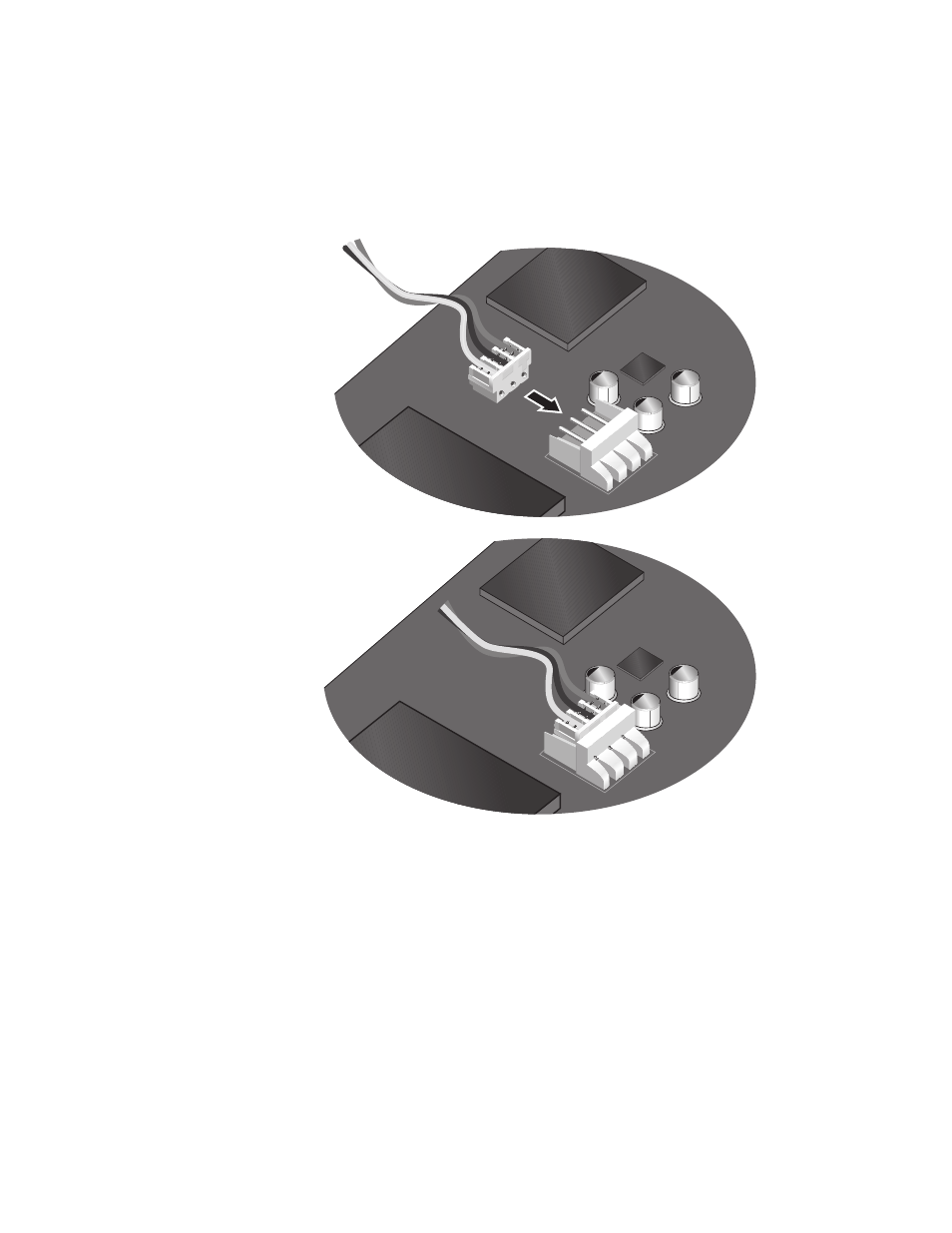

Figure 7. Connecting the Wake on LAN Cable to the Adapter Card
