Chapter 9: File Downloads and Uploads
114
Note
There are two different image files used with the Converteon
products, the image file used for the chassis is “ATS70.img” and the
image file used for the line cards is “ATS73.img”.
4. In the Protocol field, select the transfer protocol as either Xmodem or
1K Xmodem for a faster download.
9. Click Send.
The software immediately begins downloading onto the chassis. The
Xmodem File Send window, as shown in Figure 44, displays the
current status of the software download. The download process takes
several minutes to complete.

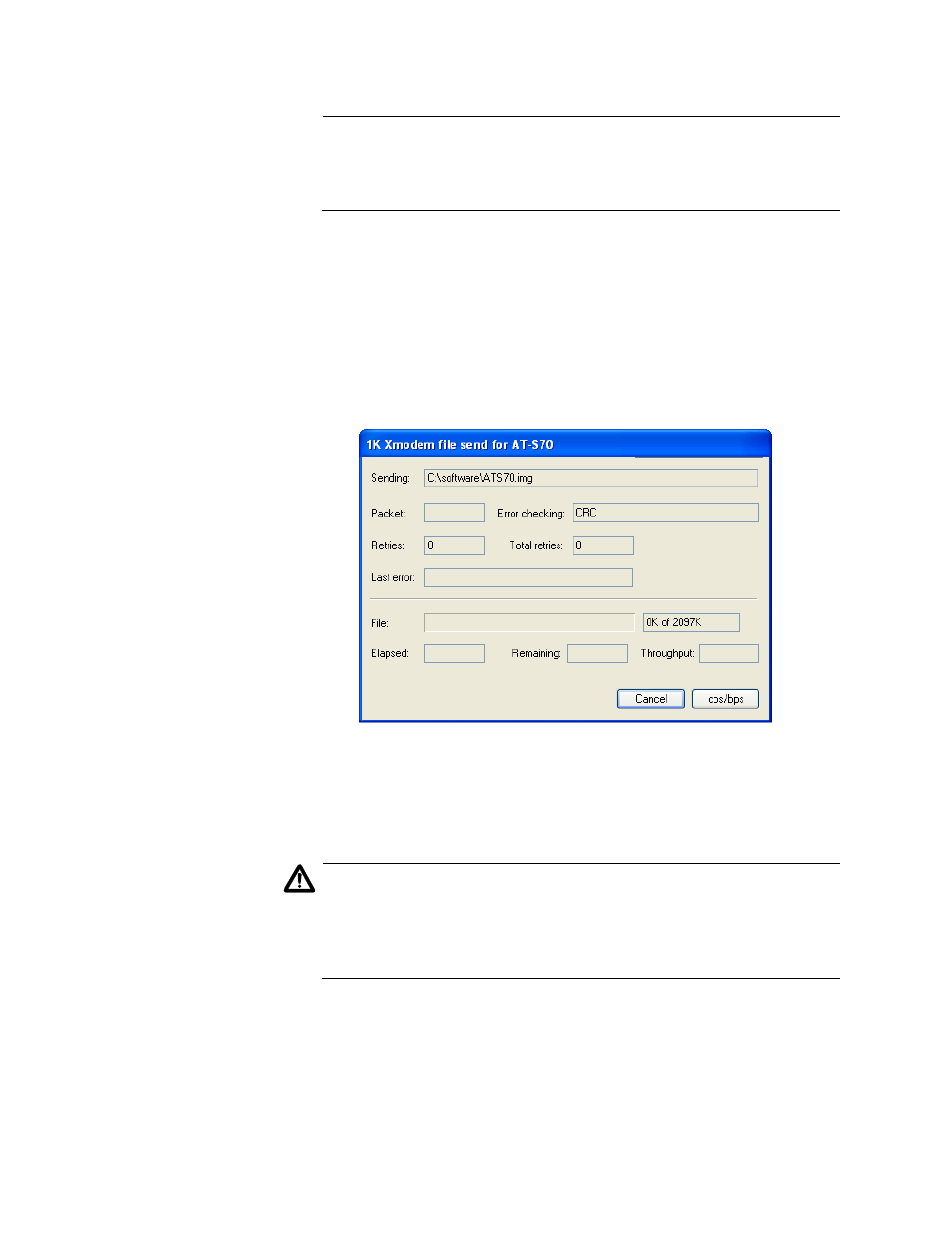

Figure 44. Xmodem File Send Window
The download begins. If you are downloading a configuration file, the
chassis automatically resets once the download is complete. Some
network traffic may be lost during the system reset.
Caution
When downloading a chassis image file, the chassis must initialize it
by decompressing it and writing it to FLASH. This requires several
minutes to complete. Do not reset or power off the unit while it is
decompressing the file.
