Chapter 2: Configuring Teaming

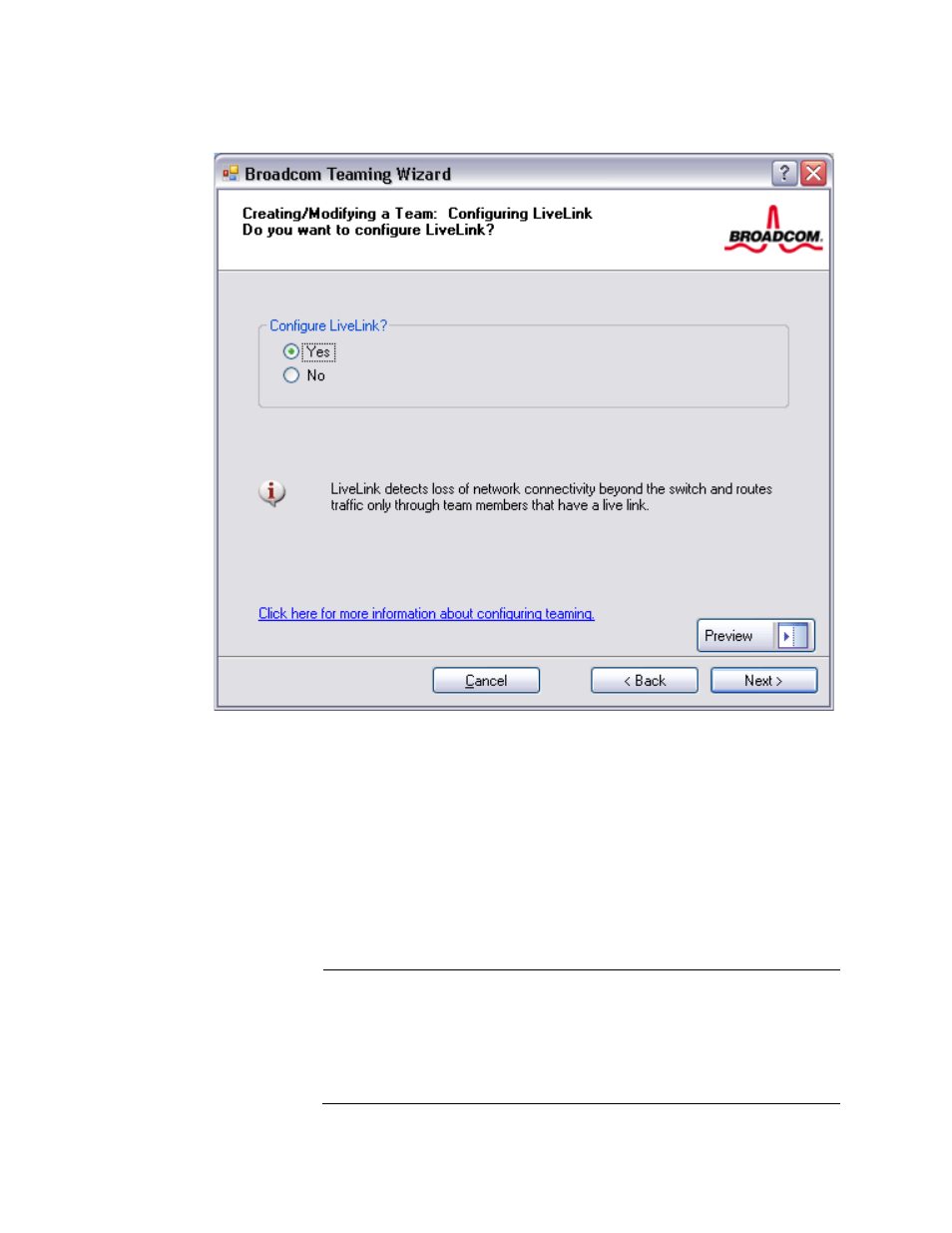

Figure 20. Creating/Modifying a Team: Configuring LiveLink Page

13. Select the probe interval (the number of seconds between each

retransmission of a link packet to the probe target) and the maximum
number of probe retries (the number of consecutively missed
responses from a probe target before a failover is triggered).

14. Set the Probe VLAN ID to allow for connectivity with probe targets

residing on a tagged VLAN. The number set must match the VLAN ID
of the probe targets as well as the port(s) on the switch to which the
team is connected.

Note

Each LiveLink enabled team can only communicate with Probe
Targets on a single VLAN. Also, VLAN ID 0 is equivalent to an
untagged network. If the Probe VLAN ID is set to a value other than
0, then you must create a VLAN with an identical VLAN tag value
(see step 20).
