AT-S94 Management Software Web Browser Interface User’s Guide
2. Click the Modify button. The ACL Binding Configuration opens:

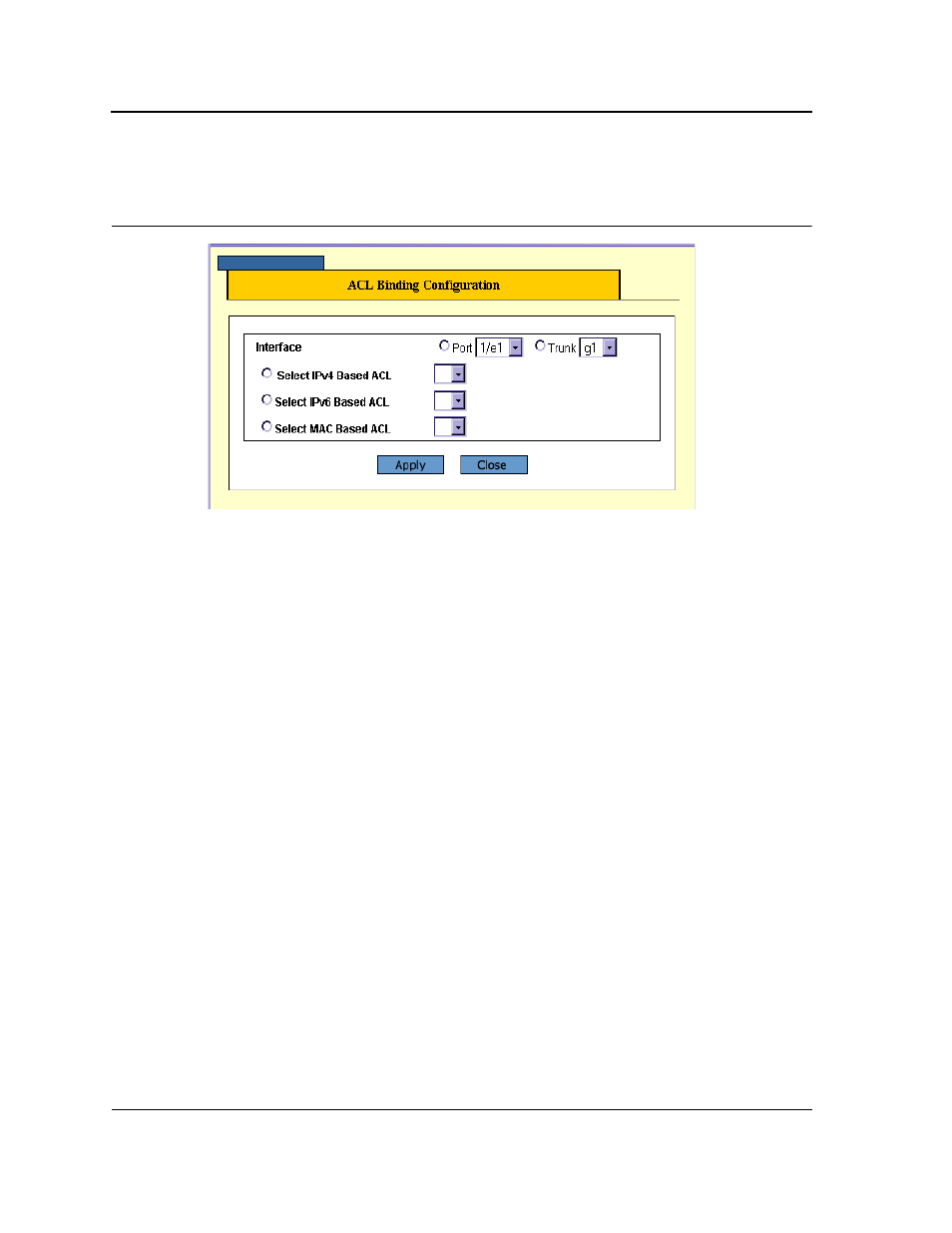

Figure 53: ACL Binding Configuration
The ACL Binding Configuration contains the following fields:
• Interface — Choose the interface to which the ACL is bound. The possible values are:
– Port — Port associated with the ACL.
– Trunk — Trunk associated with the ACL.
• Select IPv4 Based ACL, IPv6 Based ACL or MAC Based ACL — Choose the ACL that is bound to the
interface.
3. Define the fields.
4. Click Apply. ACL binding is defined, and the device is updated.
5. Click Save Config on the menu to save the changes permanently.
