Viewing Statistics
Managing RMON Statistics
Page 231
–
Absolute — Compares the values directly with the thresholds at the end of the sampling interval.
•
Rising Threshold — Displays the rising counter value that triggers the rising threshold alarm.
•
Rising Event — Displays the event that triggers the specific alarm. The possible field values are user-
defined RMON events.
•
Falling Threshold — Displays the falling counter value that triggers the falling threshold alarm.
•
Falling Event — Displays the event that triggers the specific alarm. The possible field values are user-
defined RMON events.
•
Startup Alarm — Displays the trigger that activates the alarm generation. Rising is defined by crossing the
threshold from a low-value threshold to a higher-value threshold.
•
Interval (sec) — Defines the alarm interval time in seconds.
•
Owner — Displays the device or user that defined the alarm.
2.
Click Add. The Add Alarm Page opens:

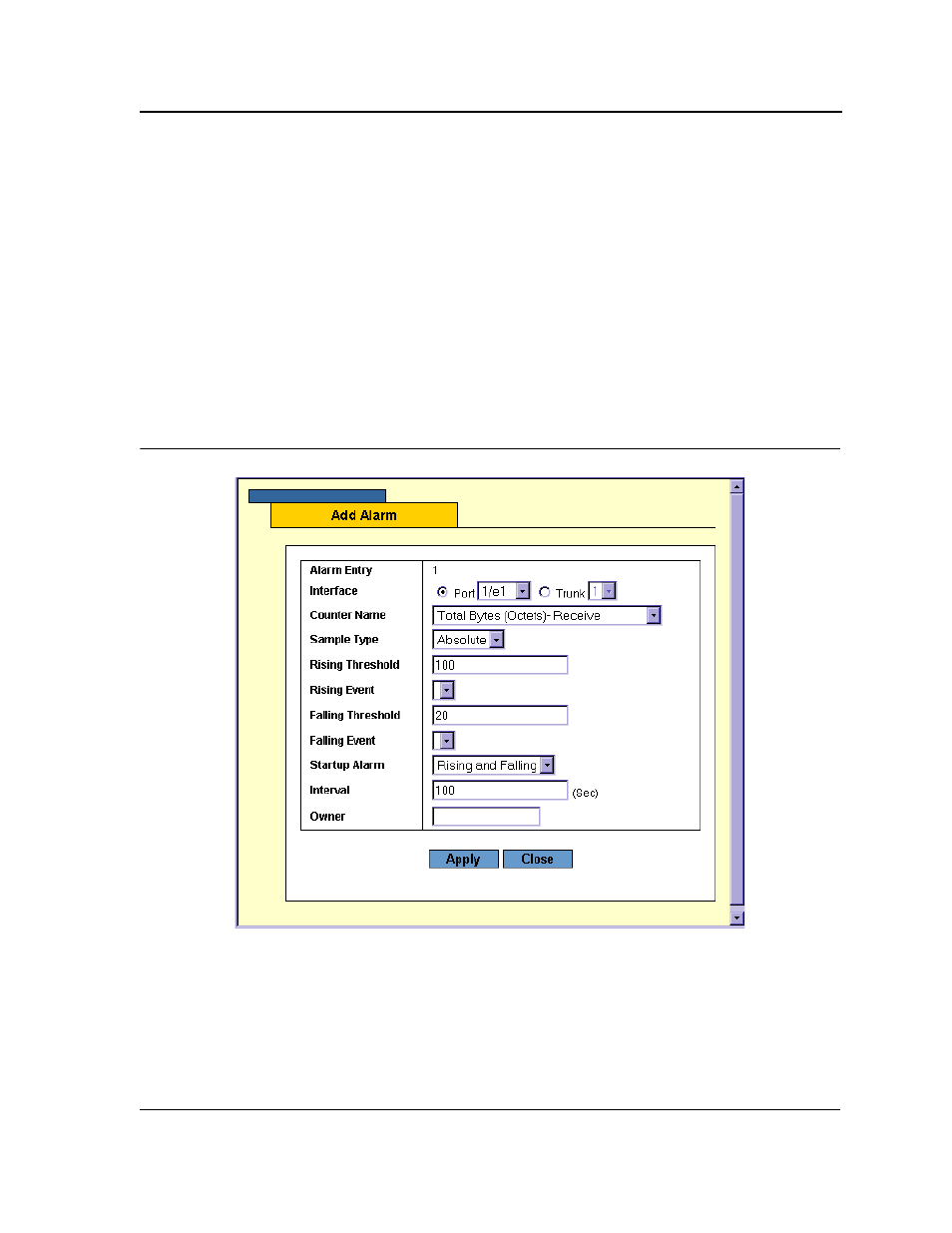

Figure 162:Add Alarm Page
3.
Define the Interface, Counter Name, Sample Type, Rising Threshold, Rising Event, Falling Threshold, Falling
Event, Startup Alarm, Interval, and Owner fields.
4.
Click Apply. The RMON alarm is added, and the device is updated.
To modify RMON alarms:
1.
Click Statistics > RMON Alarm. The RMON Alarm Page opens.
2.
Click Modify. The Alarm Configuration Page opens:
