Configuring Services
Page 204
Mapping DSCP Values to Queues
The Configure DSCP Page contains fields for classifying DSCP settings to traffic queues. For example, a packet
with a DSCP tag value of 3 can be assigned to queue 2.
To set DSCP to queues:
1. Click Services > Queuing & Scheduling. The CoS Queuing & Scheduling Page opens:
2. In the Configure Priority to Egress Queues section, select Configure DSCP.
3. Click Configure. The Configure DSCP Page opens:

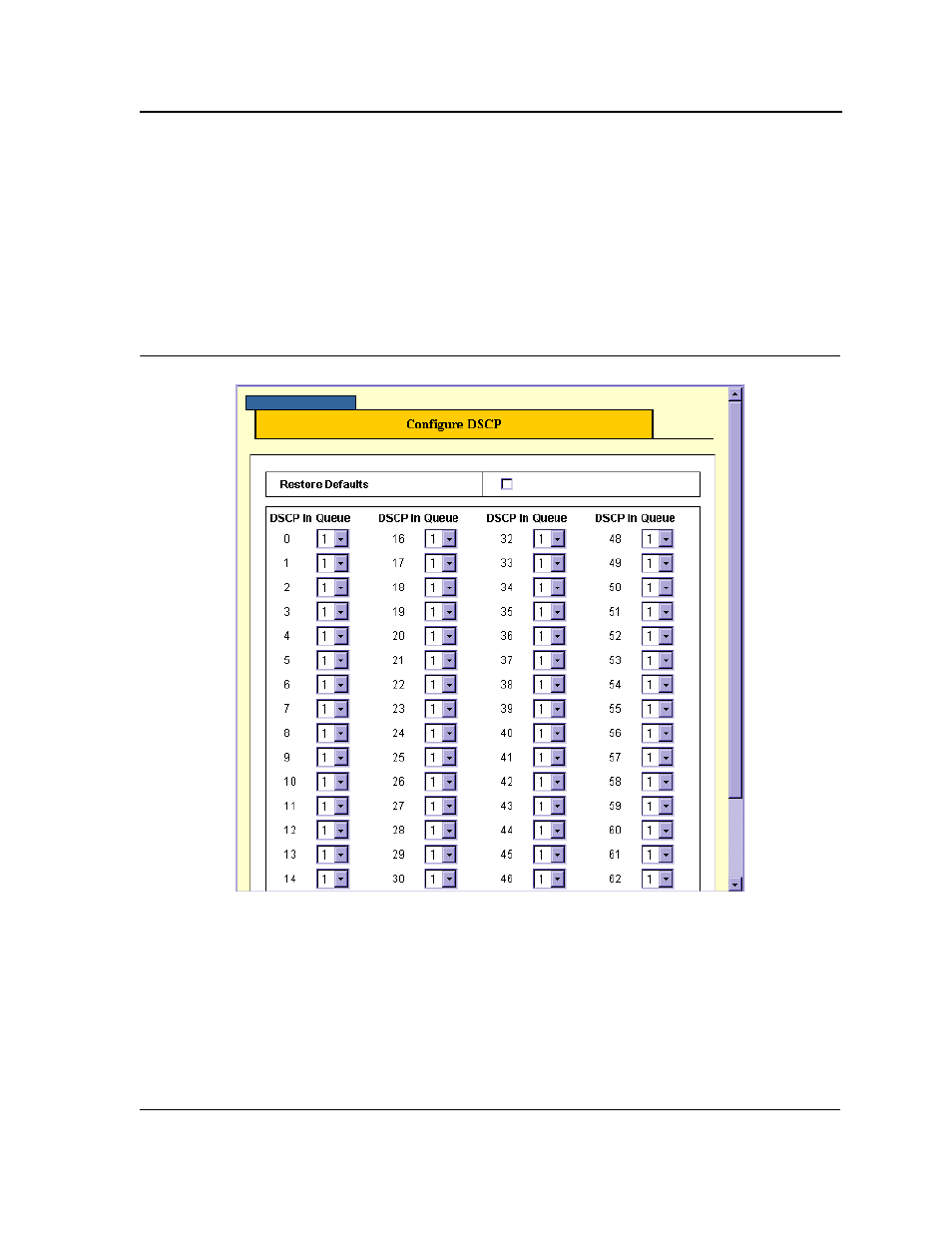

Figure 142:Configure DSCP Page
The Configure DSCP Page contains the following fields:
• Restore Defaults — Restores the device factory defaults for mapping DSCP values to a forwarding queue.
• DSCP In — Displays the incoming packet’s DSCP value.
• Queue — Defines the traffic forwarding queue to which the DSCP priority is mapped. Four traffic priority
queues are supported.
4. Modify the Queue values.
5. Click Apply. The DSCP to Queue mapping is updated.
6. Click Save Config on the menu to save the changes permanently.
