Defining Power Over Ethernet Configuration
To modify PoE port settings:
1. In the Power Over Ethernet Page Zoom View, click the port(s) to modify. The port indication changes to Port
is selected.
2. Click Modify. The Power Over Ethernet Configuration Page opens:

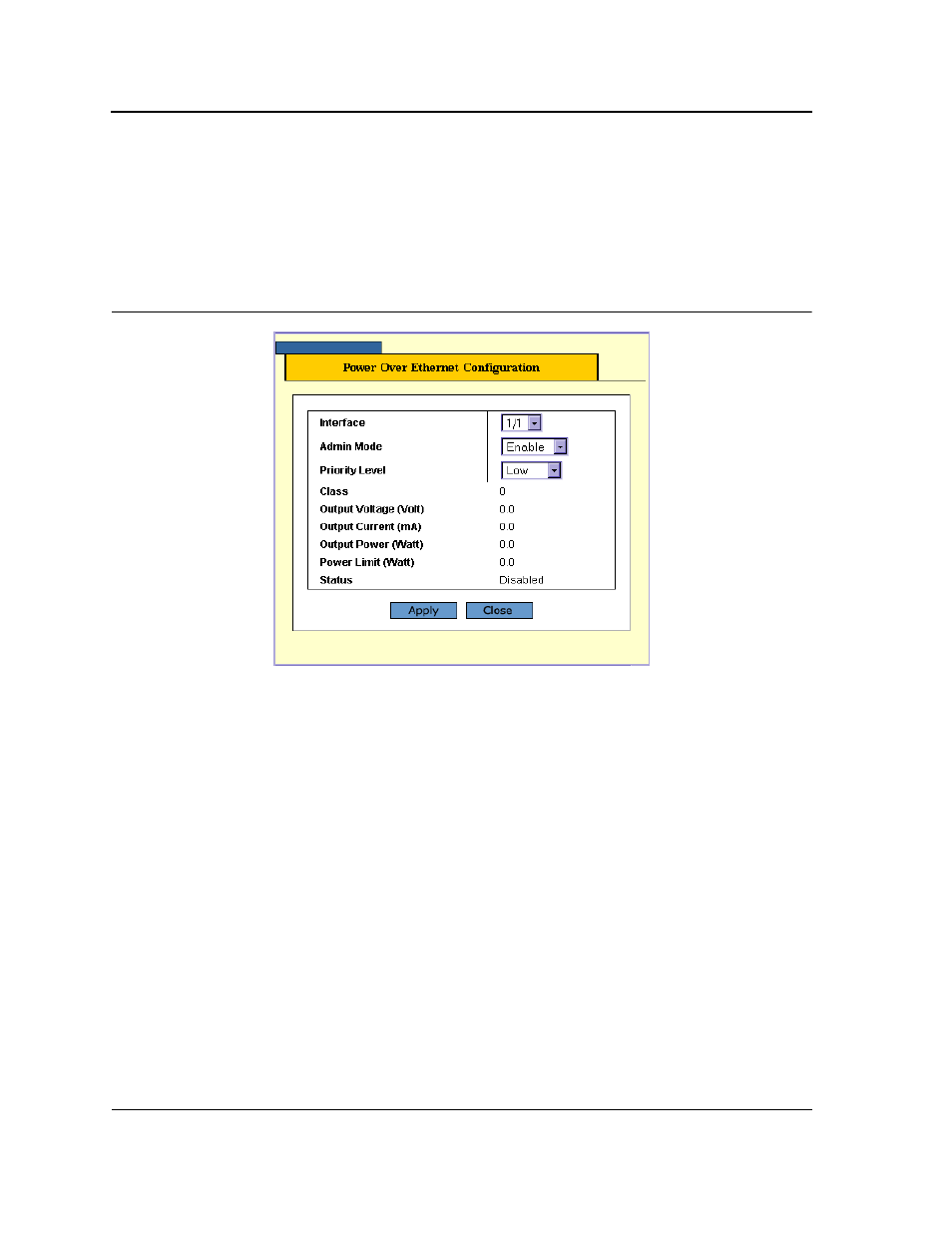

Figure 137:Power Over Ethernet Configuration Page
The Power Over Ethernet Configuration Page displays the currently configured PoE ports and contains the
following information:
• Interface — Displays the selected port’s number.
• Admin Mode — Indicates whether PoE is enabled or disabled on the port. The possible values are:
– Enable — Enables PoE on the port. This is the default setting.
– Disable — Disables PoE on the port.
• Priority Level — Indicates the PoE ports’ priority. The possible values are: Critical, High and Low. The
default is Low.
• Class — Indicates the power class, the IEEE 802.3af class of the device.
• Output Voltage (Volt) — The voltage delivered to the powered device.
• Output Current (mA) — The current drawn by the powered device.
• Output Power (Watt) — Indicates the power being supplied to the device, in Watts.
• Power Limit (Watt) — Indicates the maximum amount of power allowed by the port for the device. The
default is 15400 milliwatts (15.4 W), and the range is 3000 -15400 milliwatts.
• Status — Indicates the state of a PoE-enabled port. The possible field values are:
– On — Indicates the device is delivering power to the interface.
– Off — Indicates the device is not delivering power to the interface.
– Searching — Indicates that the device is currently searching for a powered device. Searching is the
default PoE operational status.
