Configuring Device Security
Defining Access Control
Page 91
Defining ACL Binding
When an ACL is bound to an interface, all the ACE rules that have been defined are applied to the selected interface.
Whenever an ACL is assigned on an interface, flows from that ingress interface that do not match the ACL are
matched to the default rule, which is Drop unmatched packets.
1. Click Network Security > ACL Binding. The ACL Binding Page opens:

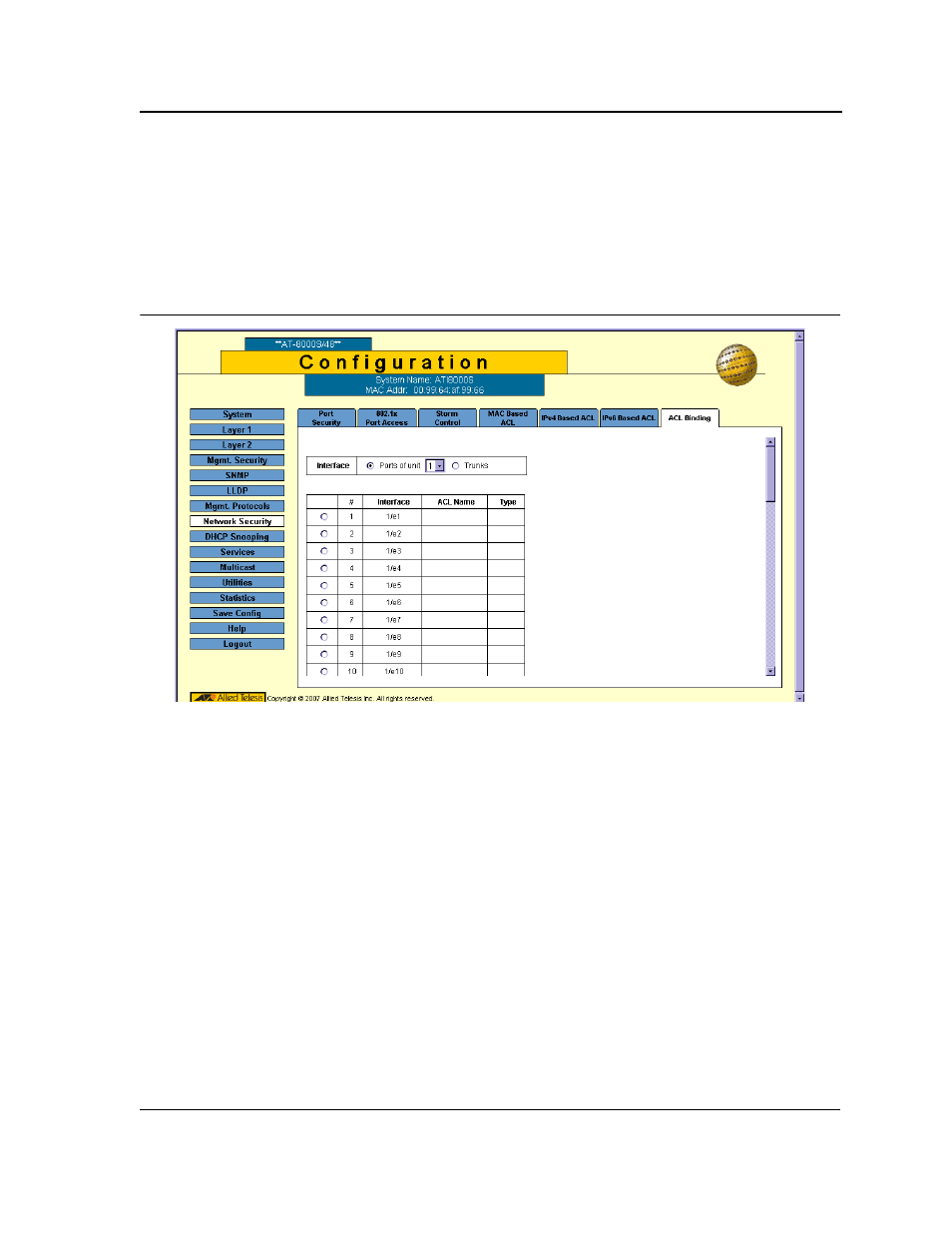

Figure 52: ACL Binding Page
The ACL Binding Page contains the following fields:
• Interface — Indicates the interface to which the ACL is bound. The possible values are:
– Unit — Stacking member and port associated with the ACL.
– Trunk — Trunk associated with the ACL.
For each entry, an interface has a bound ACL.
• Interface — Indicates the interface associated with the ACL.
• ACL Name — Indicates the ACL that is bound to the interface.
• Type — Indicates the type of access control:
– MAC-based ACL
– IPv4-based ACL
– IPv6-based ACL
