Defining GVRP
The GVRP Page enables users to configure GARP VLAN Registration Protocol (GVRP) on the device. GVRP is
specifically provided for automatic distribution of VLAN membership information among VLAN-aware bridges.
GVRP allows VLAN-aware bridges to automatically learn VLANs to bridge ports mapping, without having to
individually configure each bridge and register VLAN membership.
In the GVRP Page, users can do the following tasks:
• Configuring GVRP
• Enabling/Disabling GVRP on a Port
The settings for the three GVRP timers must be the same on all GVRP-active devices in your network. This is
configurable only in the CLI, using the config-if garp timer command.
Configuring GVRP
To define GVRP on the device:
1. Click Layer 2 > GVRP. The GVRP Page opens:

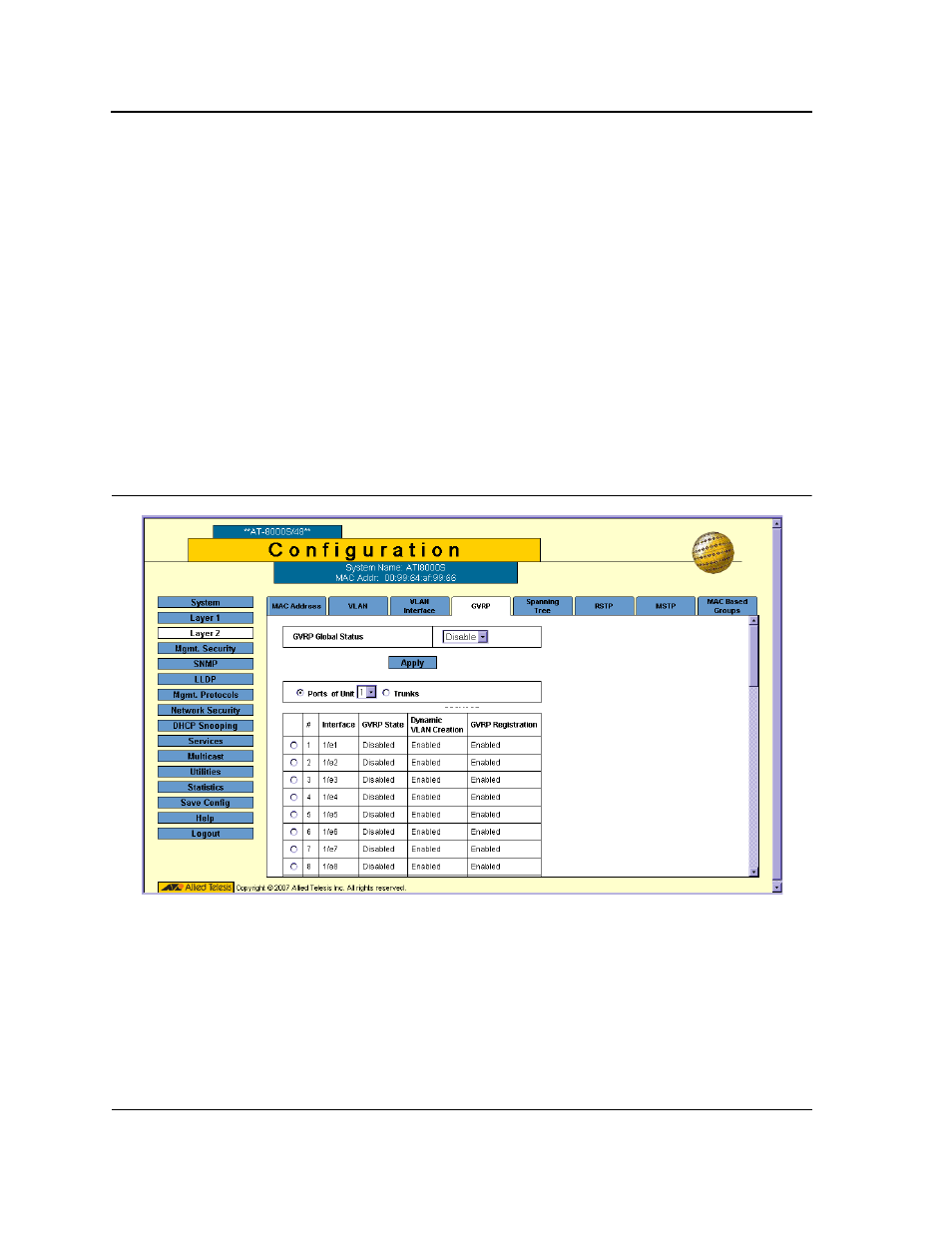

Figure 79: GVRP Page
The GVRP Page contains the following fields:
• GVRP Global Status — Indicates if GVRP is enabled on the device. The possible field values are:
– Enable — Enables GVRP on the selected device.
– Disable — Disables GVRP on the selected device. This is the default value.
• Select the interfaces displayed in the table.
– Ports of Unit — Specifies the port and stacking member for which the GVRP settings are displayed.
