AT-TQ3600 Wireless Access Point Installation Guide
59
LAN Port

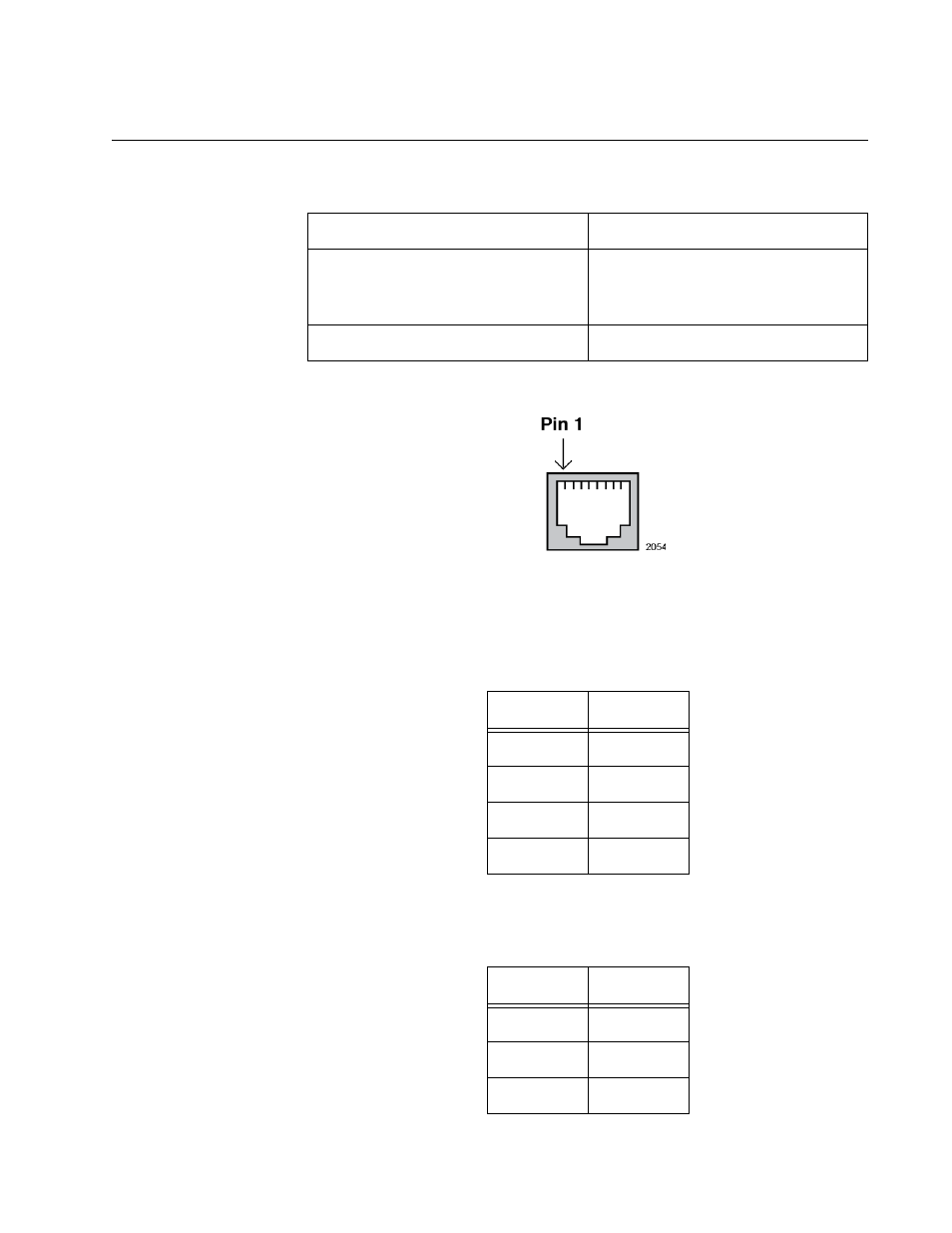

Figure 28 illustrates the pin layout of the LAN port.
Figure 28. Pin Numbers for the RJ-45 Connector on the LAN Port
Table 9 lists the pin signals when the port is operating in the MDI
configuration at 10 or 100 Mbps.
Table 10 lists the pin signals for the MDI-X configuration at 10 or 100
Mbps.
Table 8. LAN Port Specifications
Connector RJ-45
Standards IEEE 802.3 (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.3ab (1000Base-T)
PoE standard IEEE 802.3af (class 3)
Table 9. MDI Pin Signals (10Base-T or 100Base-TX)
Pin Signal
1 TX+
2 TX-
3 RX+
6 RX-
Table 10. MDI-X Pin Signals (10Base-T or 100Base-TX)
Pin Signal
1 RX+
2 RX-
3 TX+
