Installing the Access Point on a Table

To install the access point on a table, perform the following procedure:

1. Place the access point upside down on the table or desk selected for

the device.

2. Install the rubber feet that come with the wireless access point to the

bottom panel. Refer to Figure 3.

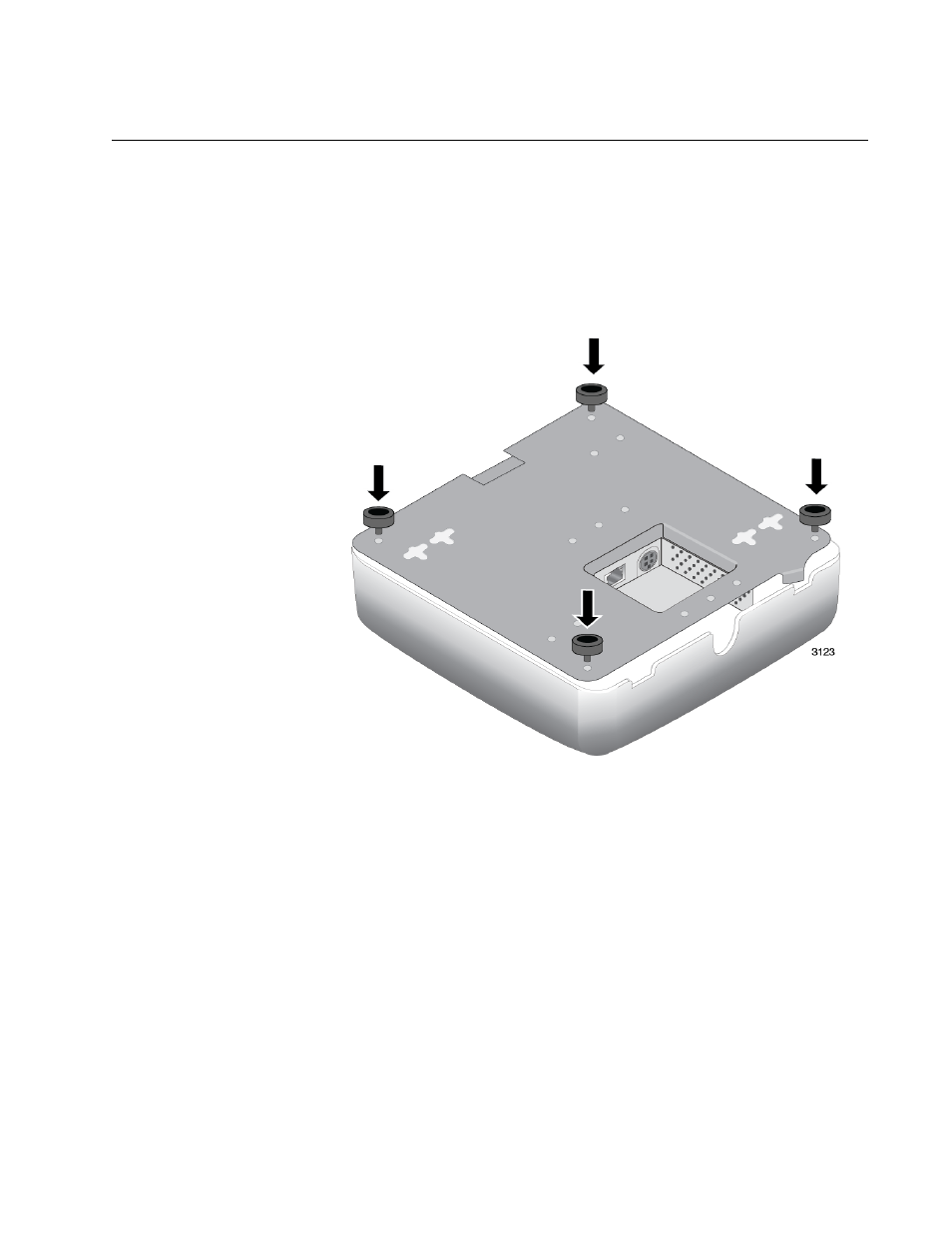

Figure 3. Installing the Rubber Feet

3. Route a network cable through the notch in the cover and under the

bottom panel, and connect it to the LAN port on the access point. Refer
to Figure 4 on page 30. The specifications of the cable are listed in
Table 2 on page 22.
