Chapter 2: Installing the Access Point
52
Starting the
Initial
Management
Session with a
Direct
Connection
To start the management session with a direct Ethernet connection
between your computer and the access point, perform the following
procedure:
Note
If the unit is using PoE for power and you did not order an AC/DC
adapter with the unit, you cannot perform this procedure because it
requires removing the network cable from the LAN port. Instead,
perform one of the other procedures in this section to start the initial
management session.
1. Connect one end of a network cable to the LAN port on the access
point and the other end to the Ethernet network port on your computer.
(This requires removing the network cable that you connected to the
LAN port earlier in these instructions.)
2. Change the IP address on your computer to 192.168.1.n, where n is a
number from 1 to 254, but not 230. Refer to the documentation that
accompanies your computer for instructions on how to set the IP
address.
3. Set the subnet mask on your computer to 255.255.255.0.
4. Power on the access point.
5. Start the web browser on your computer.
6. Enter the IP address 192.168.1.230 in the URL field of the browser.
You should now see the logon window, shown in Figure 26.

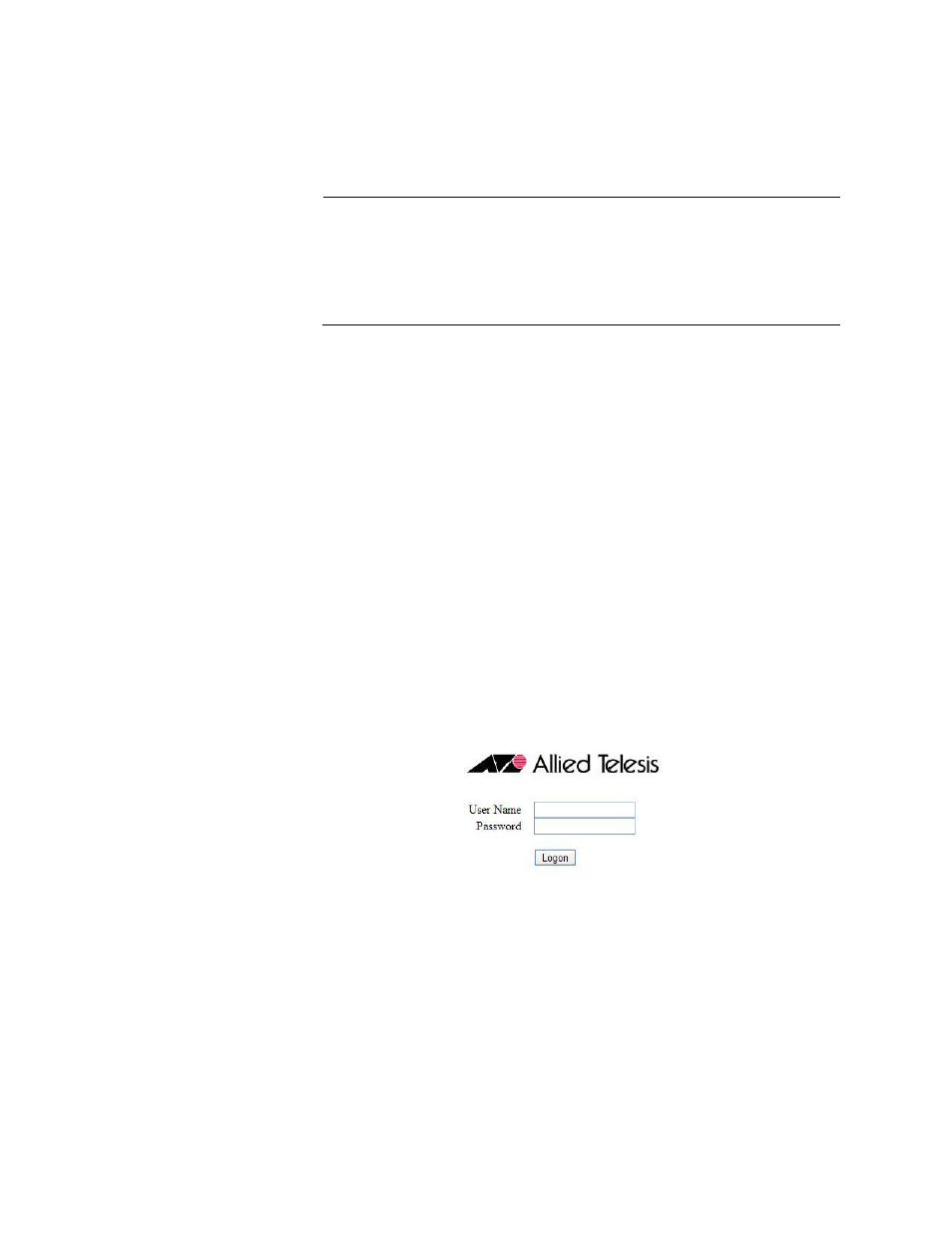

Figure 26. Logon Window
7. Enter “manager” for the username and “friend” for the password. The
username and password are case-sensitive.
