AT-TQ3600 Wireless Access Point Installation Guide
33
Installing the Access Point on a Wall or Ceiling
This procedure contains the following sections.
 “Guidelines” on page 33
 “Removing the Bottom Panel from the Access Point” on page 37
 “Installing the Bottom Panel on a Wall or Ceiling” on page 40
 “Installing the Access Point on the Bottom Panel” on page 42
Guidelines
Please review the following guidelines before installing the access point on
a wall or ceiling:
 The selected location must not block the ventilation slot around the
base of the unit. Refer to Figure 8.

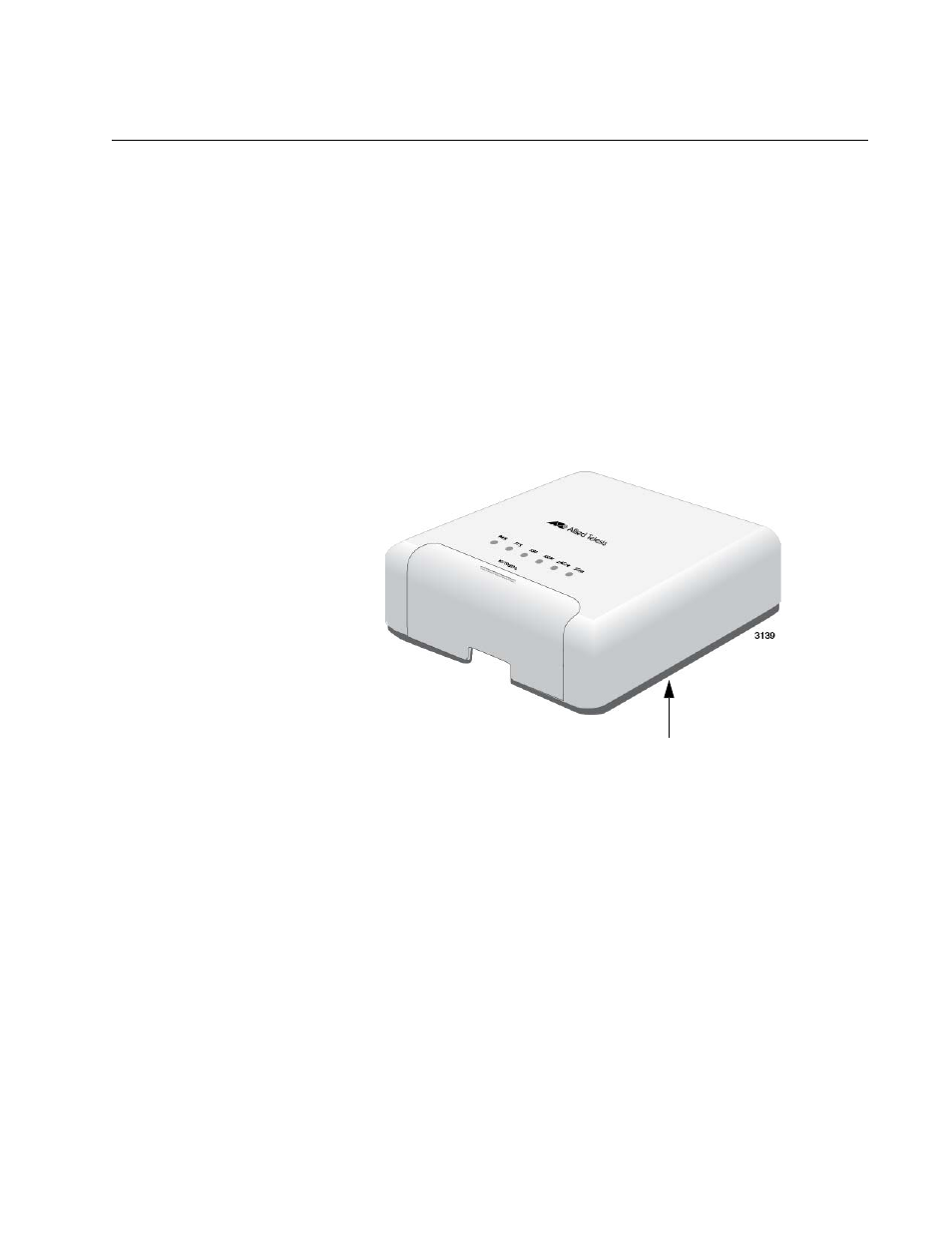

Figure 8. Ventilation Slot
 You should verify that the wall or ceiling material is strong enough
to support the weight of the access point.
 You have to provide the four screws and, if required for your
installation, the wall anchors that are to be used to secure the
bottom panel to the wall or ceiling.
 You may install the access point on a wall in the three orientations
shown in Figure 9 on page 34.
Ventilation Slot
