Allied Telesis AT-TQ3600 User Manual
Page 44
Chapter 2: Installing the Access Point
44

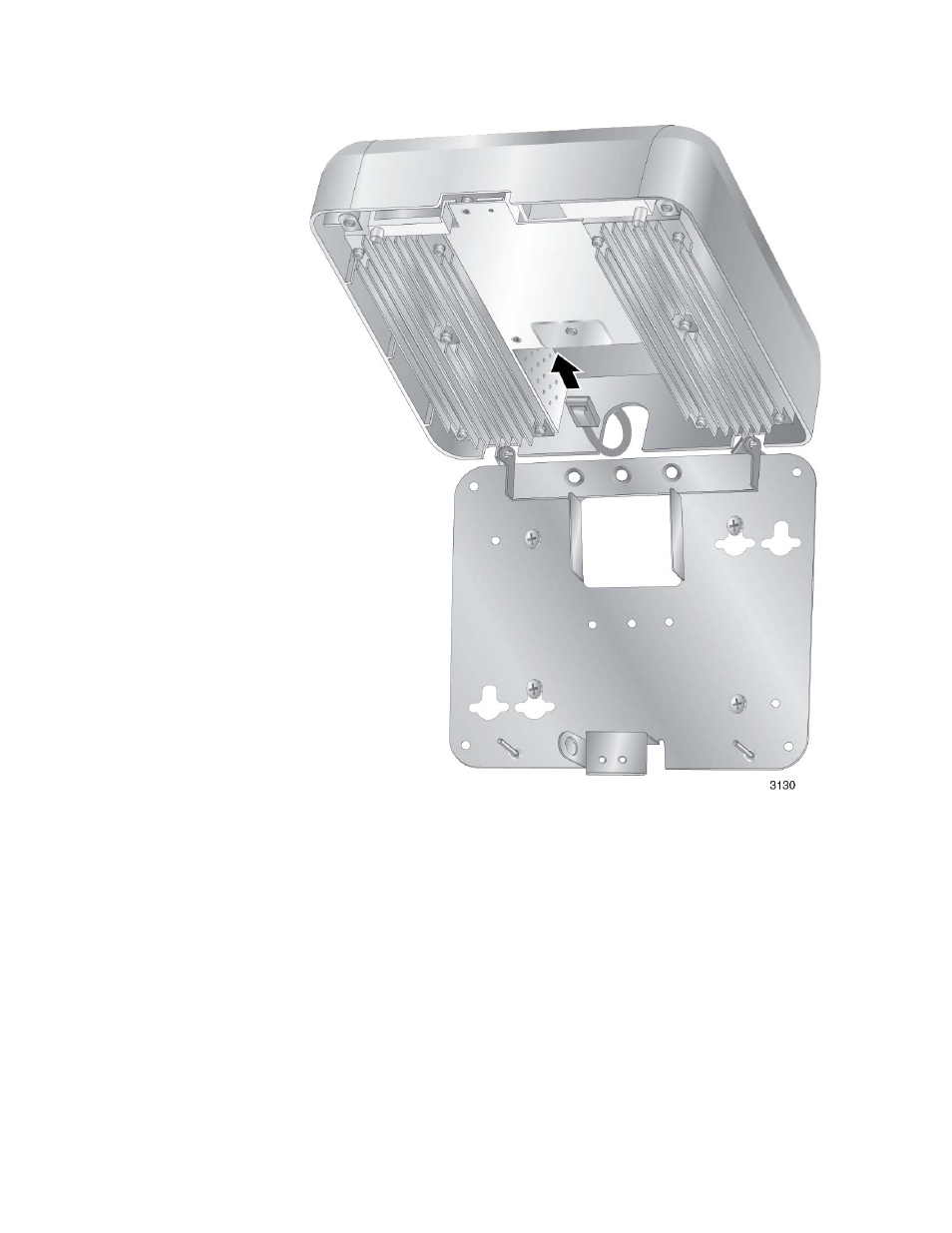

Figure 20. Connecting the Network Cable that is External to the Wall
3. If the network cable comes through a wall opening, route the cable
either through the notch in the cover, as shown in Figure 20 or through
the hole in the bottom panel, as shown in Figure 21 on page 45, and
connect it to the LAN port on the access point.
