AT-TQ3600 Wireless Access Point Installation Guide

37

Removing the

Bottom Panel

from the Access

Point

To remove the bottom panel from the access point, preform the following
procedure:

1. Place the access point on a table or desk.

2. Open the front panel. Refer to Figure 13.

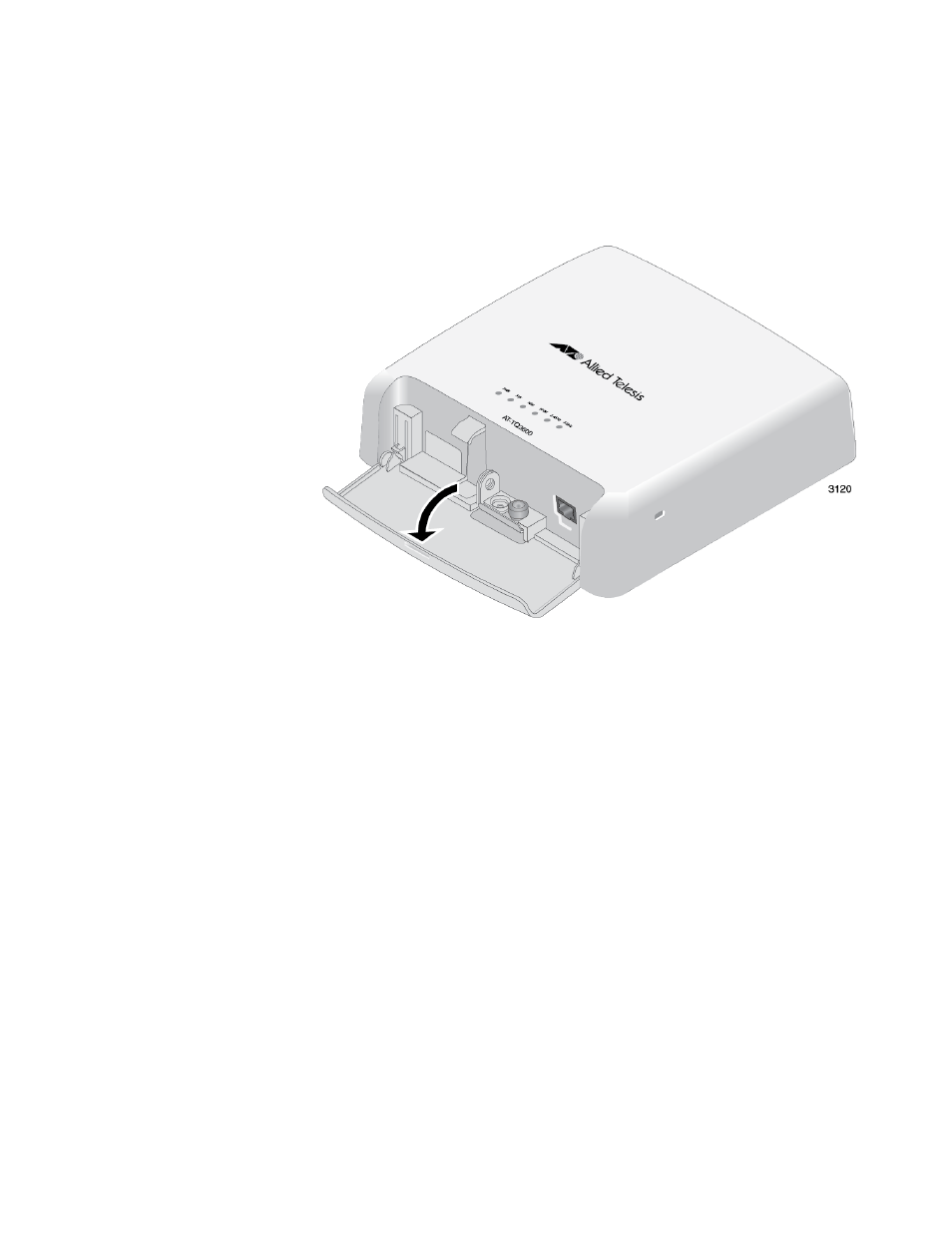

Figure 13. Opening Front Panel

3. Use a #2 Phillips-head screwdriver to loosen the captive screw that

secures the bottom panel to the wireless access point. Refer to Figure
14 on page 38.
