Figure 15: opening the bottom panel – Allied Telesis AT-TQ3600 User Manual
Page 39
AT-TQ3600 Wireless Access Point Installation Guide
39

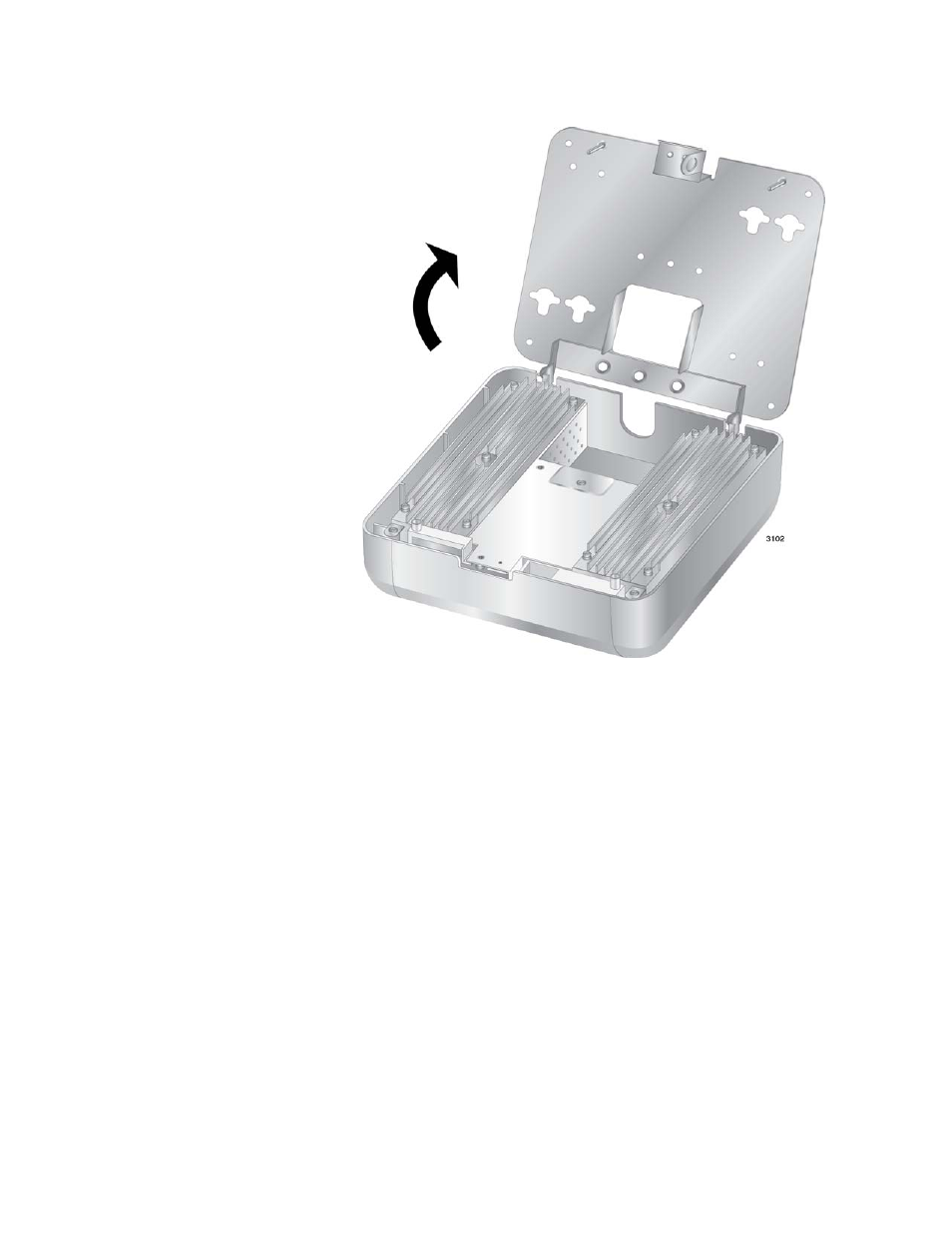

Figure 15. Opening the Bottom Panel
6. Slide the bottom panel slightly to the left to free it from the pin hinges
on the access point, and lift the panel off the access point. Refer to
Figure 16 on page 40.
