Page 38
Chapter 2: Installing the Access Point
38

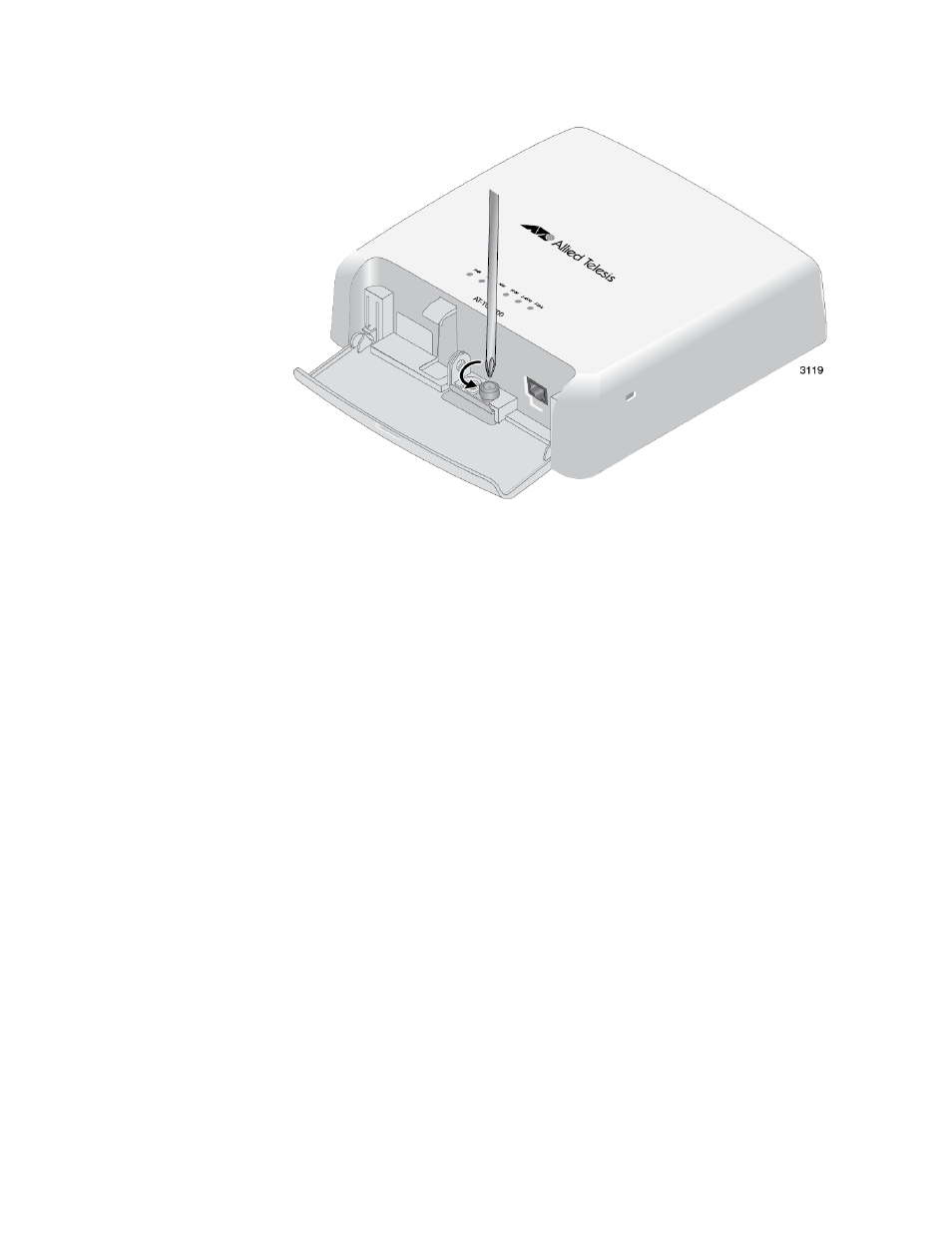

Figure 14. Loosening the Captive Screw
4. Carefully turn the access point upside down.
5. Open the bottom panel. Refer to Figure 15 on page 39.
