Chapter 2: Installing the Access Point

34

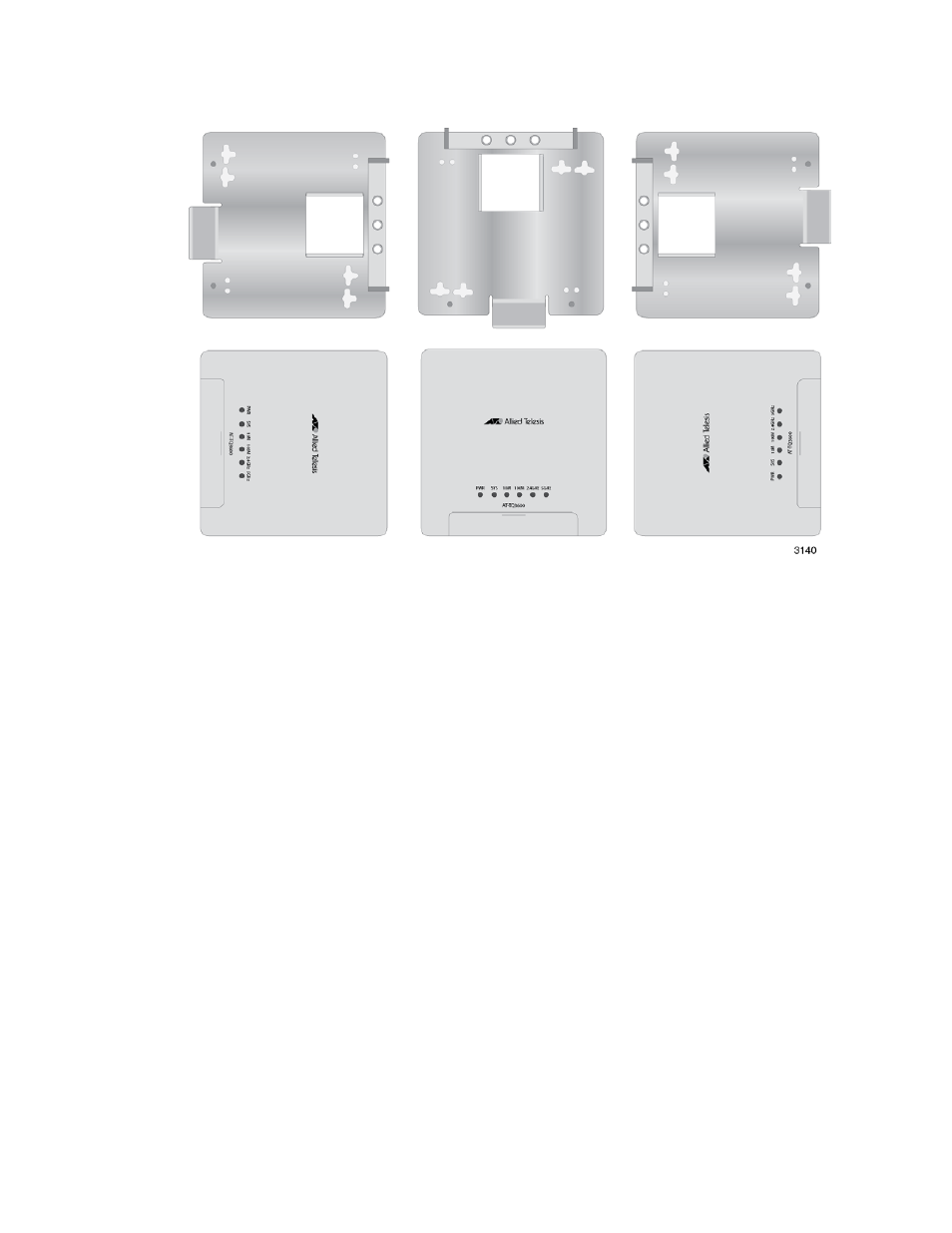

Figure 9. Wall Orientations

You may not install the access point upside down on a wall.

The location must have an AC power source if you are using the
AT-TQ0091 Power Adapter.

If the LAN cable is external to the wall, you must route the cable
through the notch in the rear panel of the cover. If the cable is
internal to the wall, you may route it either through the notch in the
cover or through the hole in the bottom panel.

You must not route the LAN cable inside the access point such that
it touches the heat sinks because that could damage the unit.
Refer to Figure 10 on page 35.
