Figure 10: heat sinks – Allied Telesis AT-TQ3600 User Manual
Page 35
AT-TQ3600 Wireless Access Point Installation Guide
35

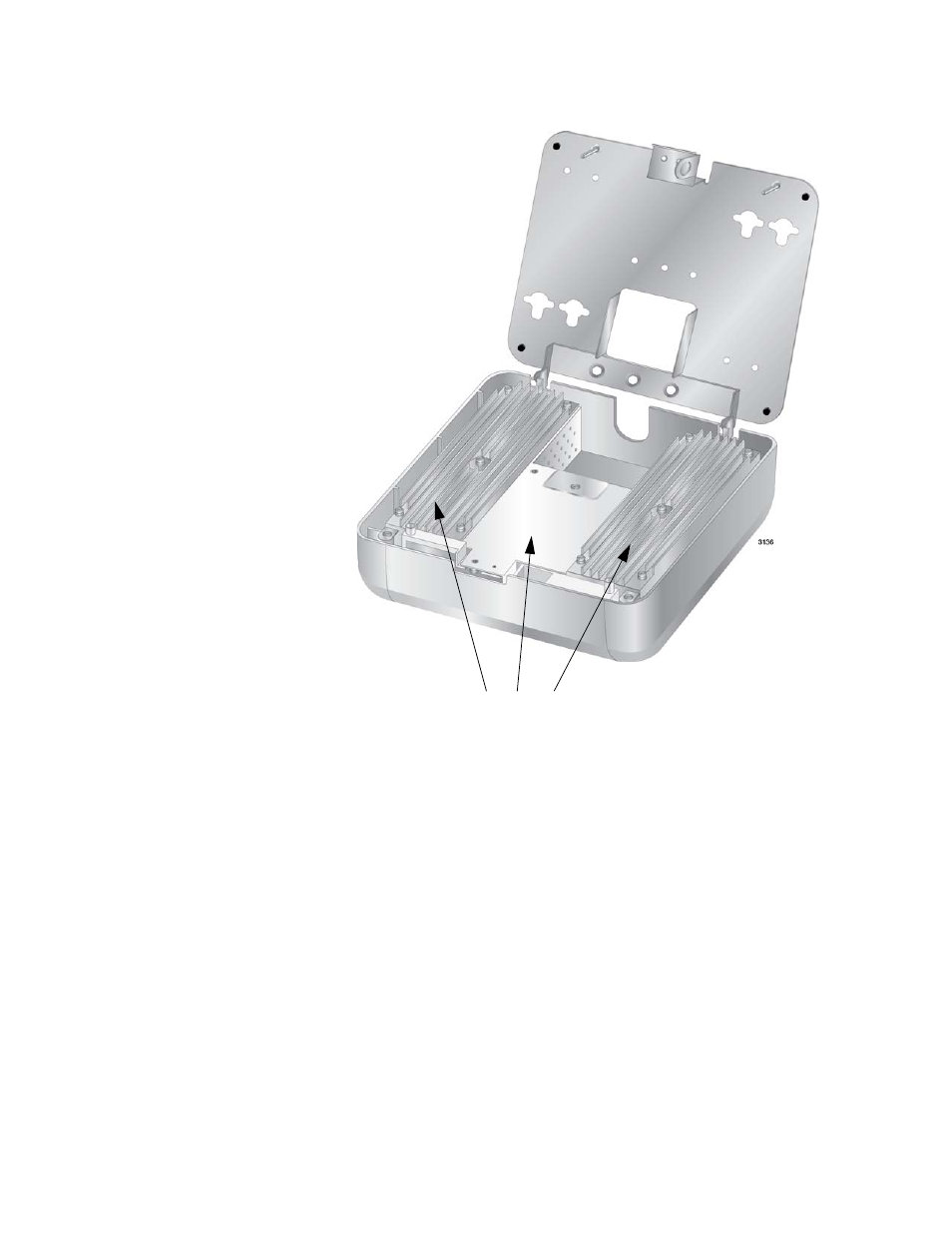

Figure 10. Heat Sinks
The bottom panel has eight screw holes. Refer to Figure 11 on
page 36. The holes are grouped in pairs. The unit should be
secured to the wall or ceiling with a minimum of four screws. You
may use either screw hole in a pair when choosing the holes.
Heat Sinks
