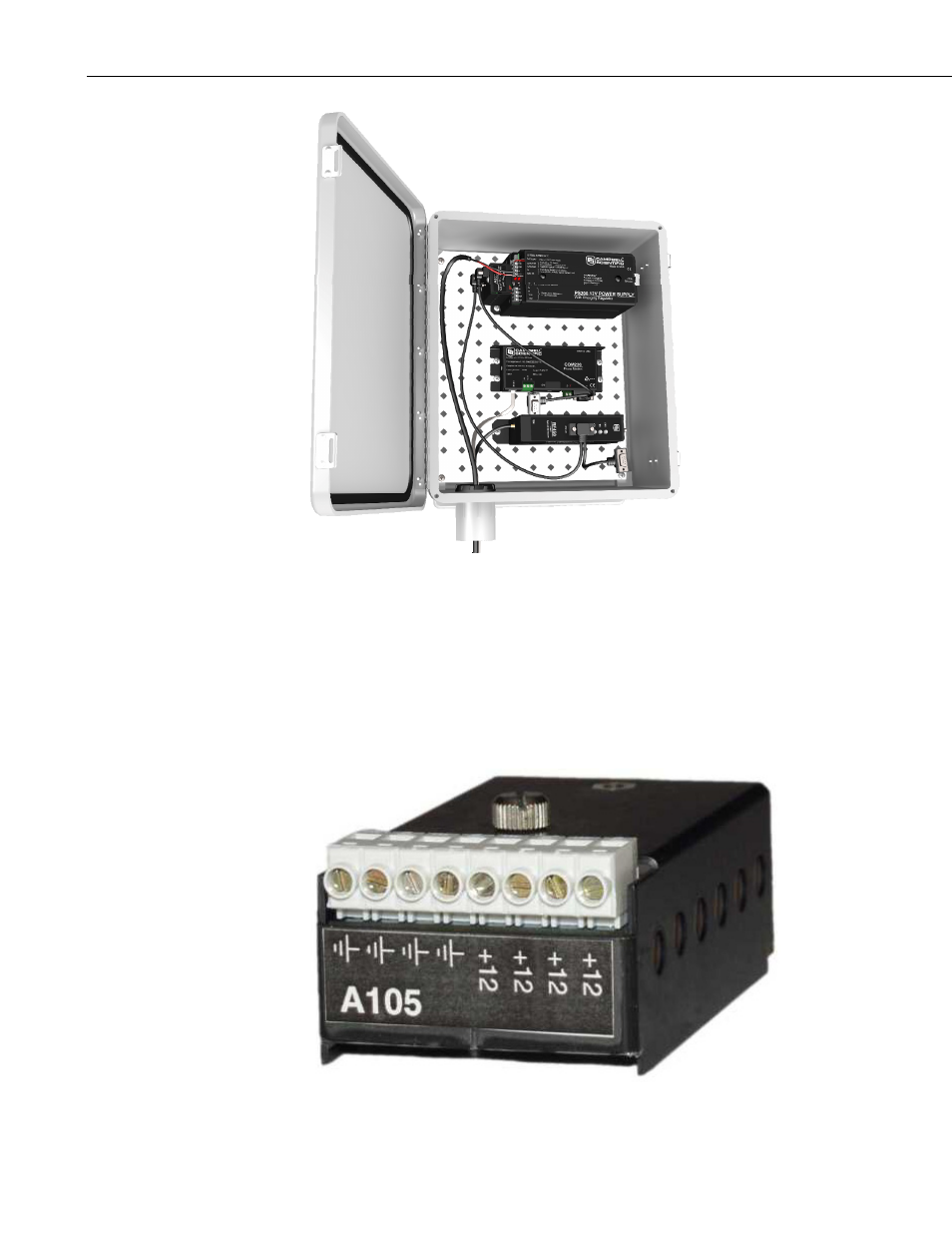

FIGURE 8-2. PS200 with A100 module using a COM220 and RF450
9. A105 Additional 12 V Terminals Adapter
The A105 adapter adds four 12 V terminals and four ground terminals to a
PS200/CH200 charging regulator. The extra terminals make it easier to wire
multiple continuously powered 12 Vdc devices to the power supply.
FIGURE 9-1. A105 adapter
