PS200/CH200 12 V Charging Regulators
4.5 Communication Cable Interface Connector Pin-Out

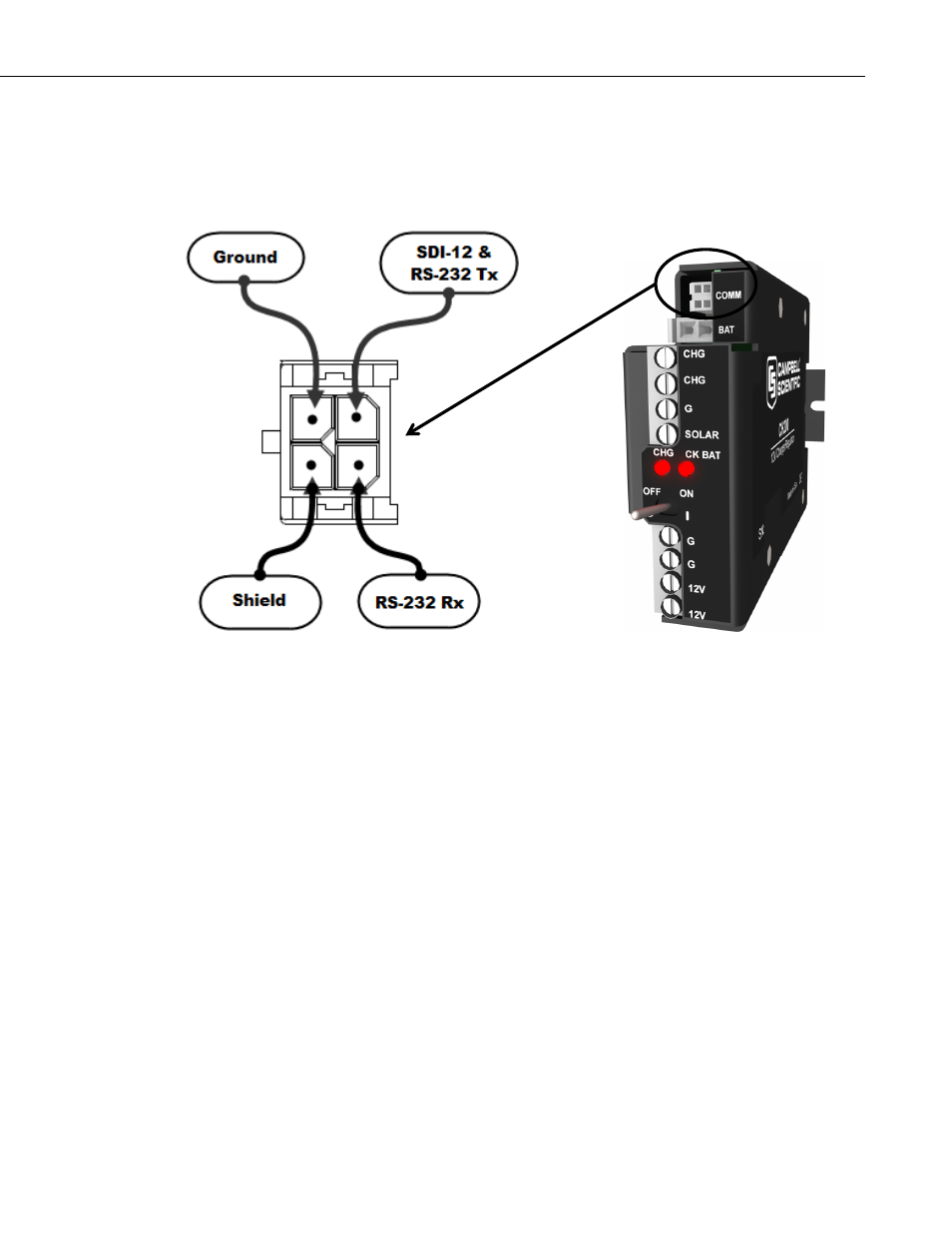

The communication connector has four pins. The following drawing shows the
connector pin-out as viewed looking at the connector.
FIGURE 4-1. Communication connector pin-out
5. Operational Overview
A simplified schematic of the CH/PS200 charging regulator is illustrated in
FIGURE 5-1. A 12-V 7Amp-hr rechargeable battery is included with the
PS200, whereas the user provides the rechargeable battery, such as the BP12 or
BP24 offered by Campbell Scientific, Inc., for the CH200. See Section 4.2,
Battery Packs, for rechargeable batteries offered for the CH200 by Campbell
Scientific.
