PS200/CH200 12 V Charging Regulators
Latch
Lift latch up.

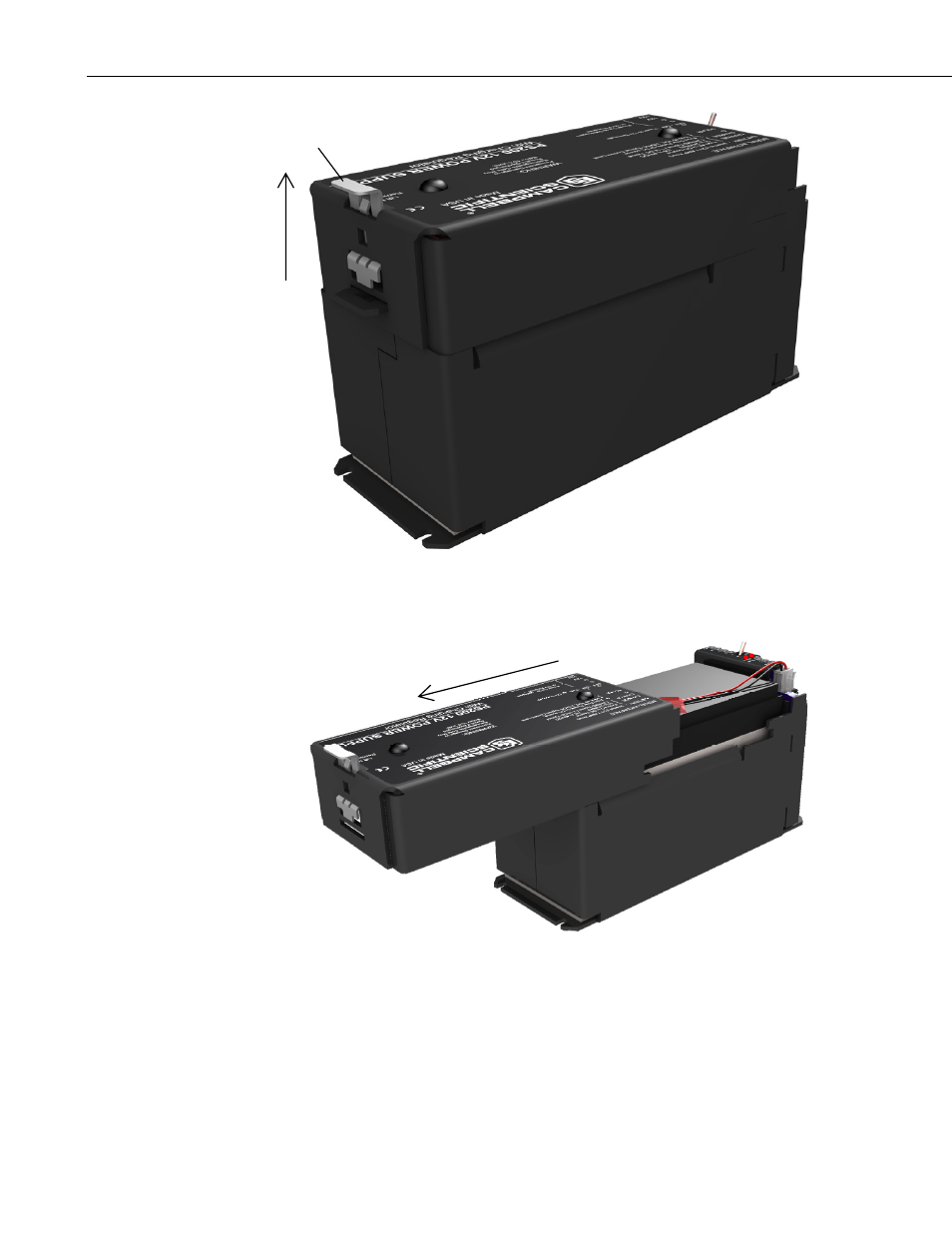

FIGURE 3-6. Lift latch up on PS200
Slide lid off.
FIGURE 3-7. Slide PS200 lid off
Plug the battery into the connector marked “BATT”. This connector is
polarized and will only allow the mating connector to be plugged in one way.
Push the connector all the way in until it locks in place.
