8. cpi communications links, 9. datalogger to sc-cpi connection – Campbell Scientific CDM-VW300 Series Dynamic Vibrating-Wire Analyzer System User Manual
Page 31
CDM-VW300 Series Dynamic Vibrating-Wire Analyzers
SC-CPI to Datalogger
12V to 12V
G to G
C1 to C1
C2 to C2
C3 to C3
SC-CPI to CDM-VW300
CPI to CPI
(RJ-45 to RJ-45)
CPI Bus
Terminator
FIGURE 6-8. CPI communications links

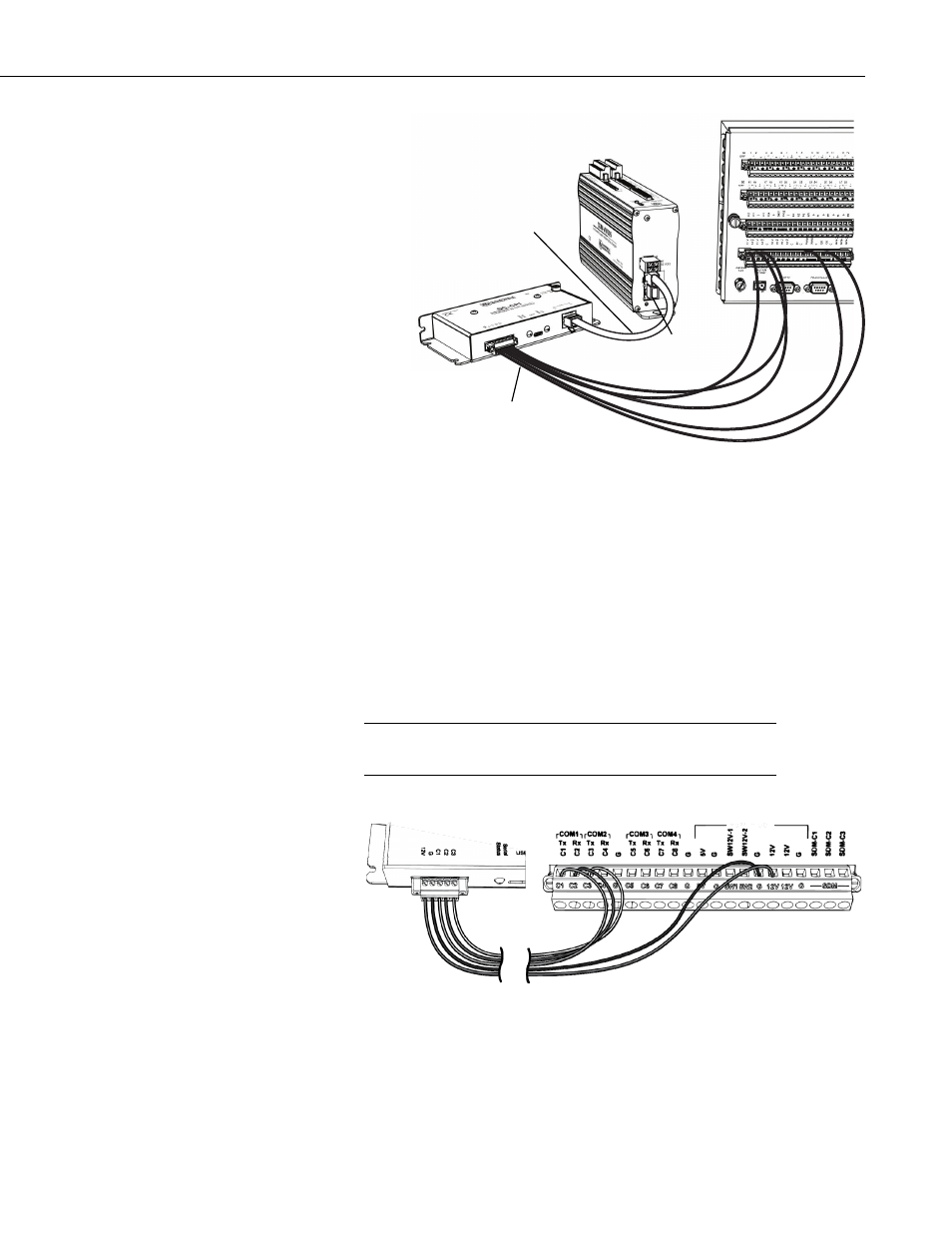

a. Connect the SC-CPI to the datalogger. Reference FIGURE 6-9,
Datalogger to SC-CPI Connection.
CR3000, CR1000, and CR800 dataloggers require that a SC-CPI
interface the datalogger to the CDM-VW300. Connect 12V, G, C1,
C2, and C3 from the SC-CPI to the corresponding 12V, G, C1, C2,
and C3 ports of the datalogger.
SC-CPI module connects to terminals C1, C2, C3 (not SDM-C1,
SDM-C2, SDM-C3).
NOTE
FIGURE 6-9. Datalogger to SC-CPI connection
b. As shown in FIGURE 6-10, connect the CDM-VW300 to the SC-CPI.
Reference Section 7.7.3, CDM-VW300 to SC-CPI Connection, and
Appendix B, SC-CPI Datalogger to CPI Interface.
