Campbell Scientific CDM-VW300 Series Dynamic Vibrating-Wire Analyzer System User Manual
Page 24
CDM-VW300 Series Dynamic Vibrating-Wire Analyzers
If COM port CDM-VW300 does not appear, there is a problem
with the installation of the device driver or the creation of the
COM port. See Section 7.1.1, Software and Driver Installation,
for remedial steps.
NOTE
Press

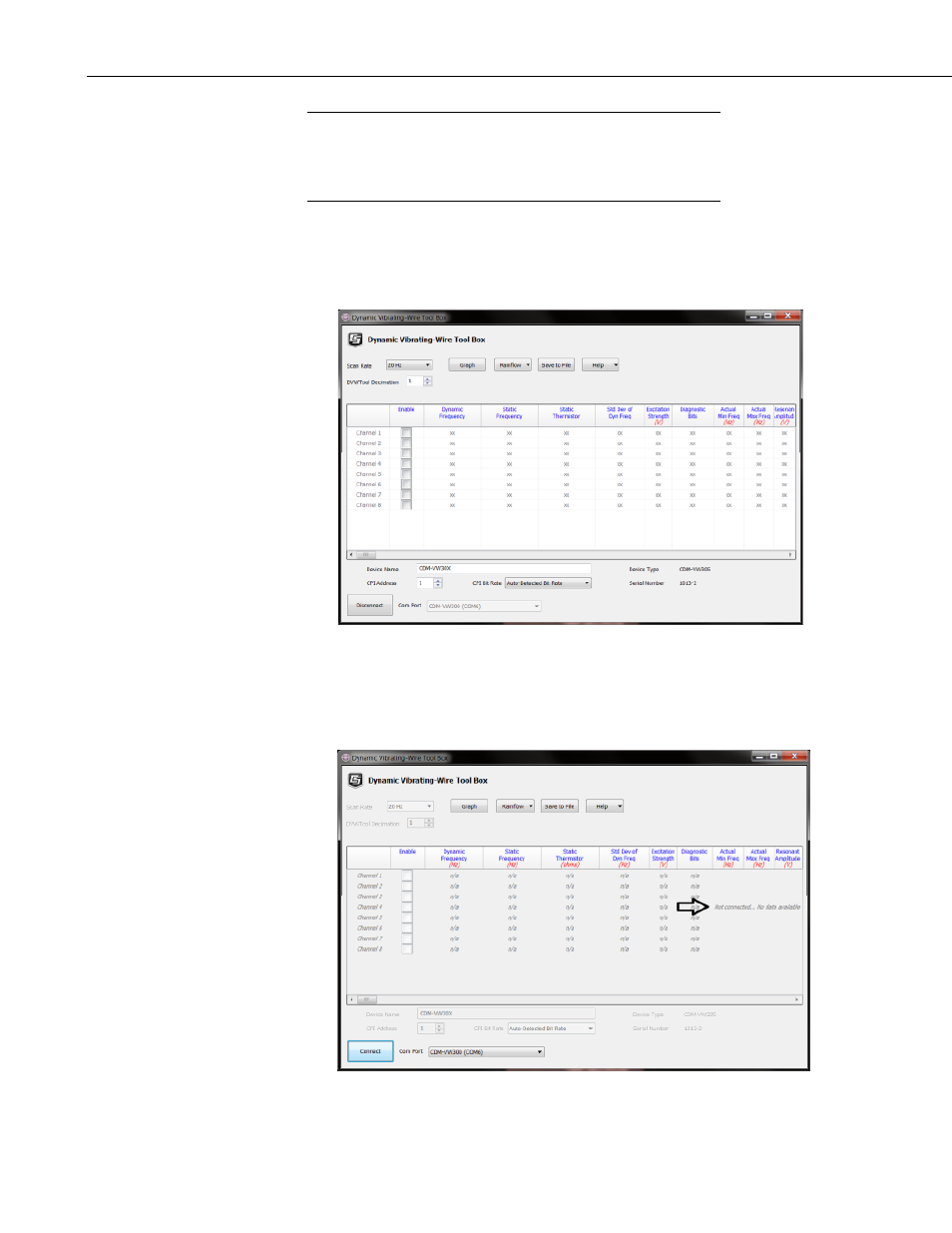

Connect in the lower left of the DVWTool window. If DVWTool
connects with the CDM-VW300, the channel list on the DVWTool
interface becomes available and the button at lower left reads Disconnect
as shown in the following figure.
Notice that the fields Device Type, Serial Number, Device Name, and
CPI address are active and populated in the lower portion of the
DVWTool window. Otherwise, the channel list remains dimmed and the
notice Not connected... No data available is displayed at the right of the
channel list, as shown in the following figure.
14
