17. plumbing diagram of ap200 system – Campbell Scientific AP200 CO2/H2O Atmospheric Profile System User Manual
Page 24
AP200 CO
2
/H
2
O Atmospheric Profile System
valves, adjusts pumping speed to control system pressure, and controls the
temperatures of the pump and valve manifold. FIGURE 4-17 is a plumbing
diagram showing the various parts of the AP200 system connected. Details for
each part of the system are given in this section.

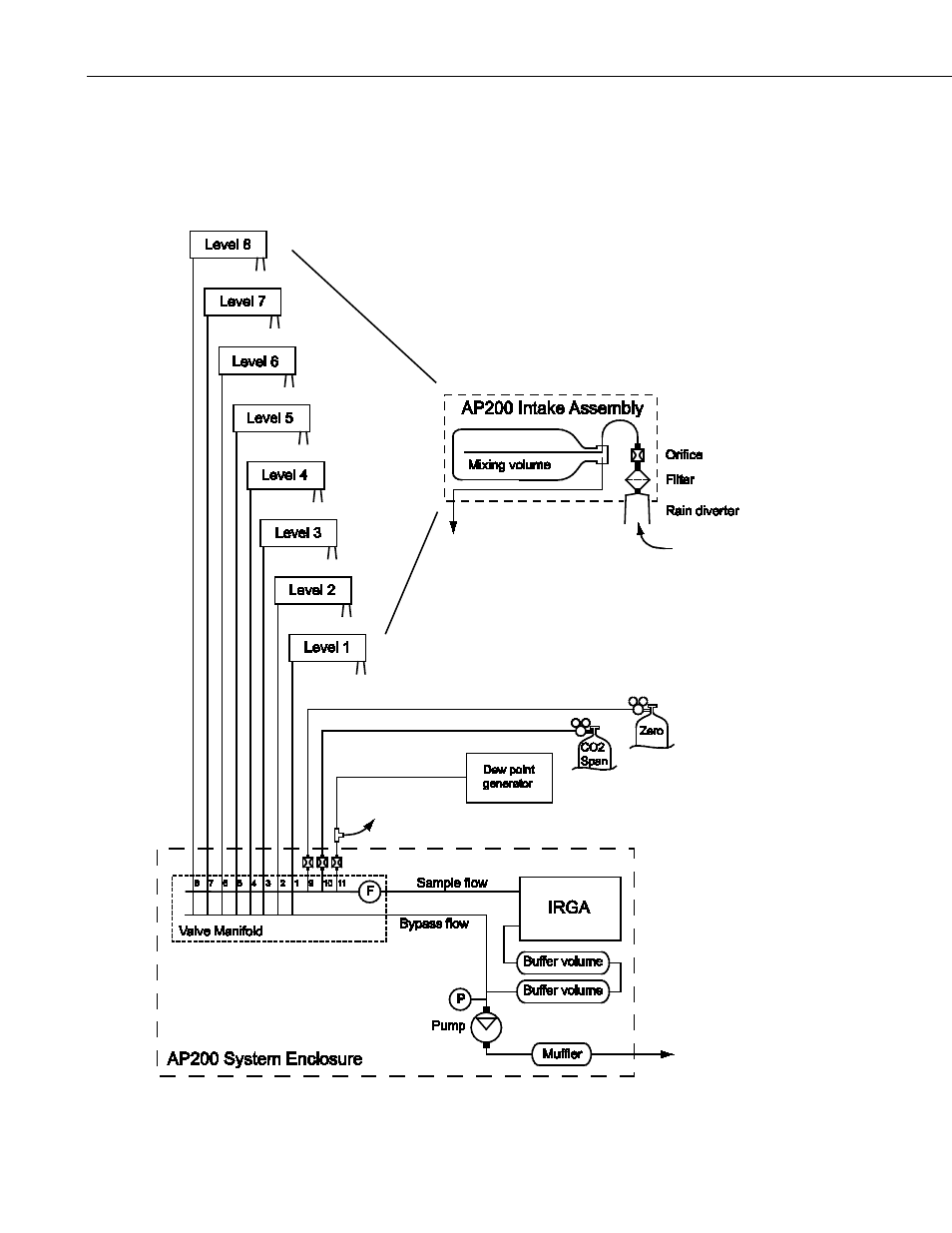

FIGURE 4-17. Plumbing diagram of AP200 system
12
