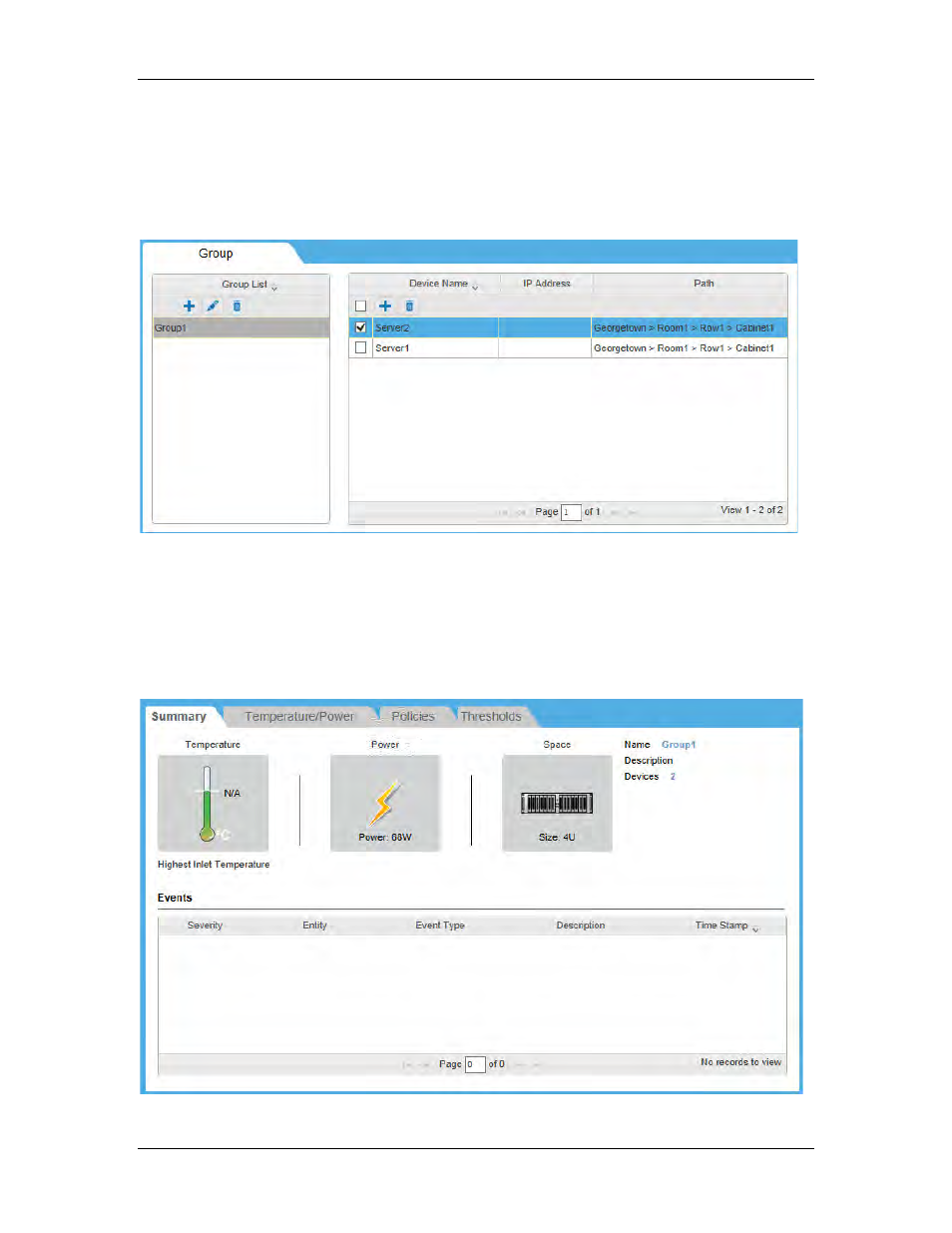

Modify Groups
To remove a device from a group, select the group and device and click on the trash can
icon under Device Name. To remove a group, select the group and click on the trash can
icon under Group List. To change a group’s name or description, select the group and
click on the pencil icon under Group List.
Monitor Groups
Select the group in the Group List to see group metrics at the bottom of the page. The
Summary tab shows present values for the group. The Temperature/Power tab plots
trends. The Policies tab allows you to assign power limits when the software is
monitoring servers directly. Thresholds allow you to set limits which will create Events.
