Power

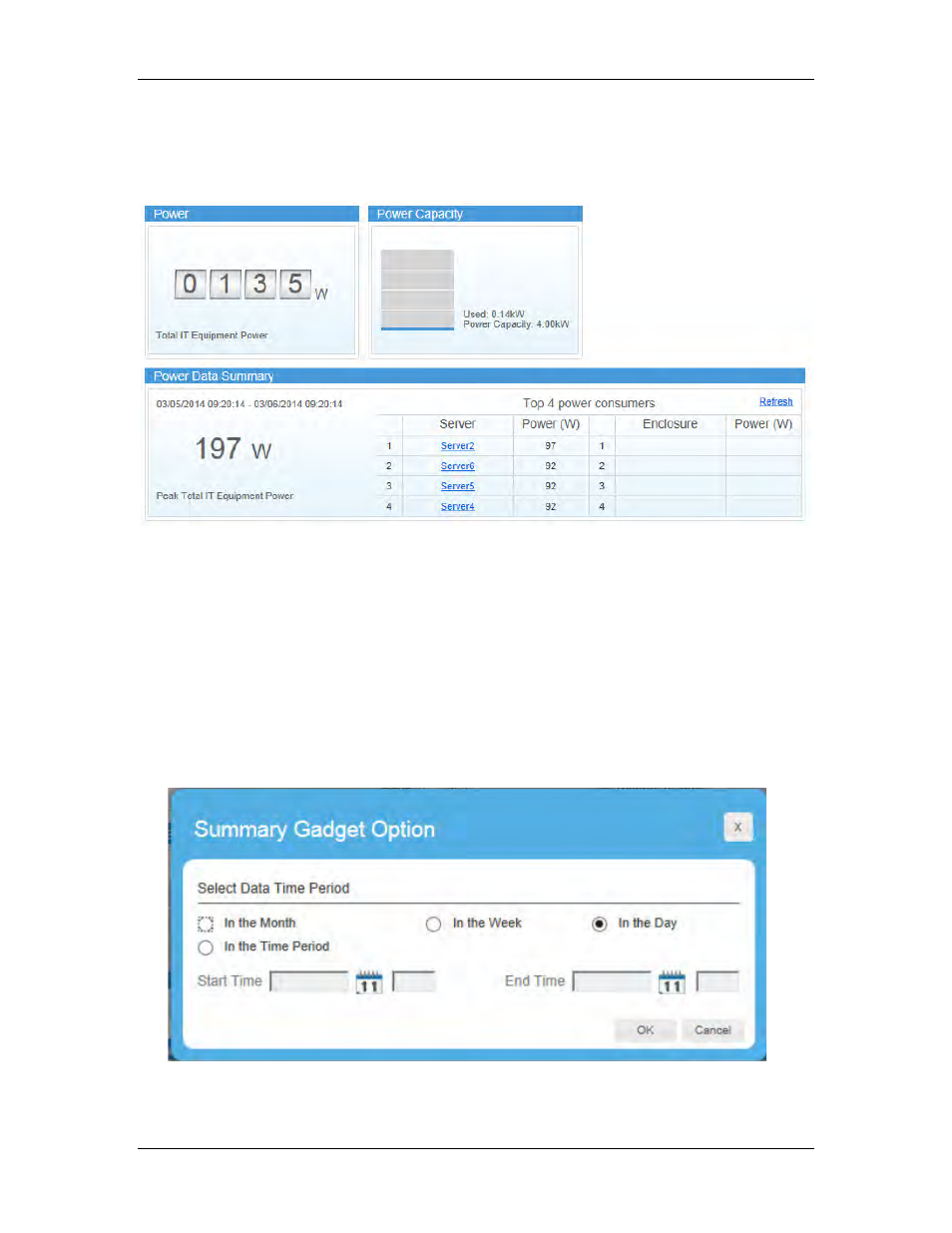

The gadgets Power, Power Capacity and Power Data Summary provide an overview
of power use in your data center.
• Power is the total power used by equipment.
• Power Capacity shows the total available power. The gray blocks represent power
capacity which is the sum of the individual capacity limits that you assign to each
rack. The blue bar represents measured power use.
• Power Data Summary shows peak power for all equipment and the top four power
consumers – the four devices that are using the most power. Click refresh to see
current conditions. Click any of the links to see the device summary page.
You can set a date range for this gadget. Mouse over the gadget and click on the
wrench in the header and the following Summary Gadget Option pop up will display.
Select a data range and click OK to update the report.
