L/D gnd actual glide ratio over ground ( = Groundspeed/Sink)* 2.7.1
L/D air actual glide ratio ( = TAS/Sink) 2.7.1
L/D req required glide ratio over ground to reach WP * 2.7.1
L/D req goal required glide ratio over ground to reach Goal
Alt a. BG
Safety altitude above the best glide path* 5.6
Alt a. Wp Arrival altitude above waypoint * (acc. to McCready) 2.7
Alt a. Goal Precalculated arrival altitude over the last waypoint of a Route * 1.8.8
Temp Temperature of circuit board 1.8.1
SMS p/t SMS pending/transmitted
* Display only active when GPS Receiver is energized.
If nothing is changed after having selected
a field, the instrument returns to normal
function after 10 sec. and the previous
display is shown again.

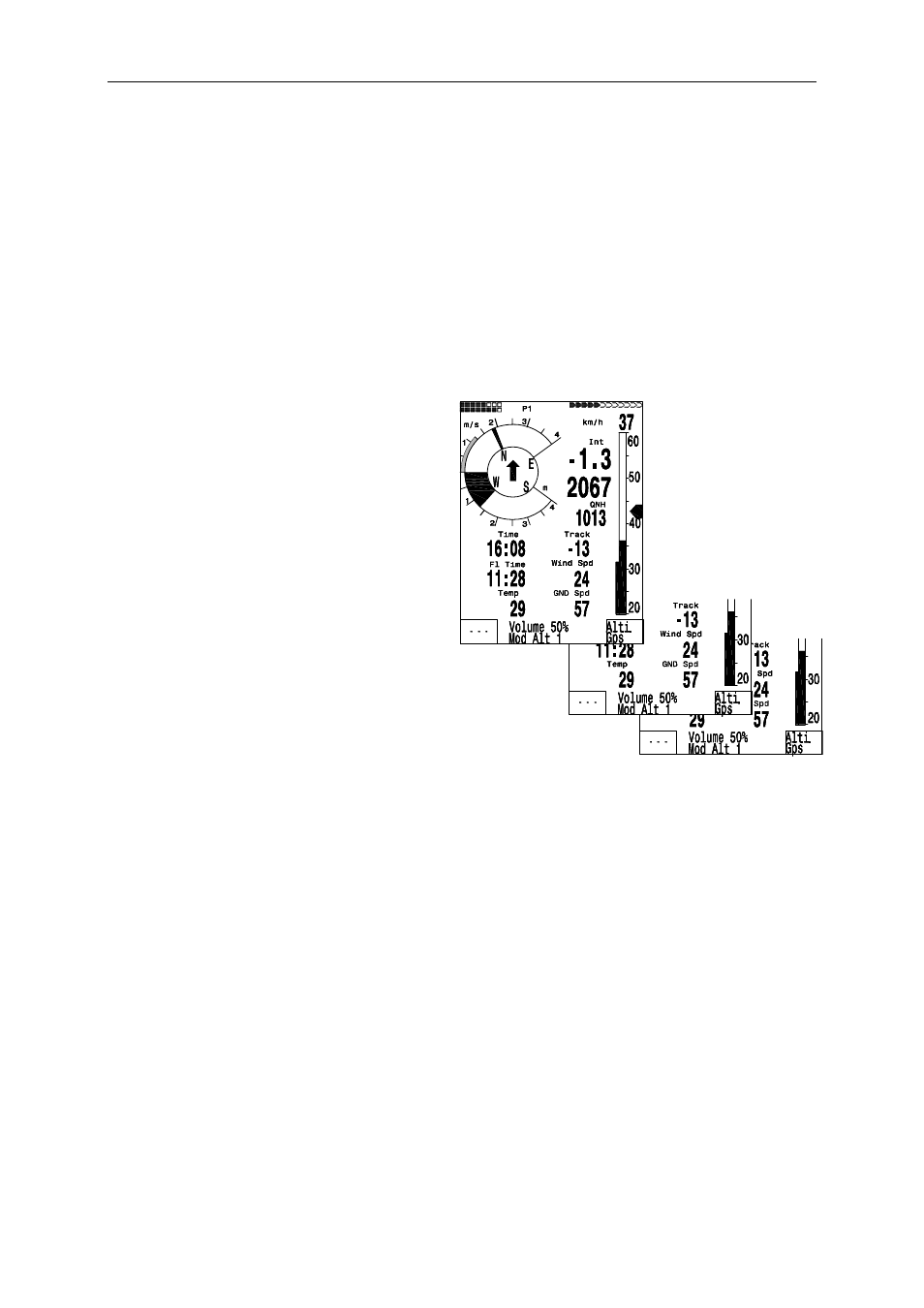

By pressing briefly thekey, a 2nd and
3rd page with each time 7 displays
is
accessible. Choose Basic Settings / Userfields
for selection of these displays with each
time 4 large fields, or 6 small fields.
In this case the compass rose is hidden,
but the big arrow pointing to the WP
remains visible.
We would like to assist the user by
providing some approved recommendations
for preset of 3 selectable field pages.
Some of the displays are so interesting that
we recommend to present these on each of
the 3 possible field pages always at the same places.
This would be for instance „Groundspeed“ or the wind component „Speed-Diff“.
Page 1)
is called up, if the pilot flies without predetermined goal (thus without the “GoTo”
function) In addition to the displays mentioned before, also the fields for: Dist to ^; L/Dgnd;
Flight Time; Alt2 or Temp could be displayed.
Page 2)
is used, if a waypoint (WP) to go for has been selected. Instead of the fields
suggested above, values for Dist to WP; Alt a. BG; Alt a. WP should also be displayed here.
Page 3)
could be called up for the final glide to the landing area. Even if the pilot selects the
large data representation here, the most important functions should be displayed here,
such as the big arrow pointing to goal, and also Dist to WP; Spd-Diff; Gnd-Speed; Alt a BG;
and Alt a. WP.
1.3 Entering Text
It is possible to enter on certain fields, as for example pilot’s name, or in regard to waypoints
and Routes, the desired text on the instrument. However, this is quite complicated. It is much
more easier to carry out the text entry by use of the PC using the program Flychart 4.52,
and to transfer it to the instrument.
For entering Text proceed as follows, this example is given for a waypoint:
