Flytec 6030-GPS
28 / 62

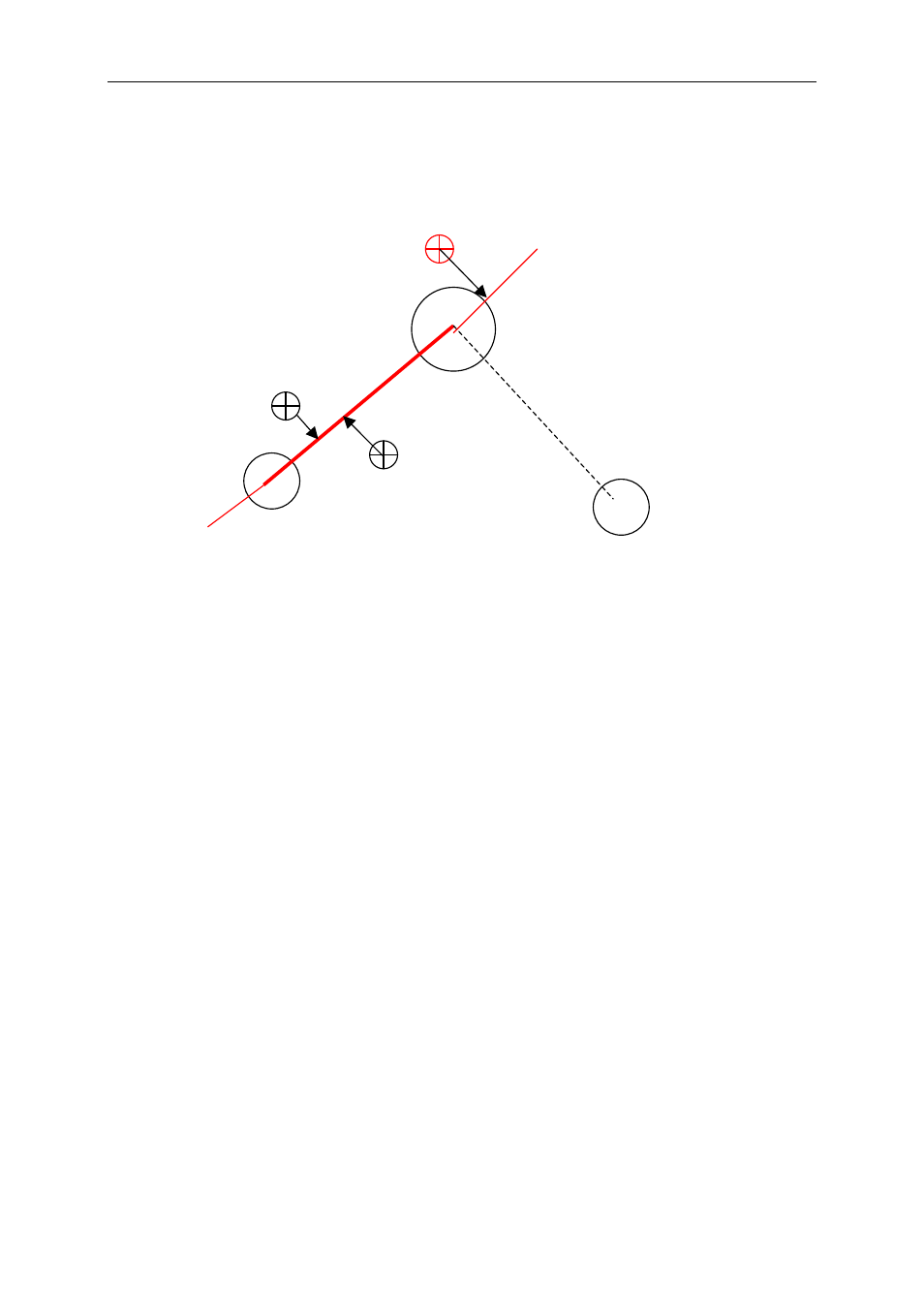

2.6.8 XT Error, Crosstrack Error
This field indicates the shortest distance (perpendicular related to the Earth) to the active leg
of a Route.
The accuracy of the indicated value depends on the length of the active leg. The largest
Inaccuracy arises in the centre between start and the next WP, if one is very close to the
track (the angles become very flat). With 50 km distance between start and WP the
inaccuracy in the centre can reach up to 400m. Positive values are displayed if one is
on the right of the track, negative values on the left of the track. Even if one has flown over
the next waypoint, the distance to the straight line is shown. (see position 3).
2.6.9 Airspace
(CTR - Restricted areas)
Usually airspace areas are bordered by straight lines, but also circled zones or mixed from
straight lines and arc segments may be used. Basically each instrument 6030 already
contains on delivery a preloaded CTR, which is the CTR Innsbruck, and which may be
altered to one’s own discretion. As an option with costs the activation of 20 or even 300
CTR’s may be effected (please ask the instrument’s manufacturer).
CTR's can be entered into the instrument either manually in Setup mode / Lufträume, or
more easily by use of a PC program, e.g. Flychart 4.52 which is available on our homepage.
Within the menu item Extras / Fluginstrument Optionen / Lufträume it is possible to select
and load CTR’s for transfer onto the FLYTEC 6030 GPS. In the same way it is possible
with the „Maxpunkte“ program to transfer individual CTR’s from PC to the FLYTEC 6030
GPS.
The procedure for manually setting, altering and deleting CTRs is operated according
to the same system which is used for setting, altering and deleting waypoints and Routes.
More related information is provided in par. 2.6.4.1 of this manual.
In the user selectable fields the field „Dist. to CTR“ indicates the shortest distance to the
next CTR, if this distance is less than 50 Km.
As soon as the distance to CTR falls short of a warning limit to be set in Setup Mode (factory
setting = 2000m, dist. Flychart 200m), this distance is displayed additionally on the graphic
map screen, as well as on the standard flight display in the Info line. CTR 0.75 Km
Start target
Waypoint
Pos 3
positive
value
Negative value
