PAGE 2
10 NOV 2006
MAN0292-08
MIX902
This Data Sheet is published individually & also as a part of the SmartStack Supplement (SUP0246-05).
Information is subject to change without notice. SmartStack is a trademark of Horner APG, LLC.
Maximum Load
Current per Output
0.5A Max.
Output Protection
Short Circuit
General Specifications
Required Power
(Steady State)
0.03W (1.65MA @ 24VDC)
Operating
Temperature
0
° to 60° Celsius
Required Power (Inrush)
Negligible
Terminal Type
Spring Clamp, Removable
Relative Humidity
5 to 95% Non-condensing
Weight
9.5 oz. (270 g)
CE
UL
See Compliance Table at
http://www.heapg.com/Support/compliance.htm

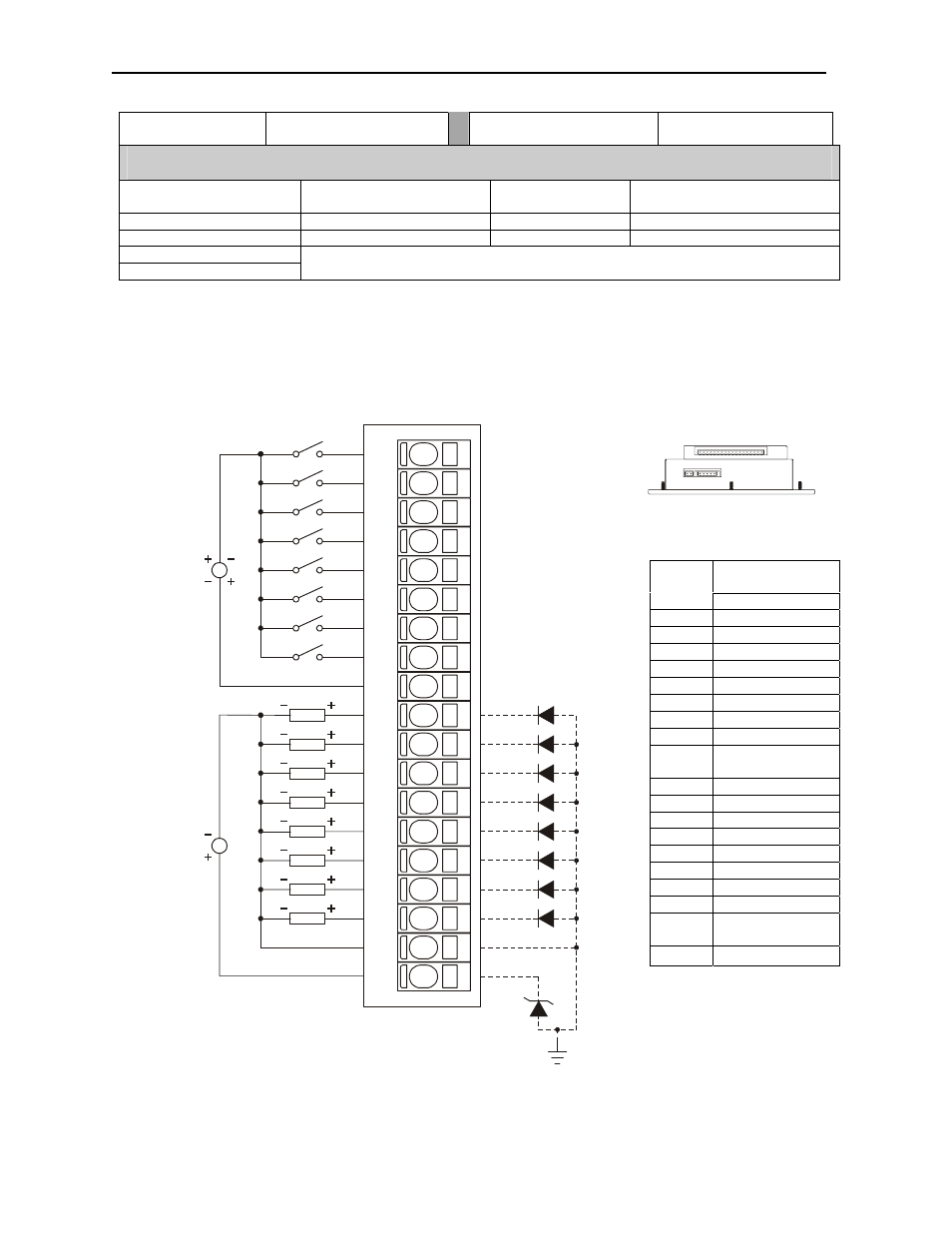

2 WIRING
2.1
Digital Input / Output (P1)
*
OCS
Bottom View – Shows
Corresponding I/O Pin
Digital Input /
Output
Pin
MIX902 - P1
I1 Input
1
I2 Input
2
I3 Input
3
I4 Input
4
I5 Input
5
I6 Input
6
I7 Input
7
I8 Input
8
C1 Common
(Isolated)
Q1 Output
1
Q2 Output
2
Q3 Output
3
Q4 Output
4
Q5 Output
5
Q6 Output
6
Q7 Output
7
Q8 Output
8
VC Load
Power
Common
V+
Load Voltage +
I1
I2
I3
I4
Q1
Q2
Q3
Q4
V+
I5
I6
I7
I8
Q5
Q6
Q7
Q8
C1
VC
12-24VDC
10-28VDC
LOAD
LOAD
LOAD
LOAD
LOAD
LOAD
LOAD
LOAD
001MIX003-R2
