11 Instructions for normal
operation
11.1 Visualizing the state of the
pan & tilt

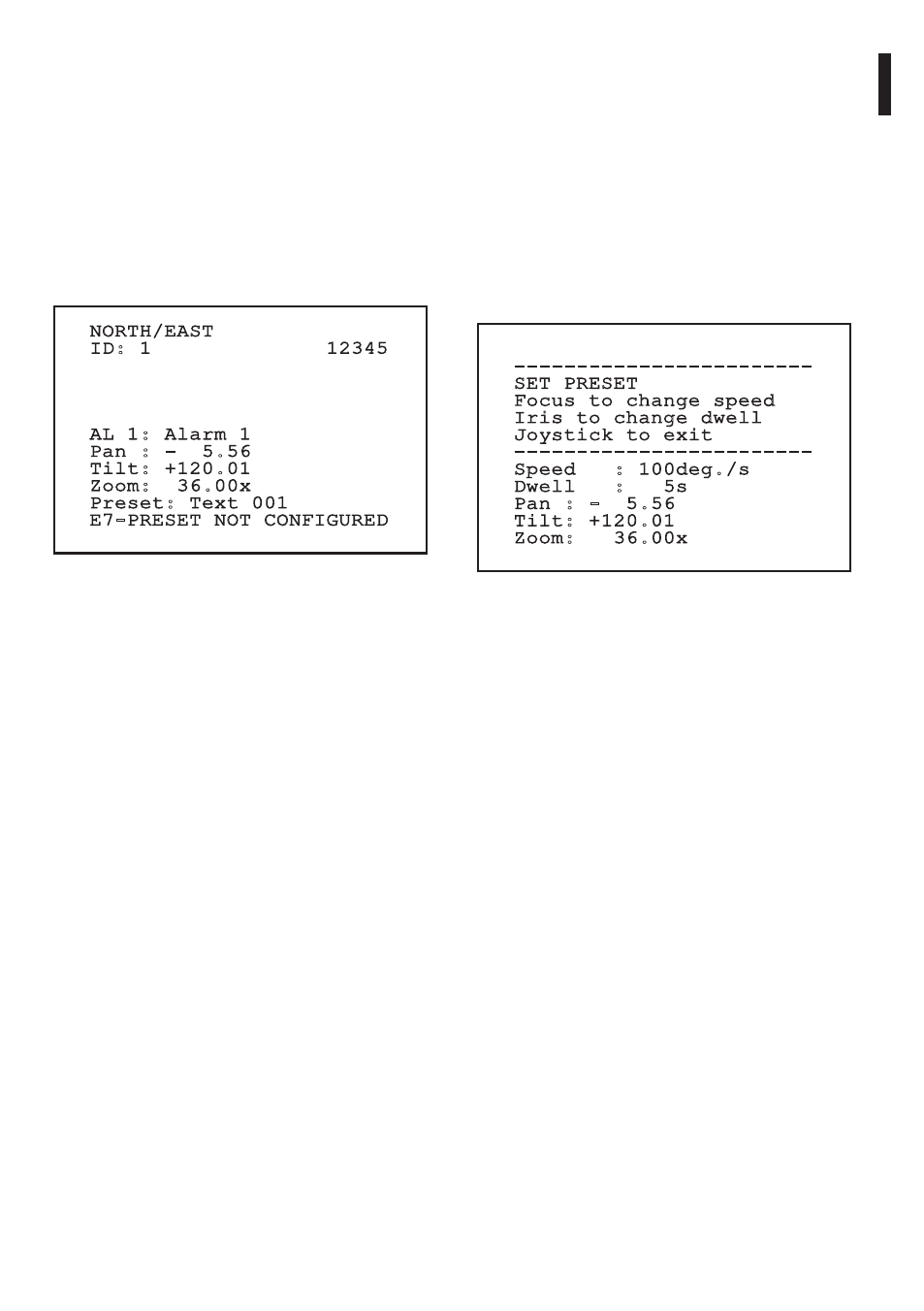

During normal operation the pan & tilt displays
on screen, at user's choice, the data organized as
illustrated. The visualization can be enabled or
disabled (9.1.11 Display Menu, page 42).
NORTH/EAST
ID: 1 12345
AL 1: Alarm 1
Pan : - 5.56
Tilt: +120.01
Zoom: 36.00x
Preset: Text 001
E7-PRESET NOT CONFIGURED
Fig. 121
NORTH/EAST: Name of the area where one is
currently located.
ID: 1: Receiver’s address.
12345: Complete list of active alarms.
AL 1: Alarm 1: Text regarding the last active alarm
Pan: - 5.56/Tilt: +120.01/Zoom: 36.00x: Current
position of Pan, Tilt and Zoom.
Preset: Text 001: Name of selected active preset.
E7-PRESET NOT CONFIGURED: The following field
shows the errors found while the system was running
or the commands received via serial (visualization can
be enabled or disabled only for received commands).
11.2 Saving the current position
(Preset)
11.2.1 Quick save
Using the control keyboard it is possible to save the
current position. For further information, refer to the
manual of the keyboard in use.
During the saving stage, it is possible to change the
speed at which Preset is reached using keys Focus
Far/Focus Near and to change the waiting time using
keys Iris Open/Iris Close.
------------------------
SET PRESET
Focus to change speed
Iris to change dwell
Joystick to exit
------------------------
Speed : 100deg./s
Dwell : 5s
Pan : - 5.56
Tilt: +120.01
Zoom: 36.00x
Fig. 122
11.2.2 Saving from the Menu
Refer to 9.1.10.3 Preset Menu, page 39.
