Page 35
Instruc
tions manual - English - EN
35
MNVCUCZ_1351_EN
9.1.9.10 Advanced Setting Menu (Exposure)
Once inside the menu it is possibile to set the
following parameters:
1-5. Mode: Sets the type of exposure control
Automatic, Manual, Shutter, Iris and Bright.
6. Auto Slowshutter: If enabled, this function
automatically increases the exposure time to
improve night vision.
7-8. Compensation, Compensation Value: Sets the
exposure compensation.
9. Backlight Compensation: Enables the
Backlight Compensation function. It improves
vision of any dark zone in the image.
In automatic mode it is possible to enable Backlight
compensation.
This is a dynamic self-configuration menu based on
the choice made and shows the parameters on which
it is possible to operate.
The chosen exposure operating mode is associated
to all presets.
The recommended setting is Automatic.

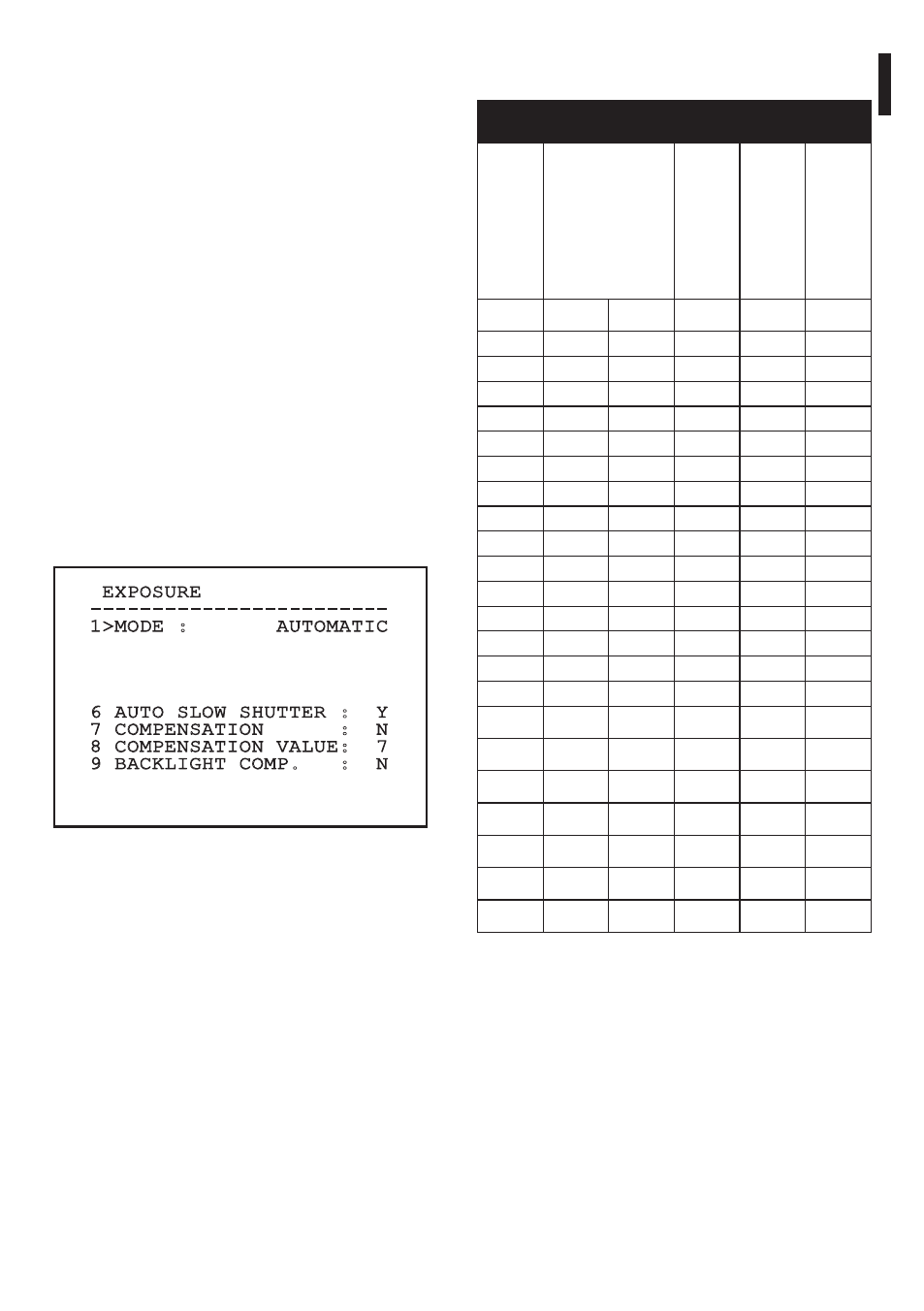

EXPOSURE
------------------------
1>MODE : AUTOMATIC
6 AUTO SLOW SHUTTER : Y
7 COMPENSATION : N
8 COMPENSATION VALUE: 7
9 BACKLIGHT COMP. : N
Fig. 65
The following table shows the inserted values with
the corresponding effects on the SONY module lens.
CORRESPONDING VALUES/EFFECTS ON THE SONY
MODULE LENS
Value
Shutt
er
Iris
G
ain
Exp
osur
e c
omp
en
-
sa
tion
NTSC
PAL
0
1/1
1/1
Closed
-3db
-10,5db
1
1/2
1/2
F28
0db
-9db
2
1/4
1/3
F22
2db
-7,5db
3
1/8
1/6
F19
4db
-6db
4
1/15
1/12
F16
6db
-4,5db
5
1/30
1/25
F14
8db
-3db
6
1/60
1/50
F11
10db
-1,5db
7
1/90
1/75
F9.6
12db
0db
8
1/100
1/100
F5
14db
1,5db
9
1/125
1/120
F6.8
16db
3db
10
1/180
1/150
F5.6
18db
4.5db
11
1/250
1/215
F4.8
20db
6db
12
1/350
1/300
F4
22db
7,5db
13
1/500
1/425
F3.4
24db
9db
14
1/725
1/600
F2.8
26db
10,5db
15
1/1000
1/1000
F2.4
28db
16
1/1500
1/1250
F2
17
1/2000
1/1750
F1.6
18
1/3000
1/2500
19
1/4000
1/3500
20
1/6000
1/6000
21
1/10000 1/10000
Tab. 9
