Removing the Fan/Thermal Module

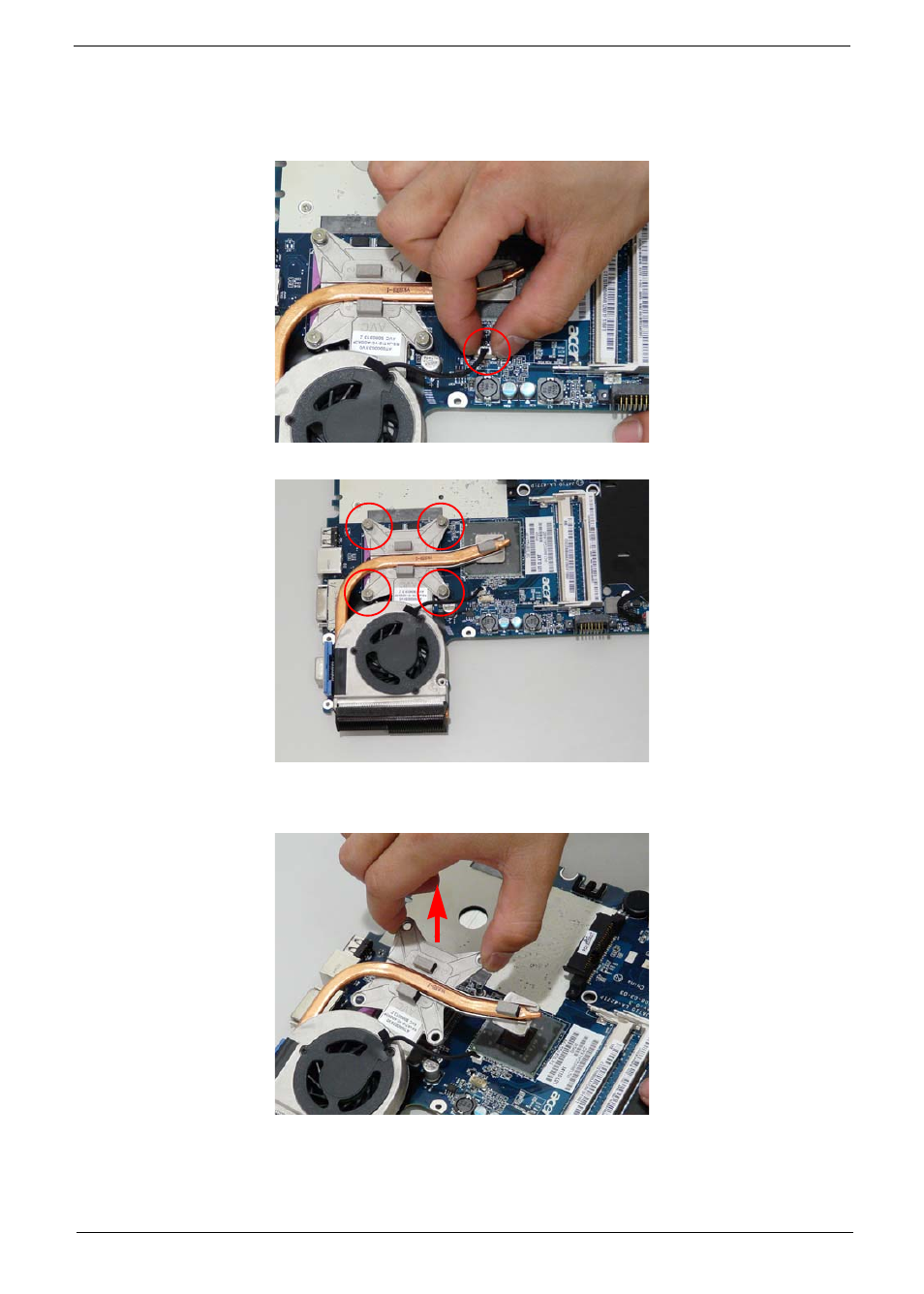

1. Remove the Mainboard. See “Removing the Mainboard” on page 80.
2. Disconnect the Fan cable from the mainboard.
3. Loosen the four (4) captive screws in numerical order from 4 to 1.
IMPORTANT:Lift the Fan/Thermal Module by the thermal assembly to avoid damage to the CPU
4. Grip the Thermal Module and pivot upwards to remove.
