Acer 2930 User Manual
Page 63
Chapter 3
53

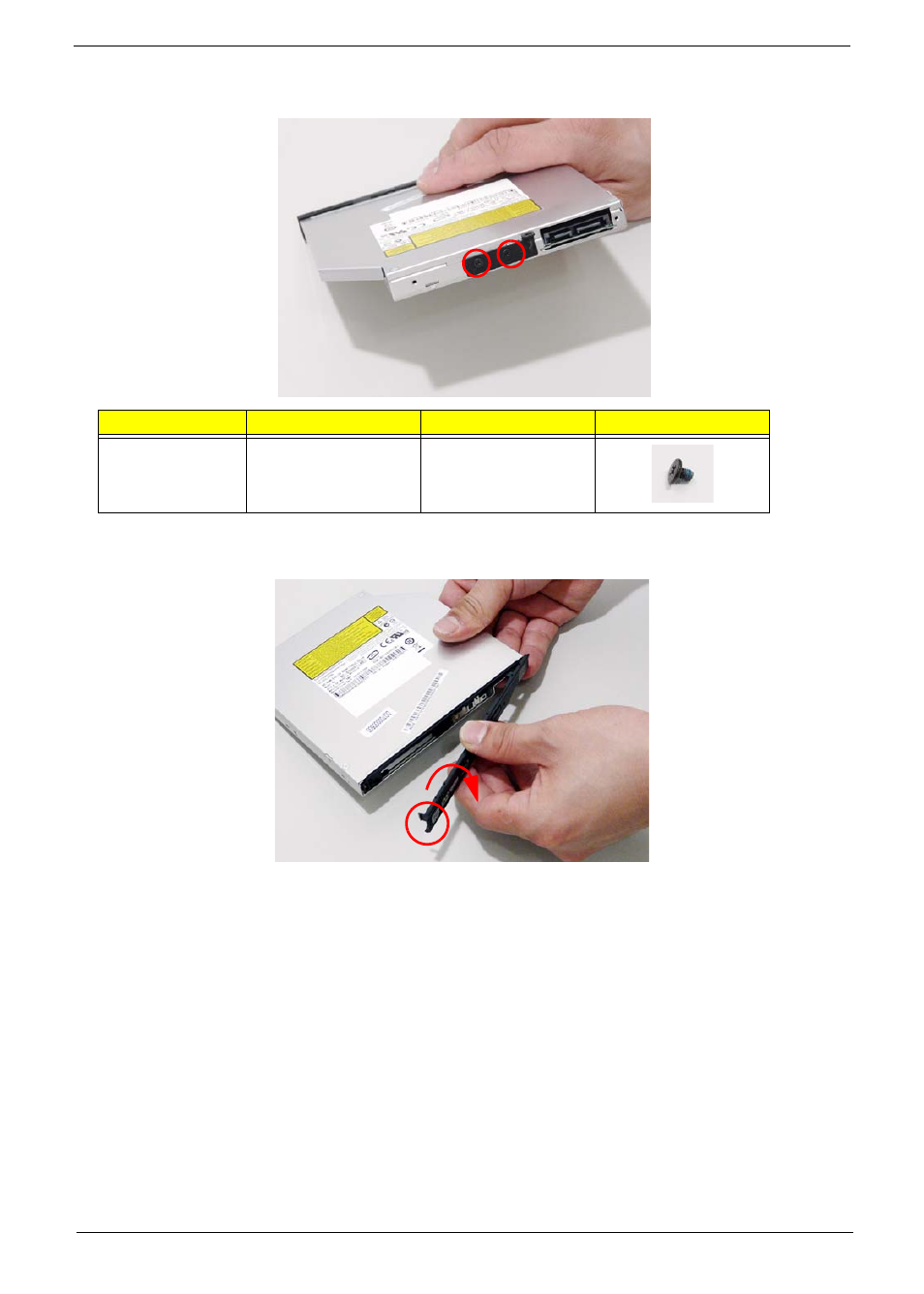

5. Remove the two screws securing the ODD bracket and remove the ODD bracket from the optical disk drive
module.
IMPORTANT:Do not remove the ODD bezel by pulling on it entirely or damage will occur.
6. Grasp the edge of the bezel and firmly pry the top edge down and outward to remove.
Step
Size
Quantity
Screw Type
ODD Bracket
M2*3
2
