Chapter 3
Removing the Mainboard
1. See “Removing the Upper Cover” on page 68.
2. Remove the Bluetooth Module. See “Removing the Bluetooth Module” on page 77.

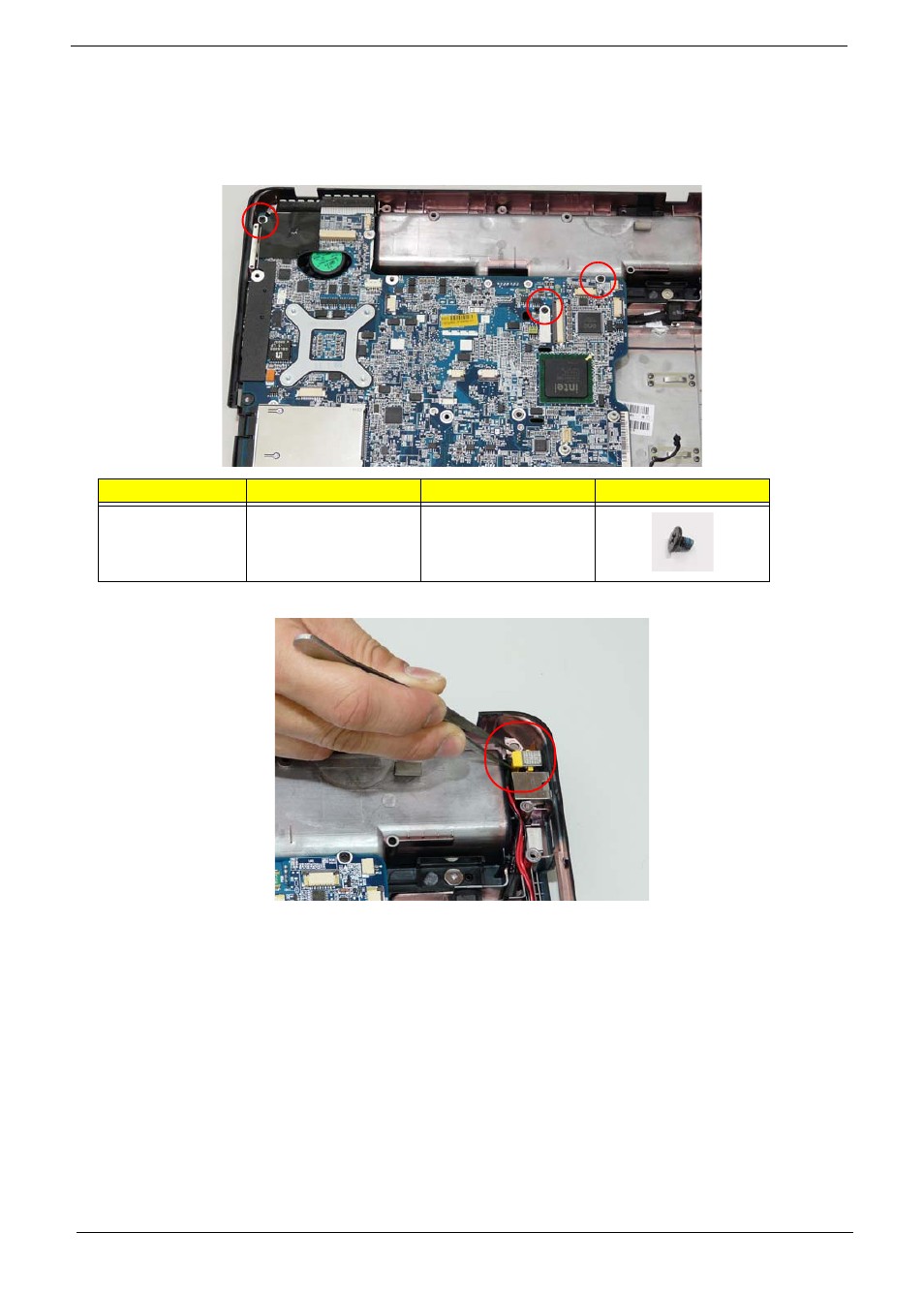

3. Remove the three securing screws.
4. Remove the DC-IN jack from its socket.
Step
Size
Quantity
Screw Type
Mainboard
M2*3
3
