Removing the Power Board

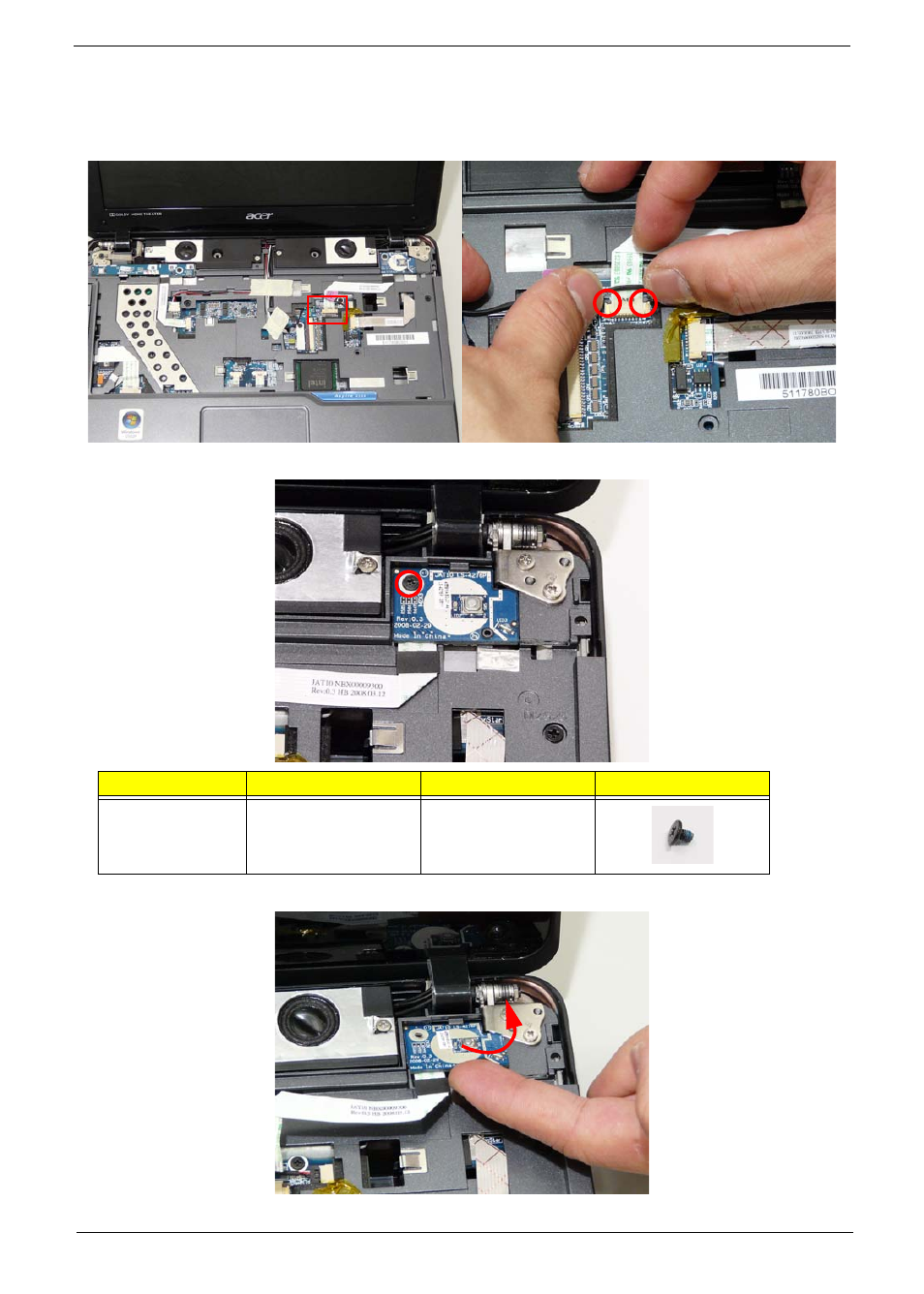

1. Remove the Keyboard. See “Removing the Keyboard” on page 59.
2. Unlock the FFC connector and remove the FFC.
3. Remove the single securing screw.
4. Using your finger lift the bottom side of the Power Board to remove.
Step
Size
Quantity
Screw Type
Power Board
M2*3
1
