Acer 2930 User Manual
Page 132
122
Chapter 3
Replacing the ODD Module
Replacing the Lower Covers

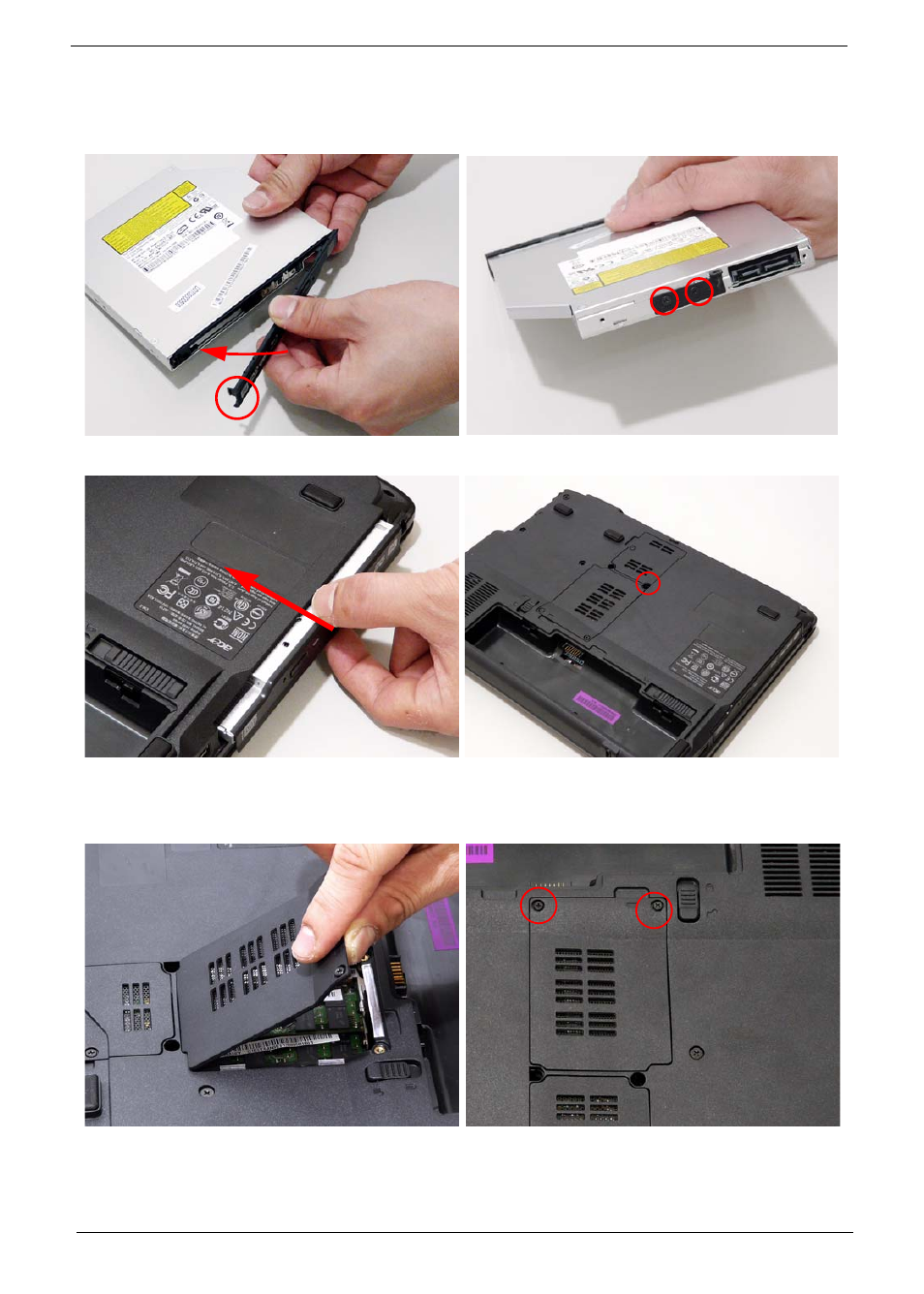

1. Insert the bezel into the module as shown.
2. Turn the ODD Module around and secure the
bracket with the two screws, as provided.
3. Insert the ODD module into the bay as shown.
4. Replace the single securing screw.
1. Replace the Memory Cover.
2. Tighten the two securing screws.
