Removing the LED Board

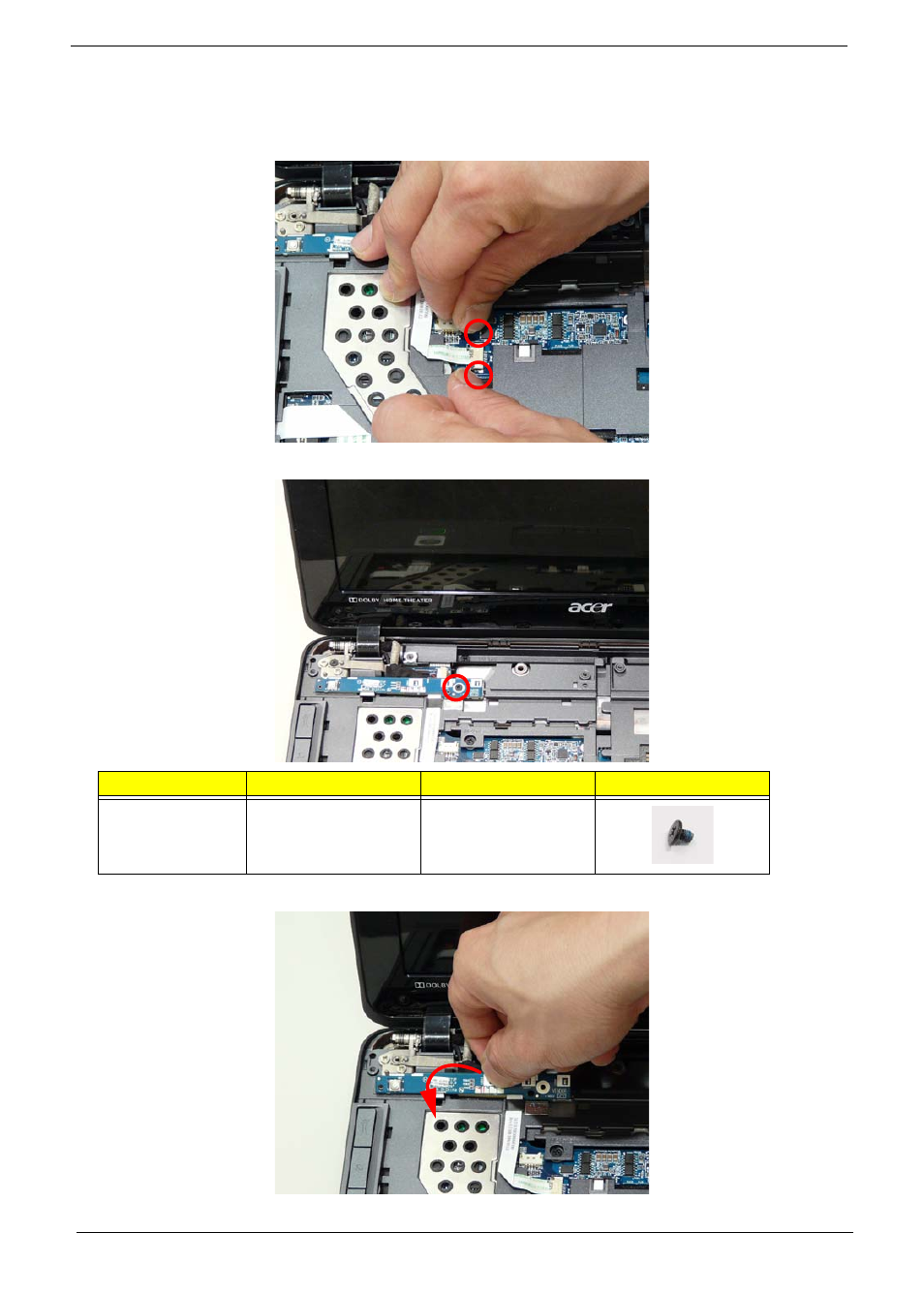

1. Remove the Keyboard. See “Removing the Keyboard” on page 59.
2. Unlock the FFC connector and remove the FFC.
3. Remove the single securing screw.
4. Grasp the top side of the LED Board and pivot upwards to remove.
Step
Size
Quantity
Screw Type
LED Board
M2*3
1
