Chapter 3
Replacing the Mainboard

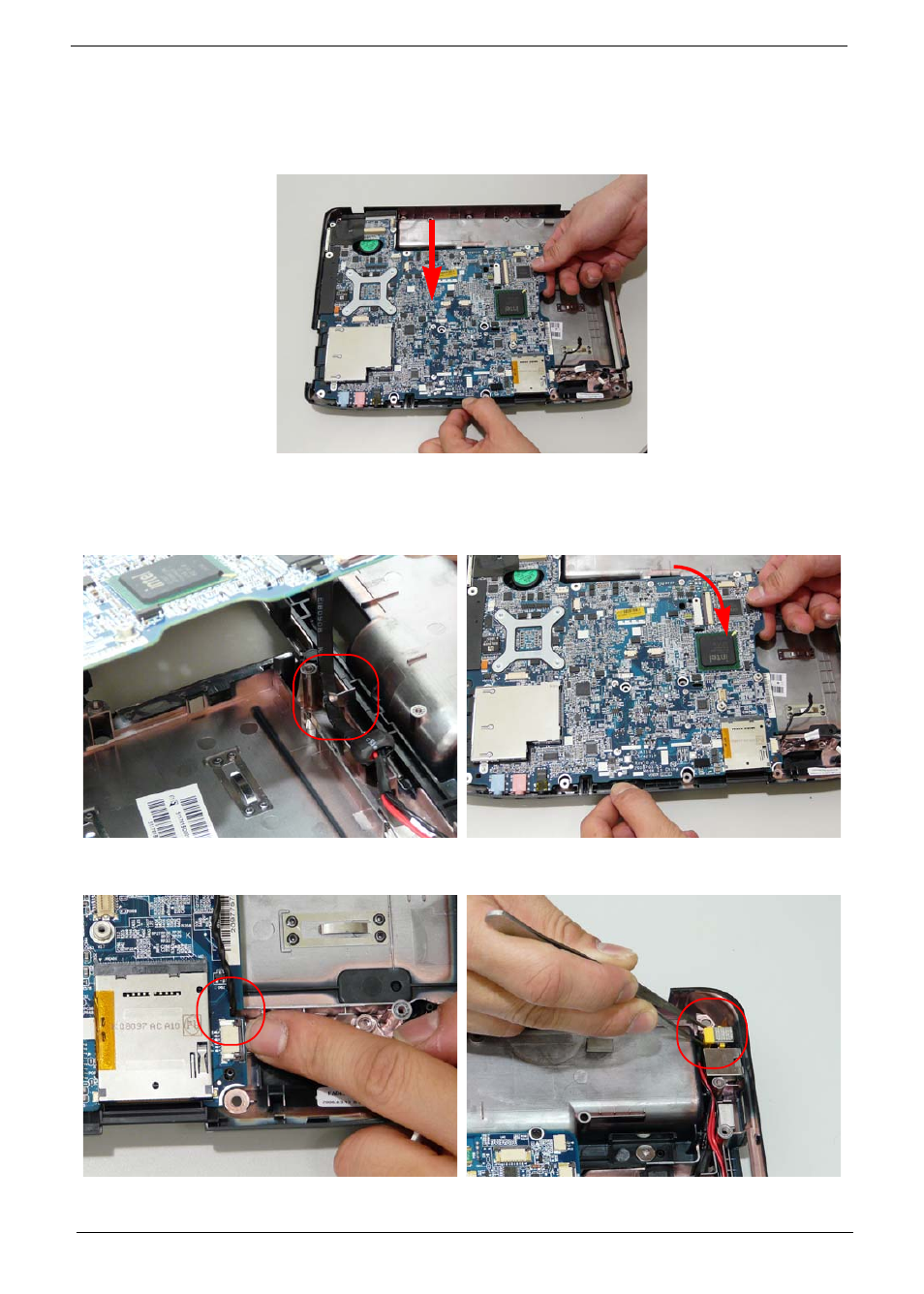

1. Ensure that the Mainboard is facing down (the Heatsink and CPU are not visible). Place the Mainboard in
the chassis, making sure the I/O ports are positioned correctly through the lower cover, and the screw
sockets are visible through the mainboard.
2. Before lowering the mainboard completely into
place, take note of the DC-IN cable. Ensure it sits in
the housing well as shown.
3. Pull the bottom of the chassis slightly outward to
allow the I/O ports room for clearance. Lower the
mainboard and release the lower cover.
4. Connect the modem cable to the mainboard as
shown.
5. Replace the DC-In jack as shown.
