Replacing the rj-11 jack – Acer 2930 User Manual
Page 115
Chapter 3
105

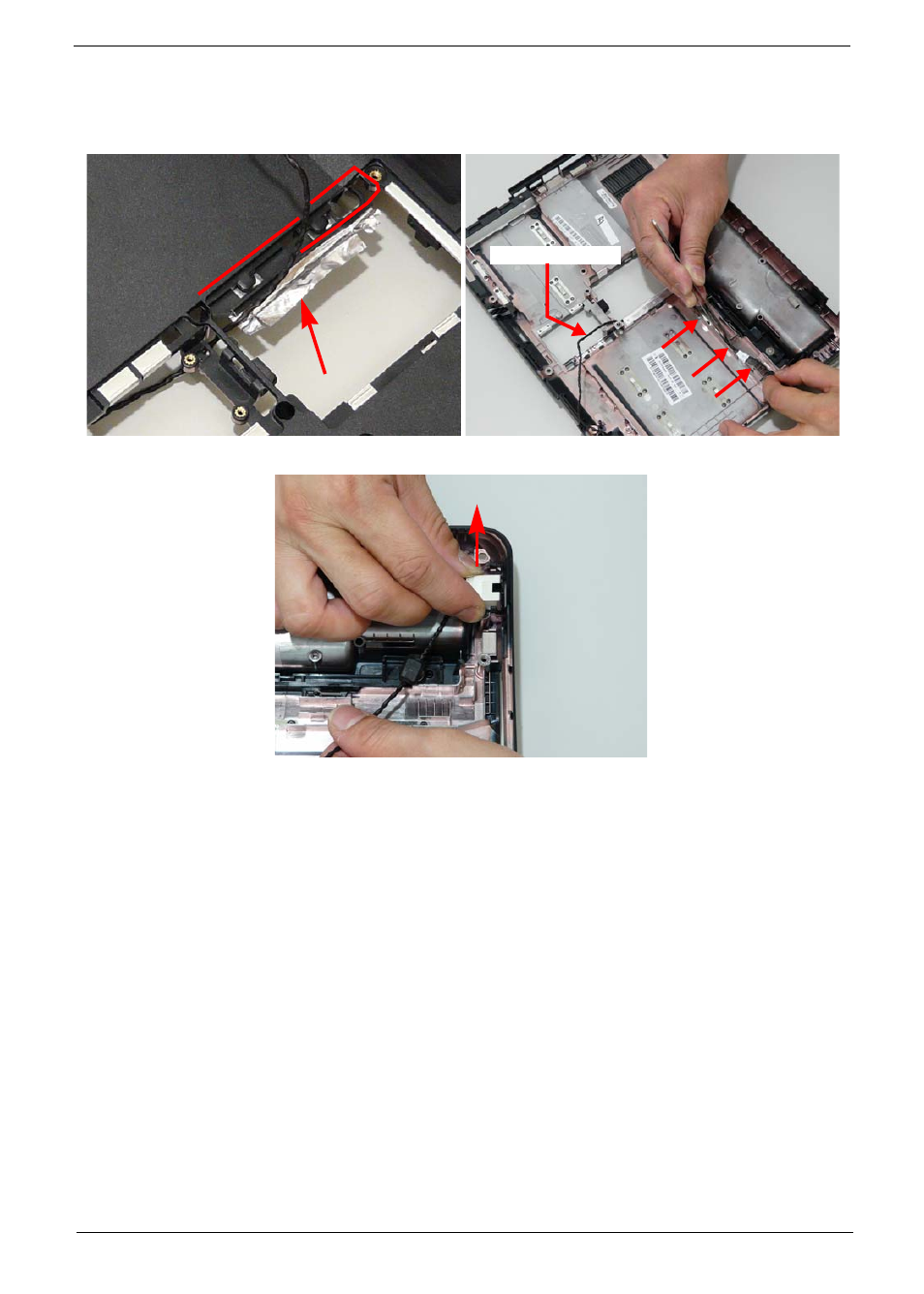

Replacing the RJ-11 Jack
1. Insert the RJ-11 cable through the housing well
and replace the cable cover to secure in place.
2. Turn the base over, and insert the cables along the
well in the bottom cover as shown.
3. Replace the RJ-11 Jack and tuck in cabling in the housing well to prevent damage.
RJ-11 cabling
