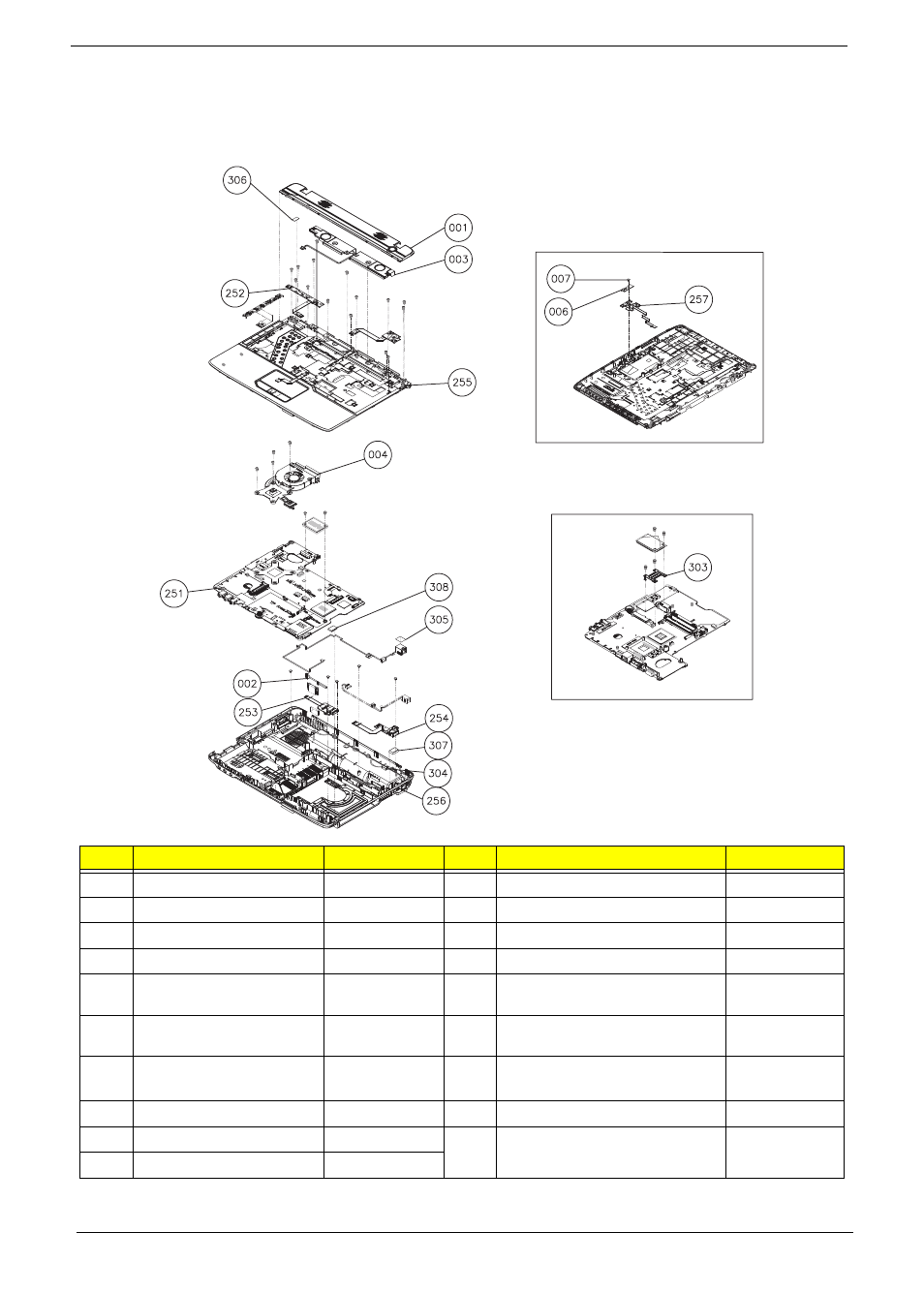

Aspire 2930 Exploded Diagrams
Upper/ Lower Cover
No. Description Part Number No. Description Part Number
001 Strip Cover 42.ART02.001 255 Upper Case 60.APY02.001
002 RJ-11 Module 50.ART02.004 256 Lower Case 60.ART02.002
003 Speaker 23.ART02.001 257 F/P Board 55.APY02.001
004 Thermal Unit 60.ART02.006 303 MINI_EXP_CARD_BRK 33.ART02.001
006 ROBIN_THM_ADDA_3PH
ASE_FAN N/A 304 SPEAKER_GASKET N/A
007 ROBIN_THM_SUNON_3P
HASE_FAN N/A 305 RJ11_GASKET N/A
251 Mainboard w/dock
Mainboard wo/dock
MB.ART02.001
MB.ART02.001
306 EMI_LOGIC_UP_FOIL_2 N/A
252 E Button Board 55.ART02.001 307 IO_USB_GASKET N/A
253 USB Board 55.ART02.005 308 USB_GASKET N/A
254 I/O Board 55.ART02.004
