Removing the camera module – Acer 2930 User Manual
Page 102
92
Chapter 3

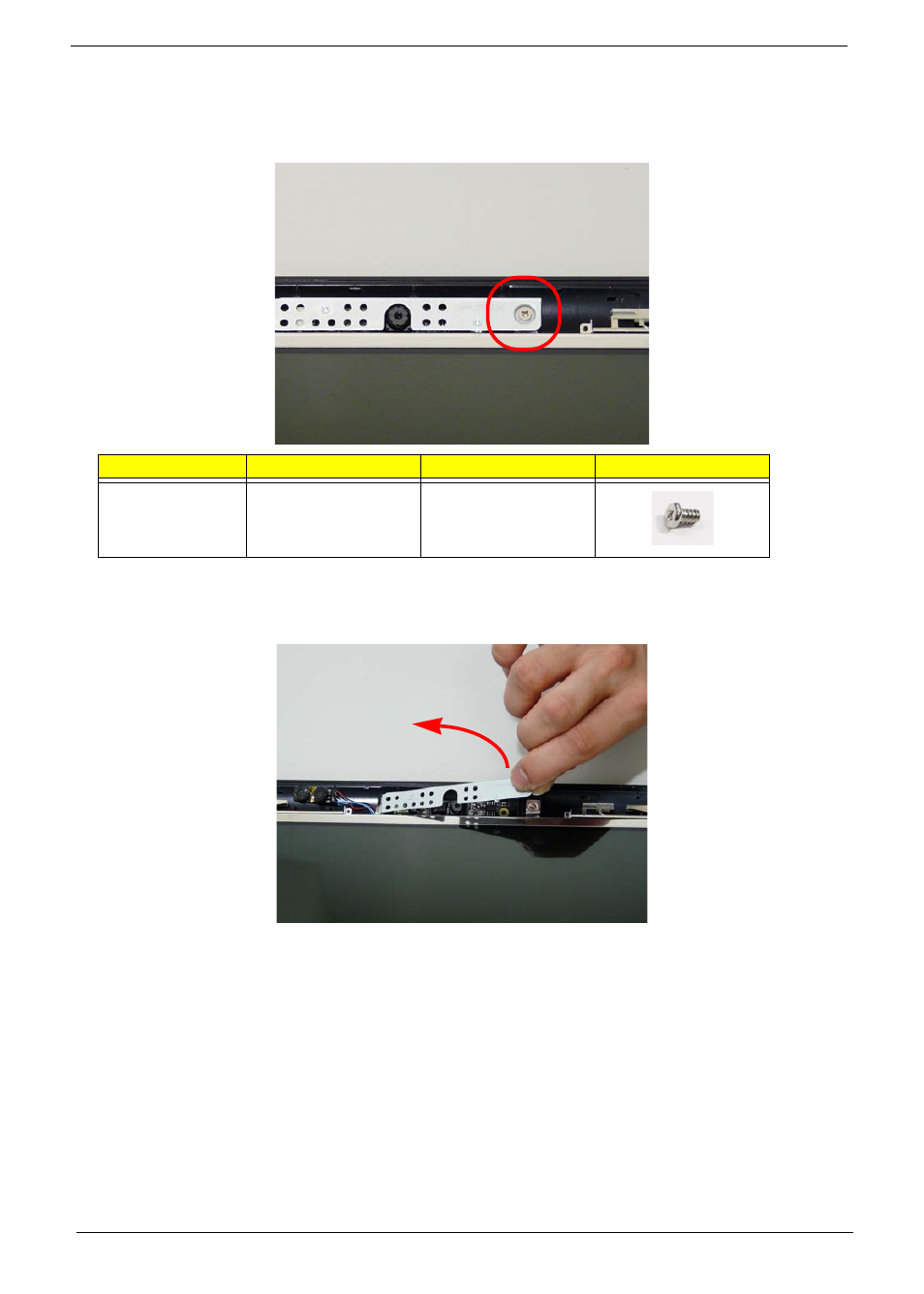

Removing the Camera Module
1. Remove the LCD Bezel. See “Removing the LCD Bezel” on page 88.
2. Remove the single securing screw.
IMPORTANT:Be careful when using a sharp tool to remove the cable or camera module. The surface of the
LCD panel can be easily scratched.
3. Remove the bracket from the back cover.
Step
Size
Quantity
Screw Type
Camera Module
M2.5*4
1
