Chapter 3
Replacing the TouchPad Bracket
IMPORTANT:The TouchPad cannot be removed individually. To replace the TouchPad, replace the entire
Upper Cover.

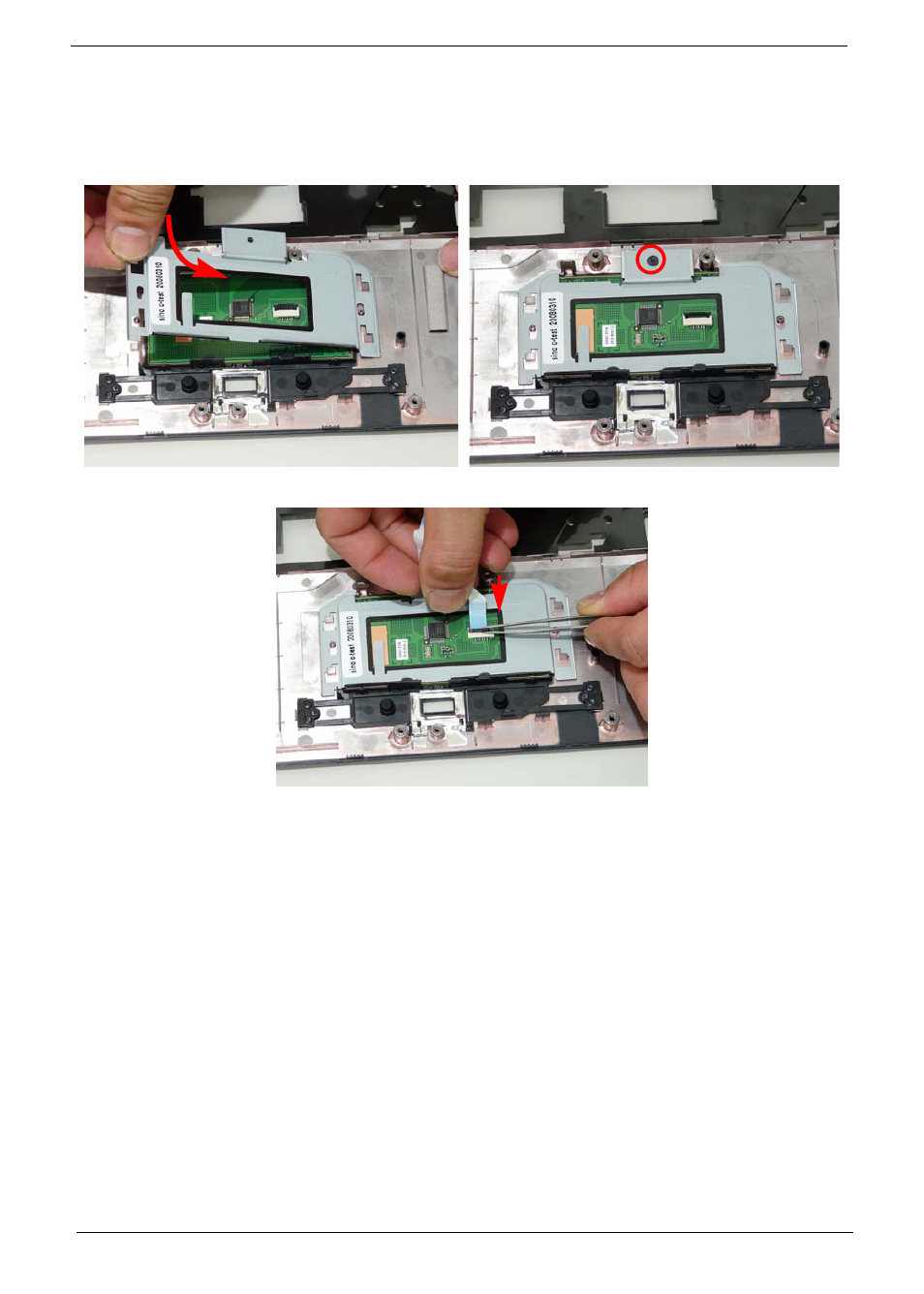

1. Insert the bracket at an angle as shown.
2. Replace the single securing screw.
3. Insert the FFC flush with the connector and lock the securing latch.
