Removing the inverter board – Acer 2930 User Manual
Page 100
90
Chapter 3

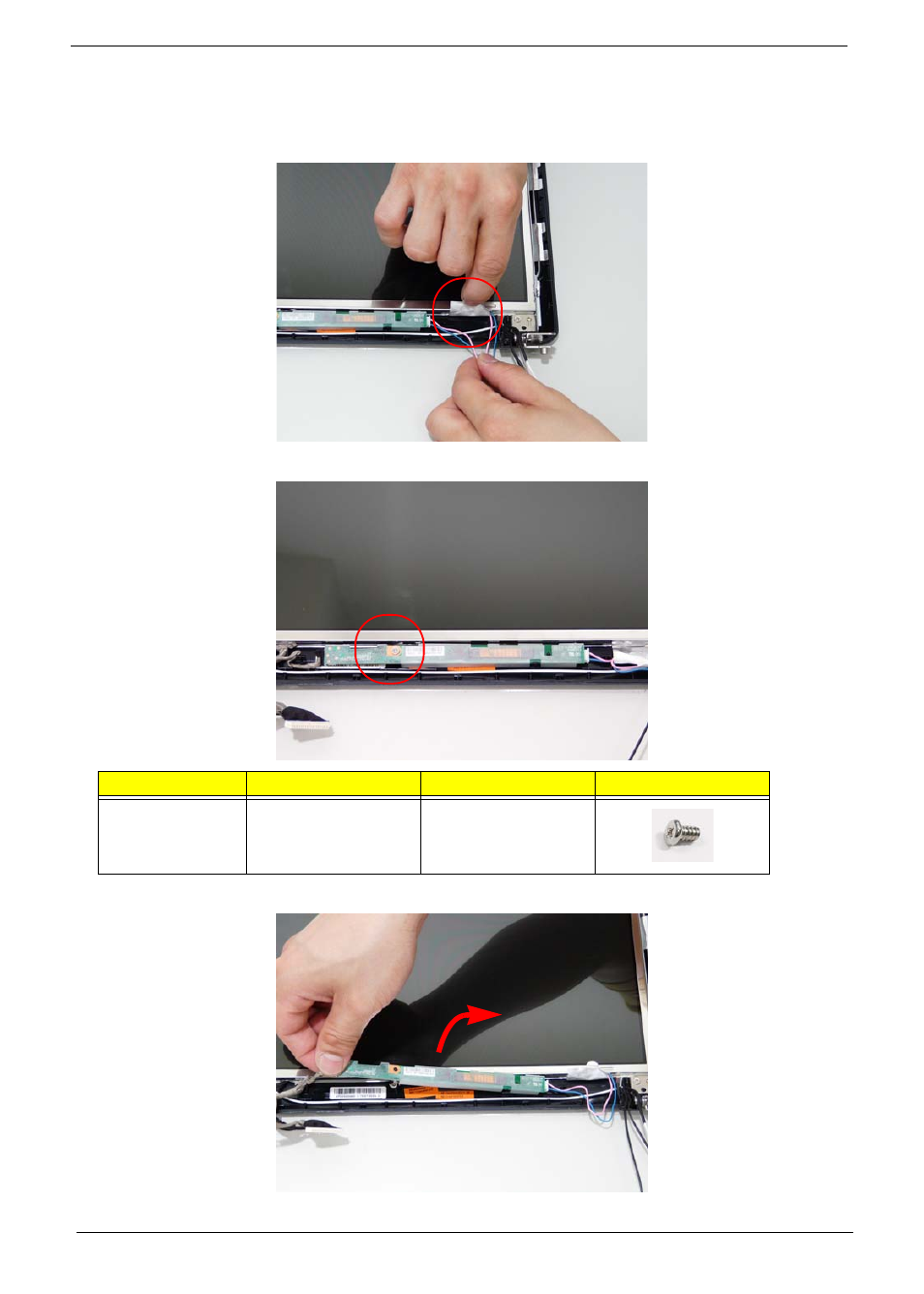

Removing the Inverter Board
1. Remove the LCD Bezel. See “Removing the LCD Bezel” on page 88.
2. Pull back the adhesive strip to expose the cabling.
3. Remove the single securing screw.
4. Lift the Inverter board clear of the LCD Module.
Step
Size
Quantity
Screw Type
Inverter Board
M2.5*4
1
