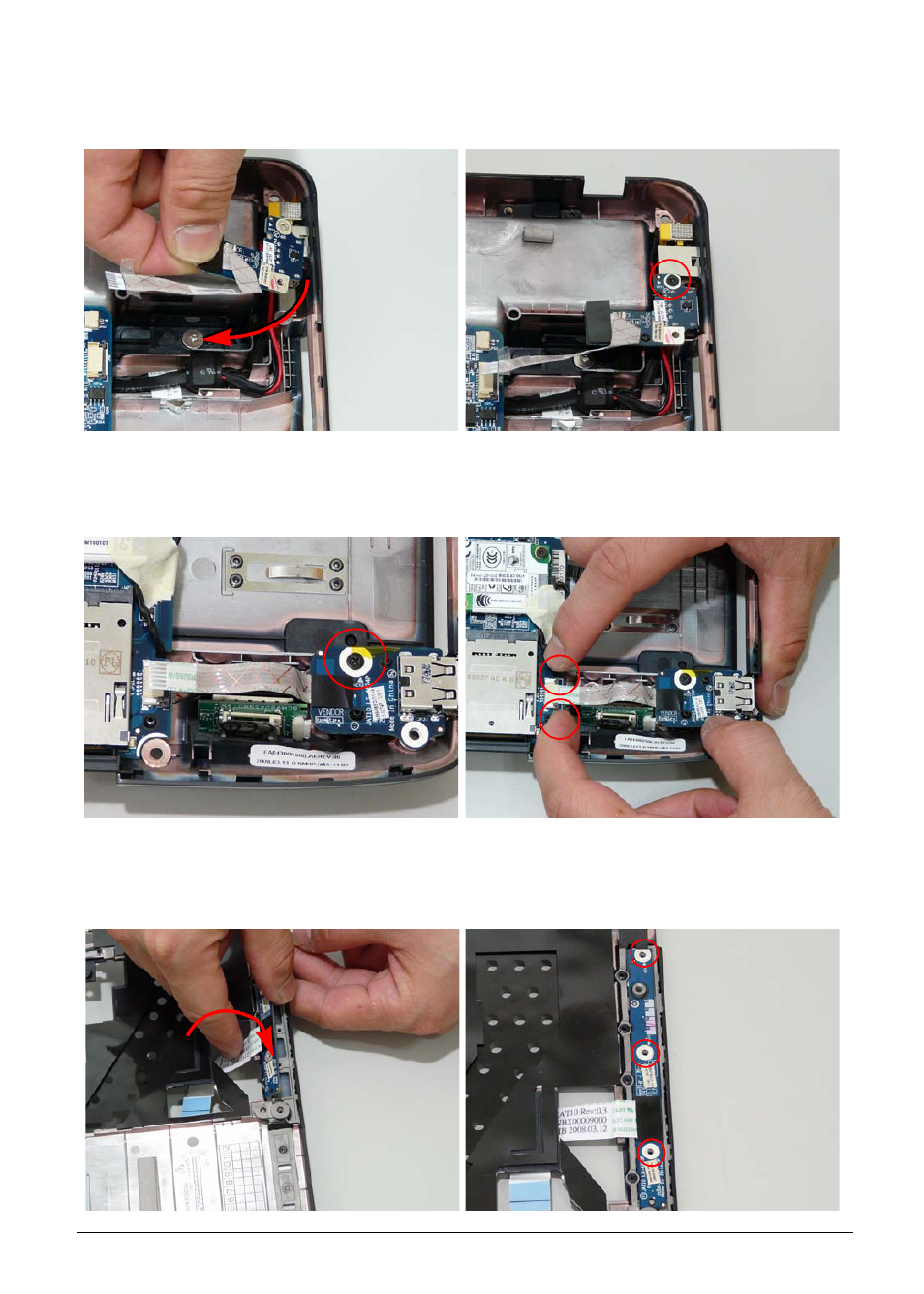

Replacing the I/O Board
Replacing the USB Board
Replacing the Launch Board
1. Insert the board at an angle, pivot and set it down
in place.
2. Replace the single securing screw.
1. Align the USB board with the screw socket and
replace the single securing screw.
2. Replace the FFC in connector and lock the
securing latches to hold the FFC in place.
1. Replace the Launch Board in the bracket. Ensure
that the FFC passes though the Upper Cover.
2. Replace the three securing screws.
